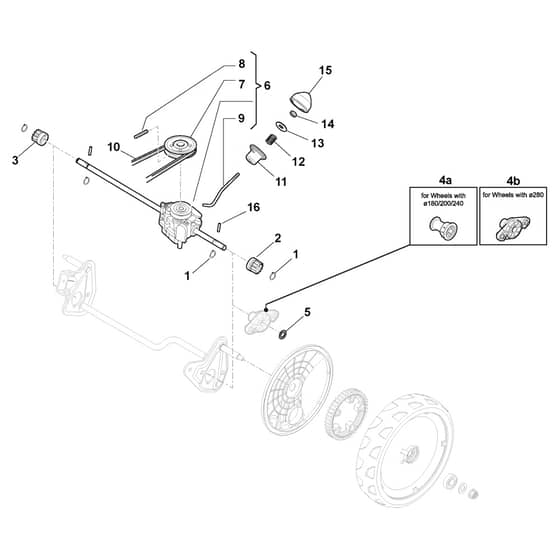

XC 53 HSW - 2013 - 295546033/C13 - Castel Garden Rotary Mower Transmission Diagram

Description

Castel Garden XC 53 HSW Parts Diagram

Product Name - CSC 534 WSQ

Model Year - 2013

Model Type - CSC 534 WS

Art.N - 295546033/C13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112608600/0 In stock	Seeger	£1.55 £1.29
2	MO122570134/0 In stock	Left Pinion	£7.52 £6.27
3	MO122570133/0 In stock	Right Pinion	£7.52 £6.27
4	MO322042067/0 In stock	Bushing (4B) For wheels ø280	£4.22 £3.52
5	MO112521371/0 Available to backorder	Washer	£1.55 £1.29
6	MO181003092/0 In stock	Gear Box	£69.71 £58.09
7	MO122601909/0 In stock	Pulley From 01-9-2013	£5.64 £4.70
8	MO112645705/0 In stock	Elastic Pin ø5X32	£1.55 £1.29
9	MO122033283/0 In stock	Adjustment Rod	£4.66 £3.88
10	MO135064196/0 In stock	Belt	£9.35 £7.79
11	MO122041957/1 Available to backorder	Bushing	£1.55 £1.29
12	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
13	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
14	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
16	MO122753000/0 In stock	Pin	£1.55 £1.29
