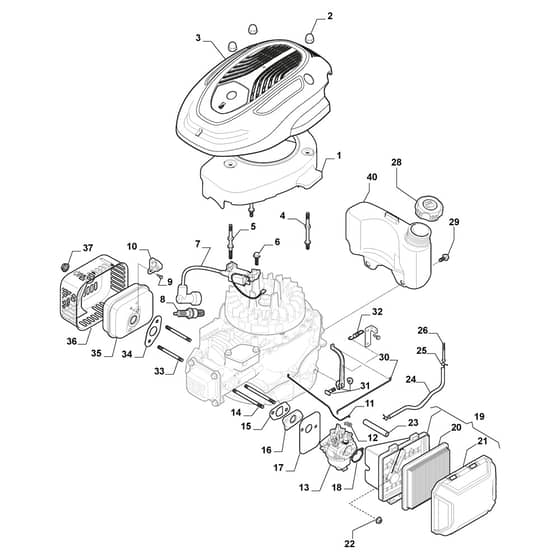

XC 48 SWE - 2019-2020 - 295496543/C19 - Castel Garden Rotary Mower Engine - Carburator, Tank Diagram

Description

Castel Garden XC 48 SWE Parts Diagram

Product Name - XC 48 SWE

Model Year - 2019-2020

Model Type - CSL 484 WSQE

Art.N - 295496543/C19

Engine Model -

	Part No.	Details
1	MO118551788/0 Available to backorder	Blower Housing	£39.42 £32.85
3	MO118551469/0 Available to backorder	Starter Assy	£27.31 £22.76
6	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
7	MO118551474/0 Available to backorder	Elettronic Coil	£49.57 £41.31
8	3381 In stock	Spark Plug (RC12YC)	£4.20 £3.50
9	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
10	MO118551456/0 In stock	Choke Control	£23.65 £19.71
11	MO118551459/0 Available to backorder	Control Rod	£8.38 £6.98
12	MO118551352/0 In stock	Retainer	£3.67 £3.06
13	MO118551450/1 In stock	Carburettor	£76.02 £63.35
15	MO118550929/0 In stock	Gasket	£1.55 £1.29
16	MO118550928/0 In stock	Insulator. Carburettor	£3.92 £3.27
17	MO118550927/0 In stock	Gasket	£4.78 £3.98
18	MO118551124/0 In stock	Gasket	£1.28 £1.07
19	MO118551462/0 Available to backorder	Air Cleaner Assy	£33.79 £28.16
20	MO118550257/0 In stock	Air Filter	£10.45 £8.71
21	MO118551463/0 Available to backorder	Air Cleaner Cover	£24.07 £20.06
22	MO112292102/0 In stock	Nut	£1.70 £1.42
23	MO118551479/0 Available to backorder	Breather Fuel Pipe	£7.66 £6.38
24	MO118551480/1 In stock	Fuel Pipe	£6.32 £5.27
25	MO118550918/0 In stock	Pipe Clip	£1.55 £1.29
26	MO118550314/0 In stock	Fuel Filter	£4.37 £3.64
28	MO118551455/0 In stock	Fuel Cap	£6.35 £5.29
29	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
30	MO118551457/0 Available to backorder	Governor Link	£7.62 £6.35
31	MO118550933/0 Available to backorder	Arm Governor	£6.19 £5.16
32	MO118551458/0 Available to backorder	Spring	£1.84 £1.53
33	MO118550930/0 Available to backorder	Stud Bolt	£5.76 £4.80
34	MO118550898/0 Available to backorder	Gasket. Muffler	£2.40 £2.00
35	MO118551465/0 Available to backorder	Muffler	£32.38 £26.98
36	MO118551466/0 Available to backorder	Muffler Guard	£23.81 £19.84
40	MO118551452/0 Available to backorder	Fuel Tank Assy	£42.22 £35.18
