XC 48 S Li - 2019-2020 - 295496063/C19 - Castel Garden Rotary Mower Deck Diagram

Name: XC 48 S Li - 2019-2020 - 295496063/C19 - Castel Garden Rotary Mower Deck Diagram
SKU: xc_48_s_li_295496063_c19_deck-group
Price: 1.16 GBP
Availability: InStock

Part No. xc_48_s_li_295496063_c19_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

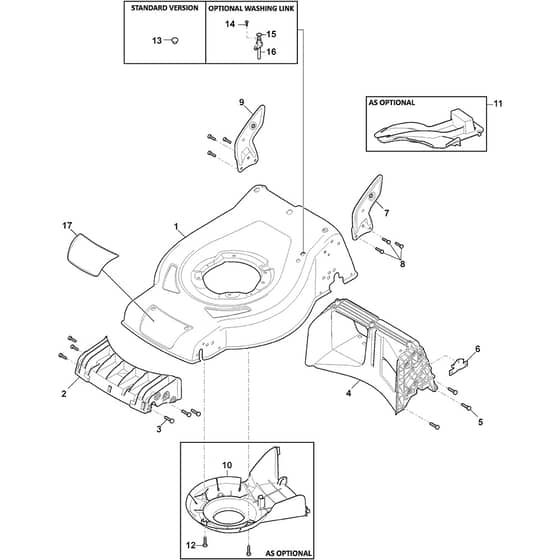

XC 48 S Li - 2019-2020 - 295496063/C19 - Castel Garden Rotary Mower Deck Diagram

Description

Castel Garden XC 48 S Li Parts Diagram

Product Name - XC 48 S Li

Model Year - 2019-2020

Model Type - CSL 480 WSV LI 60

Art.N - 295496063/C19

Engine Model -

	Part No.	Details
1	MO381004938/0 Available to backorder	Red Deck	£131.60 £109.67
2	MO322108301/2 Available to backorder	Front Conveyor Assy	£14.86 £12.38
4	MO322108392/0 Available to backorder	Rear Conveyor Assy From 01-9-2018	£20.40 £17.00
5	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
6	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
7	MO381005139/0 Available to backorder	Left Bracket	£6.64 £5.53
8	MO112727801/0 Available to backorder	Screw	£1.63 £1.36
9	MO381005137/0 Available to backorder	Right Bracket	£6.32 £5.27
10	MO322060242/2 In stock	Belt Protection As Optional From 01-9-2018	£11.54 £9.62
11	MO322140239/1 In stock	Mulching Deflector As Optional	£11.41 £9.51
12	MO112728903/0 In stock	Screw As Optional	£1.39 £1.16
13	MO322820077/1 Available to backorder	Cap	£1.55 £1.29
14	MO112728450/0 In stock	Screw	£1.55 £1.29
15	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
16	MO322034002/0 In stock	Washing Connection	£1.70 £1.42
17	MO322055605/0 Available to backorder	Front Deck Insert [Cs48] Black	£3.10 £2.58
