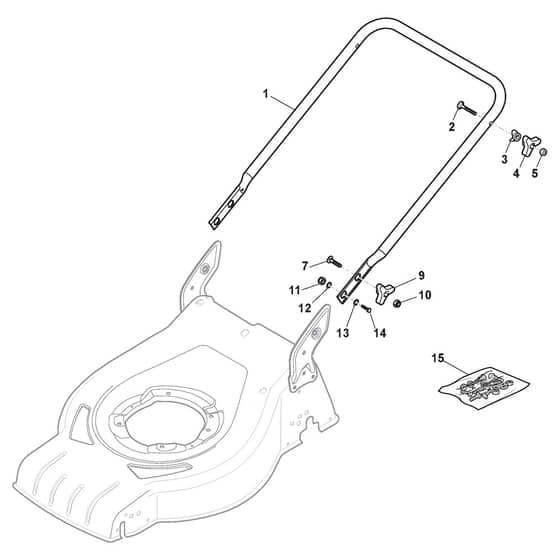

XC 48 GW4 - 2013-2015 - 295495843/C13 - Castel Garden Rotary Mower Handle Lower Part Diagram

Name: XC 48 GW4 - 2013-2015 - 295495843/C13 - Castel Garden Rotary Mower Handle Lower Part Diagram
SKU: xc_48_gw4_295495843_c13_handle_lower_part-group
Price: 1.16 GBP
Availability: InStock

Part No. xc_48_gw4_295495843_c13_handle_lower_part-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XC 48 GW4 - 2013-2015 - 295495843/C13 - Castel Garden Rotary Mower Handle Lower Part Diagram

Description

Castel Garden XC 48 GW4 Parts Diagram

Product Name - XC 48 GW4

Model Year - 2013-2015

Model Type - CS 484 W

Art.N - 295495843/C13

Engine Model -

	Part No.	Details
1	MO381006785/0 In stock	Handle. Lower Part Black	£25.62 £21.35
2	MO112819110/0 In stock	Screw	£1.82 £1.52
3	MO122671651/0 In stock	Washer	£1.97 £1.64
7	MO112818900/0 In stock	Screw	£1.55 £1.29
9	MO122399900/0 In stock	Black Knob Black	£1.55 £1.29
10	MO112293200/0 In stock	Nut	£1.55 £1.29
11	MO112155000/0 In stock	Nut	£1.55 £1.29
12	MO112521350/0 In stock	Washer	£1.55 £1.29
13	MO112369500/0 In stock	Elastic Washer	£1.39 £1.16
14	MO112760605/0 In stock	Screw	£3.38 £2.82
15	MO381008691/0 In stock	Screws Assembly Kit	£8.59 £7.16
