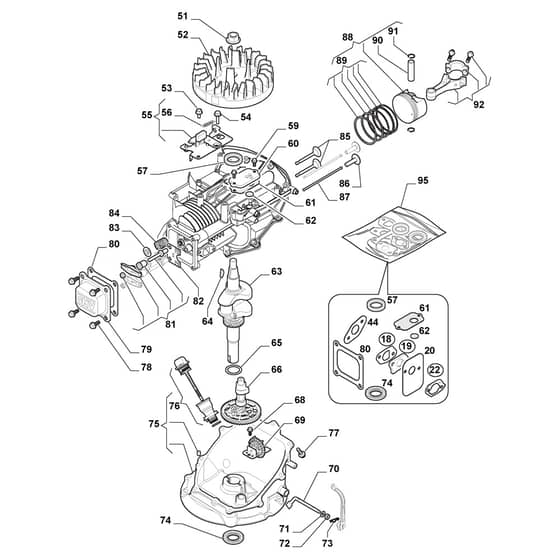

XC 48 GSW4 - 2016 - 295496843/C16 - Castel Garden Rotary Mower Loncin Engine WBE 140 02 Diagram

Description

Castel Garden XC 48 GSW4 Parts Diagram

Product Name - XC 48 GSW

Model Year - 2016

Model Type - CS 484 WSQ

Art.N - 295496843/C16

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550929/0 In stock	Gasket	£1.55 £1.29
19	MO118550928/0 In stock	Insulator. Carburettor	£3.94 £3.28
20	MO118550927/0 In stock	Gasket	£4.61 £3.84
22	MO118550924/0 In stock	Gasket	£1.69 £1.41
44	MO118550898/0 Available to backorder	Gasket. Muffler	£2.30 £1.92
51	MO118550336/0 Available to backorder	Nut	£6.05 £5.04
52	MO118550905/0 Available to backorder	Flywheel Ass.Y	£80.12 £66.77
53	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
55	MO118551483/0 Available to backorder	Flywheel Brake.Stop Switch Assy	£39.42 £32.85
57	MO118550300/0 Available to backorder	Oil Seal	£7.25 £6.04
62	MO118550902/0 Available to backorder	Valve	£1.97 £1.64
63	MO118550889/0 Available to backorder	Crankshaft	£94.81 £79.01
64	MO118550288/0 Available to backorder	Woodruff Key	£6.20 £5.17
65	MO118550283/0 Available to backorder	Washer	£3.38 £2.82
66	MO118550890/0 Available to backorder	Camshaft Assy	£30.97 £25.81
68	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
69	MO118550888/0 Available to backorder	Speed Governor Assy	£16.61 £13.84
70	MO118550936/0 Available to backorder	Shaft. Governor Arm	£6.47 £5.39
74	MO118550379/0 In stock	Oil Seal	£6.76 £5.63
76	MO118550887/0 Available to backorder	Tank Cap	£10.98 £9.15
77	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
78	MO112791213/1 In stock	Screw	£1.55 £1.29
79	MO118550891/0 Available to backorder	Cover Comp. Head	£13.44 £11.20
80	MO118550892/0 In stock	Packing Head Cover	£3.24 £2.70
81	MO118550893/0 Available to backorder	Valve Arm Set	£13.16 £10.97
85	MO118550910/0 Available to backorder	Valve Assy. Intake + Exhaust	£21.54 £17.95
86	MO118550291/0 Available to backorder	Valve Lifter Assy	£9.72 £8.10
87	MO118550912/0 Available to backorder	Push Rod	£7.19 £5.99
88	MO118550939/0 Available to backorder	Piston Assy	£44.76 £37.30
89	MO118550913/0 Available to backorder	Piston. Ring Set	£21.83 £18.19
90	MO118550915/0 Available to backorder	Piston Pin	£5.35 £4.46
91	MO118550914/0 Available to backorder	Washer. Piston Pin	£1.55 £1.29
92	MO118550916/0 Available to backorder	Connecting Rod Assy	£25.20 £21.00
95	MO118550940/0 Available to backorder	Engine Gasket Set	£25.34 £21.12
