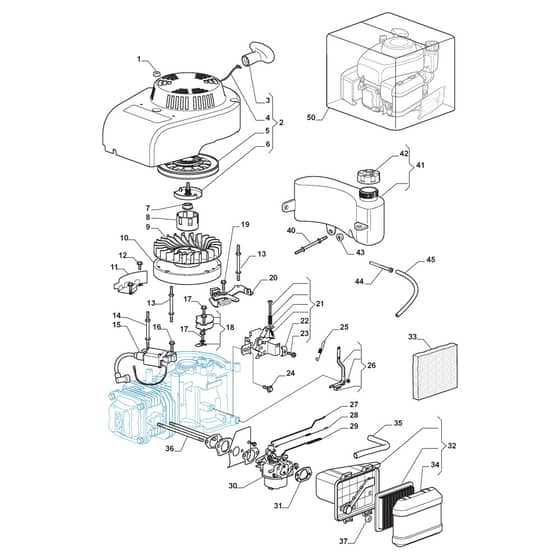

XC 48 GSW4 - 2013-2015 - 295496843/C13 - Castel Garden Rotary Mower Engine-ST. WBE0702 Diagram

Name: XC 48 GSW4 - 2013-2015 - 295496843/C13 - Castel Garden Rotary Mower Engine-ST. WBE0702 Diagram
SKU: xc_48_gsw4_295496843_c13_engine_st_wbe0702-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XC 48 GSW4 - 2013-2015 - 295496843/C13 - Castel Garden Rotary Mower Engine-ST. WBE0702 Diagram

Description

Castel Garden XC 48 GSW4 Parts Diagram

Product Name - XC 48 GSW4

Model Year - 2013-2015

Model Type - CS 484 WSQ

Art.N - 295496843/C13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO118550276/1 In stock	Starter Assy	£52.08 £43.40
3	MO118550274/0 Available to backorder	Starter Handle	£15.48 £12.90
4	MO118550779/0 Available to backorder	Starting Rope	£7.19 £5.99
5	MO118550778/0 Available to backorder	Starter Pulley	£26.88 £22.40
6	MO118550275/1 In stock	Starter Pawl Set	£12.25 £10.21
7	MO118550336/0 Available to backorder	Nut	£6.05 £5.04
8	MO118550335/0 Available to backorder	Starter Cup	£22.52 £18.77
9	MO118550254/0 Available to backorder	Flywheel Fan	£19.99 £16.66
10	MO118550253/0 Available to backorder	Flywheel Ass.Y	£91.58 £76.32
11	MO118550774/0 Available to backorder	Guard	£7.20 £6.00
13	MO118550302/0 Available to backorder	Stud Bolt	£7.51 £6.26
14	MO118550301/0 Available to backorder	Stud Bolt	£6.62 £5.52
15	MO118550255/1 In stock	Electronic Coil	£51.16 £42.63
17	MO112790500/0 Available to backorder	Screw	£1.97 £1.64
18	MO118550378/0 Available to backorder	Gasket Assy	£20.83 £17.36
19	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
20	MO118550376/0 Available to backorder	Flywheel Brake Assy	£37.72 £31.43
21	MO118550259/0 Available to backorder	Remote Control Assy	£29.56 £24.63
23	MO118550338/0 Available to backorder	Screw	£7.03 £5.86
24	MO112791213/1 In stock	Screw	£1.55 £1.29
25	MO118550260/0 In stock	Spring	£3.94 £3.28
26	MO118550266/0 Available to backorder	Arm Governor Assy	£15.07 £12.56
27	MO118550397/0 Available to backorder	Governor Link	£2.95 £2.46
28	MO118550263/0 Available to backorder	Spring	£2.81 £2.34
29	MO118550264/0 In stock	Choke Control Rod	£3.52 £2.93
30	MO118550390/0 In stock	Carburetor	£76.72 £63.93
31	MO118550738/0 In stock	Air Filter Gasket	£6.34 £5.28
32	MO118550737/0 In stock	Air Cleaner Assy	£23.65 £19.71
33	MO118550452/0 In stock	Air Filter	£8.59 £7.16
34	MO118550739/0 In stock	Air Cleaner Cover	£7.52 £6.27
35	MO118550377/0 Available to backorder	Breather Fuel Pipe	£4.50 £3.75
36	MO118550298/0 Available to backorder	Stud Bolt	£6.76 £5.63
40	MO118550315/0 Available to backorder	Stud Bolt	£7.74 £6.45
41	MO118550316/1 Available to backorder	Fuel Tank	£42.23 £35.19
42	MO118552820/0 In stock	Fuel Cap	£6.34 £5.28
43	MO112292102/0 In stock	Nut	£1.69 £1.41
44	MO118550314/0 In stock	Fuel Filter	£4.37 £3.64
45	MO118550340/0 In stock	Fuel Pipe	£6.34 £5.28
50	MO118550407/1 Available to backorder	Complete Engine Assembled	£275.83 £229.86
