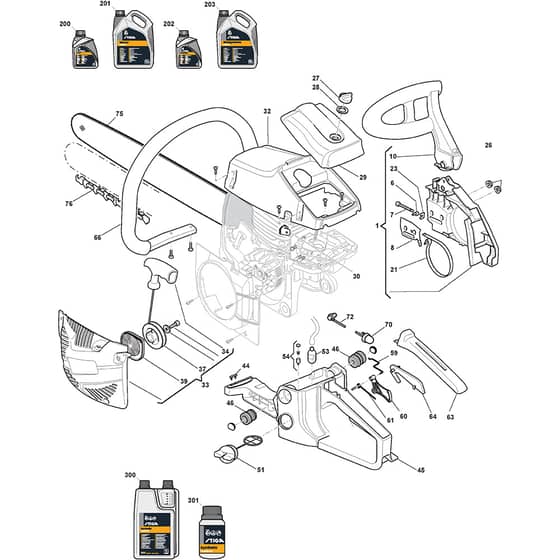

XC 4500 - 2010-2012 - 228318003/10 - Castel Garden Chainsaw Housing Diagram

Name: XC 4500 - 2010-2012 - 228318003/10 - Castel Garden Chainsaw Housing Diagram
SKU: xc_4500_228318003_10_housing-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XC 4500 - 2010-2012 - 228318003/10 - Castel Garden Chainsaw Housing Diagram

Description

Castel Garden XC 4500 Parts Diagram

Product Name - XC 4500

Model Year - 2010-2012

Model Type - A 4500

Art.N - 228318003/10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details

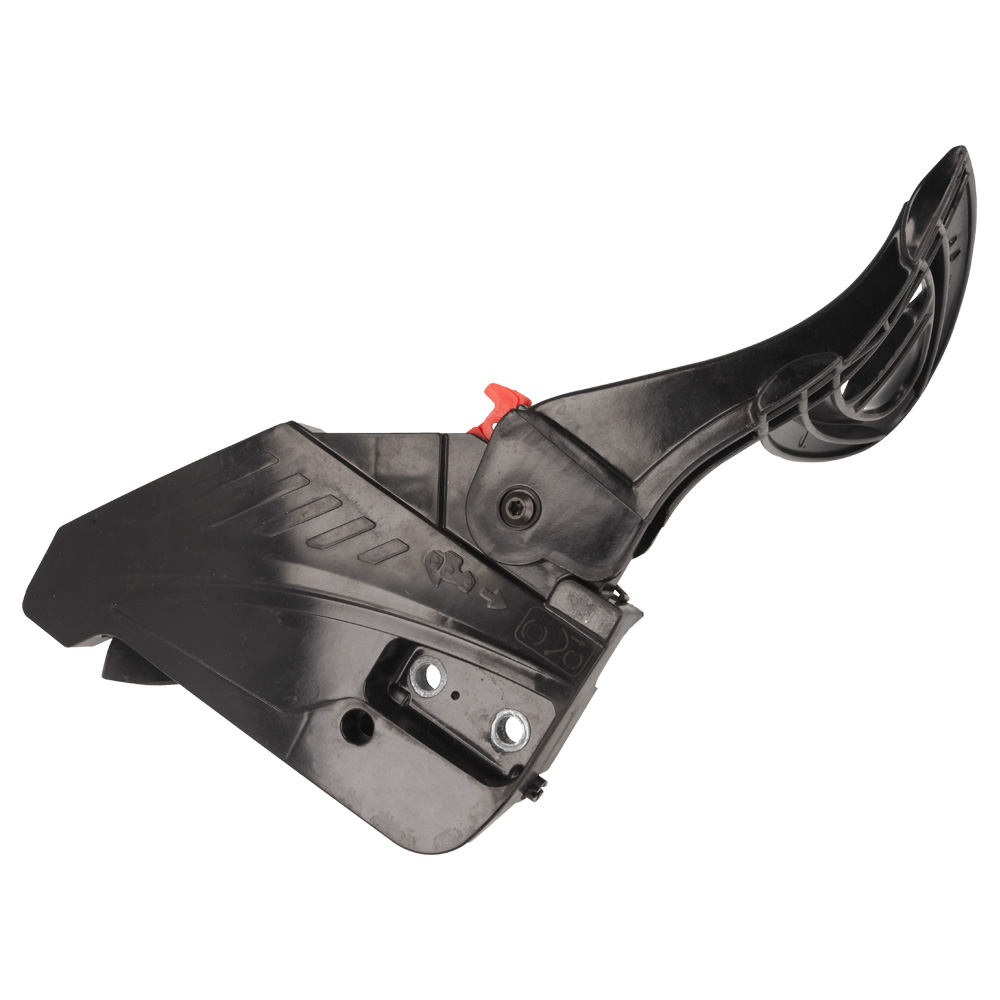

1	MO118800160/0 Available to backorder	Clutch Ho. W.Br. Assy Black	£43.64 £36.37
6	MO118800161/0 Available to backorder	Chain Tightener Block	£1.28 £1.07
7	MO118805098/0 Available to backorder	Tensioner Screw	£4.50 £3.75
8	MO118800163/0 Available to backorder	Bar Plate	£2.95 £2.46

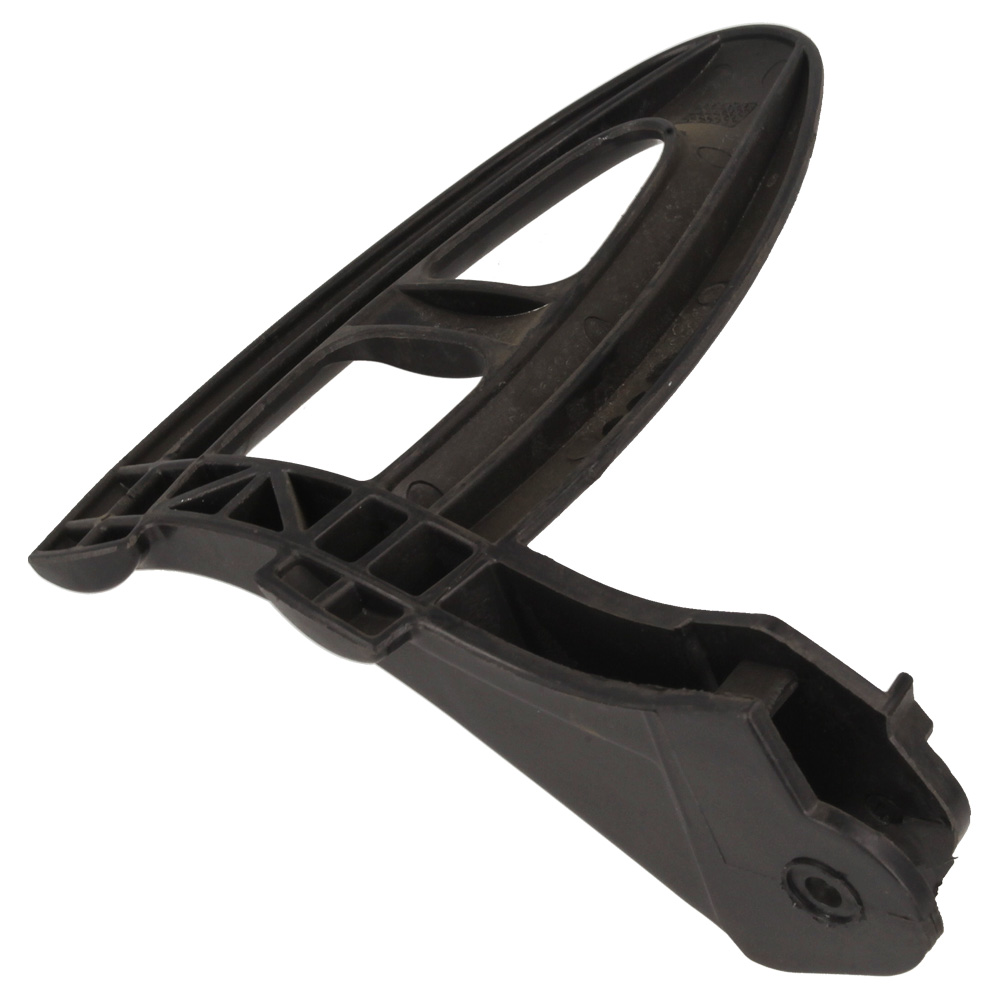

10	MO118800164/0 Available to backorder	Hand Guard	£6.76 £5.63
21	MO118800165/0 Available to backorder	Brake Band	£1.40 £1.17
23	MO118800166/0 Available to backorder	Plate	£1.33 £1.11
26	MO118800186/0 Available to backorder	Nut	£1.55 £1.29
27	MO118800167/0 Available to backorder	Air Filter Lock Nut	£2.40 £2.00
28	MO118800258/0 Available to backorder	Washer	£1.33 £1.11
29	MO118800238/0 Available to backorder	Filter Cover Red	£7.39 £6.16
30	MO118800270/0 Available to backorder	Grommet	£1.33 £1.11
32	MO118800240/0 Available to backorder	Cylinder Cover Red	£15.62 £13.02
34	MO118800193/0 Available to backorder	Starter Handle	£2.26 £1.88
37	MO118800169/0 Available to backorder	Starter Pulley	£4.37 £3.64
39	MO118800280/0 Available to backorder	Starter Spring	£5.21 £4.34
44	MO118800170/0 Available to backorder	Shock Absorber	£1.33 £1.11
45	MO118800171/0 Available to backorder	Handle Assy. Black	£36.56 £30.47
46	MO118800172/0 Available to backorder	Shock Absorber	£2.81 £2.34
51	MO118800241/0 Available to backorder	Fuel Cap Assy	£3.38 £2.82
53	MO118800173/0 Available to backorder	Intake Filter Assy	£3.67 £3.06
54	MO118800175/0 Available to backorder	Breather Valve Ass.Y	£5.06 £4.22
59	MO118800174/0 Available to backorder	Throttle Rod	£3.79 £3.16
60	MO118800176/0 Available to backorder	Throttle Lever. Black	£1.33 £1.11
61	MO118800177/0 Available to backorder	Spring	£1.55 £1.29
63	MO118800178/0 Available to backorder	Handle Cover	£2.26 £1.88
64	MO118800179/0 Available to backorder	Safety Lever. Black	£1.55 £1.29
66	MO118800180/0 Available to backorder	Handle	£21.12 £17.60
72	MO118801150/0 Available to backorder	Tube	£2.12 £1.77
75	MO118800130/0 Available to backorder	Guide Bar 18"-.325"-0.058"	£46.90 £39.08
76	5058 In stock	Chain 18Inch	£11.70 £9.75
200	MO1111-9228-01 Available to backorder	Chain Oil Mineral 1Lt	£9.30 £7.75
201	MO1111-9229-01 Available to backorder	Chain Oil Mineral 5Lt	£42.41 £35.34
202	MO1111-9276-01 Available to backorder	Chain Oil Biodegradable 1Lt	£10.99 £9.16
203	MO1111-9247-01 Available to backorder	Chain Oil Biodegradable 5Lt	£50.98 £42.48
300	MO1111-9230-01 Available to backorder	2 Stroke Synthetic Oil 1L Dozer	£14.50 £12.08
301	MO1111-9231-01 Available to backorder	2 Stroke Synthetic 0.1 Lt	£3.00 £2.50
