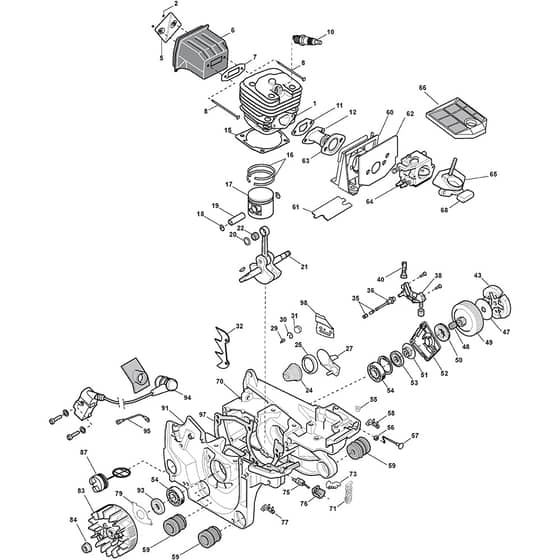

Castel Garden XC 4500 Parts Diagram

Product Name - XC 4500

Model Year - 2010-2012

Model Type - A 4500

Art.N - 228318003/10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118800217/0 Available to backorder	Cylinder Assy	£71.80 £59.83
2	MO2432040 Available to backorder	Nut	£1.33 £1.11
5	MO118550545/0 Available to backorder	Cover Plate	£2.81 £2.34
6	MO118550546/0 Available to backorder	Muffler	£38.00 £31.67
7	MO118550547/0 Available to backorder	Muffler Gasket	£1.33 £1.11
8	MO118550548/0 Available to backorder	Screw	£3.52 £2.93
10	9494 In stock	Spark Plug	£3.72 £3.10
11	MO118550549/0 Available to backorder	Intake Manifold Gasket	£1.33 £1.11
12	MO118550550/0 Available to backorder	Intake Manifold	£2.68 £2.23
15	MO118550551/0 Available to backorder	Cylinder Base Gasket	£1.33 £1.11
16	MO118550552/0 Available to backorder	Piston Ring	£3.79 £3.16
17	MO118800218/0 Available to backorder	Piston	£13.51 £11.26
18	MO118550553/0 Available to backorder	Washer. Piston Pin	£1.33 £1.11
19	MO118550554/0 Available to backorder	Piston Pin	£1.55 £1.29
20	MO118550555/0 Available to backorder	Retaining Ring	£2.12 £1.77
21	MO118550556/0 Available to backorder	Crankshaft	£45.04 £37.53
22	MO118550557/0 Available to backorder	Needle Bearing	£5.21 £4.34
25	MO118805097/0 Available to backorder	Support	£7.88 £6.57
27	MO118800221/0 Available to backorder	Chain Guard	£1.40 £1.17
29	MO118800222/0 Available to backorder	Breather Valve Ass.Y	£1.27 £1.06
30	MO118800223/0 Available to backorder	Retainer	£1.33 £1.11
31	MO118800224/0 Available to backorder	Cap	£1.40 £1.17
32	MO118550596/0 Available to backorder	Spike	£2.95 £2.46
35	MO118550558/0 Available to backorder	Oil Filter Ass.Y	£3.38 £2.82
36	MO118550559/0 Available to backorder	Pickup Oil	£2.81 £2.34
38	MO118550560/0 Available to backorder	Oil Pump Assy	£19.42 £16.18
40	MO118550561/0 Available to backorder	Oil Tube Outlet	£2.81 £2.34
43	MO118550562/0 Available to backorder	Clutch Ass.Y	£18.02 £15.02
47	MO118550563/0 Available to backorder	Washer	£1.55 £1.29
48	MO118550564/0 Available to backorder	Needle Bearing	£5.76 £4.80
49	MO118550565/0 Available to backorder	Clutch Drum Assy	£23.09 £19.24
50	MO118550566/0 Available to backorder	Sprocket 325" For chain pitch .325"	£12.98 £10.82
51	MO118550567/0 Available to backorder	Worm	£2.68 £2.23
52	MO118800226/0 Available to backorder	Oil Pump Cap	£1.97 £1.64
53	MO118550568/0 Available to backorder	Seal Ring	£3.79 £3.16
54	MO3112030 Available to backorder	Ball Bearing	£14.92 £12.43
55	MO118800227/0 Available to backorder	Grommet	£1.33 £1.11
56	MO118800228/0 Available to backorder	Grommet Air-Lever	£1.55 £1.29
57	MO118801155/0 Available to backorder	Choke Lever	£2.53 £2.11
58	MO118800230/0 Available to backorder	Plate	£1.33 £1.11
59	MO118550569/0 Available to backorder	Shock Absorber	£3.10 £2.58
60	MO118800231/0 Available to backorder	Intake Manifold Assy	£3.10 £2.58
61	MO118800232/0 Available to backorder	Guard	£1.33 £1.11
62	MO118550570/0 Available to backorder	Plate	£1.40 £1.17
63	MO118550571/0 Available to backorder	Tube Flange	£1.33 £1.11
65	MO118550573/0 Available to backorder	Intake Manifold Assy	£2.81 £2.34
66	MO118550574/0 Available to backorder	Air Filter	£6.05 £5.04
68	MO118800277/0 Available to backorder	Grommet	£1.33 £1.11
70	MO118805028/0 Available to backorder	Crank Case	£168.92 £140.77
71	MO118800225/0 Available to backorder	Case Dustcover	£1.33 £1.11
77	MO118800273/0 Available to backorder	Plate	£1.33 £1.11
79	MO118800276/0 Available to backorder	Plate	£2.95 £2.46
83	MO118550577/0 Available to backorder	Flywheel Ass.Y	£36.36 £30.30
84	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
87	MO118800233/0 Available to backorder	Oil Cap Assy	£2.26 £1.88
91	MO118800274/0 Available to backorder	Crank Case	£36.32 £30.27
93	MO118550578/0 Available to backorder	Seal Ring	£1.55 £1.29
94	MO118550579/0 Available to backorder	Electronic Coil	£37.72 £31.43
97	MO118550581/0 Available to backorder	Crankcase Gasket	£1.33 £1.11
98	MO118800275/0 Available to backorder	Bar Plate	£2.12 £1.77
