XC 43 Li - 2019-2020 - 295441063/C19 - Castel Garden Rotary Mower Deck Diagram

Name: XC 43 Li - 2019-2020 - 295441063/C19 - Castel Garden Rotary Mower Deck Diagram
SKU: xc_43_li_295441063_c19_deck-group
Price: 1.16 GBP
Availability: InStock

Part No. xc_43_li_295441063_c19_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XC 43 Li - 2019-2020 - 295441063/C19 - Castel Garden Rotary Mower Deck Diagram

Description

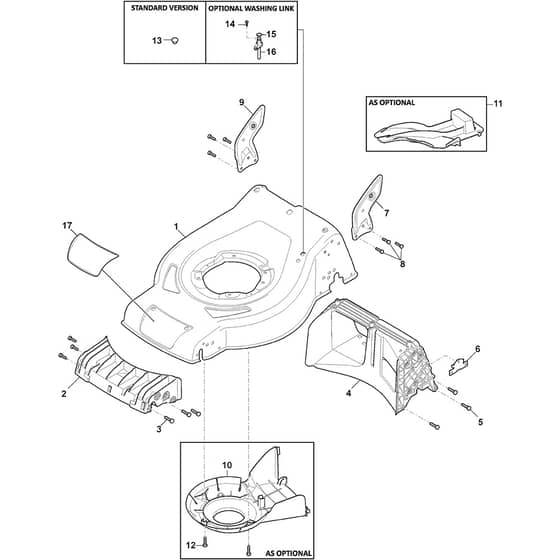

Castel Garden XC 43 Li Parts Diagram

Product Name - XC 43 Li

Model Year - 2019-2020

Model Type - CSL 430 LI 60

Art.N - 295441063/C19

Engine Model -

	Part No.	Details
1	MO381004937/0 Available to backorder	Red Deck	£118.26 £98.55
2	MO322108300/2 Available to backorder	Front Conveyor Assy	£11.34 £9.45
3	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
4	MO322108392/0 Available to backorder	Rear Conveyor Assy From 01-9-2018	£20.40 £17.00
6	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
7	MO381005139/0 Available to backorder	Left Bracket	£6.64 £5.53
8	MO112727801/0 Available to backorder	Screw	£1.63 £1.36
9	MO381005137/0 Available to backorder	Right Bracket	£6.32 £5.27
10	MO322060241/1 In stock	Belt Protection As Optional	£8.72 £7.27
11	MO322140240/1 In stock	Mulching Deflector As Optional	£11.12 £9.27
12	MO112728903/0 In stock	Screw As Optional	£1.39 £1.16
13	MO322820077/1 Available to backorder	Cap	£1.55 £1.29
14	MO112728450/0 In stock	Screw	£1.55 £1.29
15	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
16	MO322034002/0 In stock	Washing Connection	£1.70 £1.42
