XC 38 P - 2010 - 223513503/10 - Castel Garden Chainsaw Engine Diagram

Name: XC 38 P - 2010 - 223513503/10 - Castel Garden Chainsaw Engine Diagram
SKU: xc_38_p_223513503_10_engine-group
Price: 1.11 GBP
Availability: InStock

Part No. xc_38_p_223513503_10_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XC 38 P - 2010 - 223513503/10 - Castel Garden Chainsaw Engine Diagram

Description

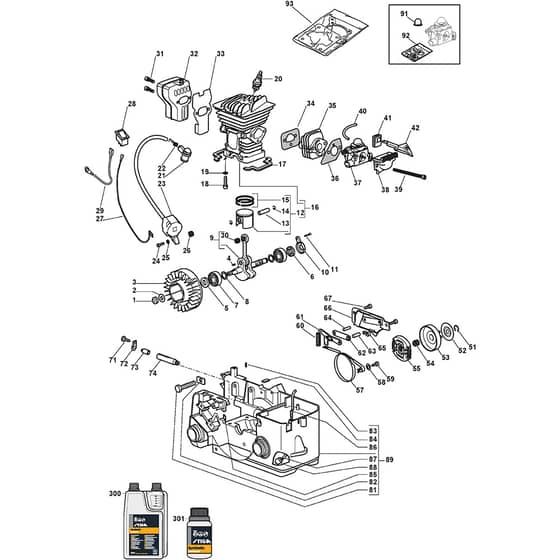

Castel Garden XC 38 P Parts Diagram

Product Name - XC 38 P

Model Year - 2010

Model Type - P 382 S

Art.N - 223513503/10

Engine Model -

	Part No.	Details
3	MO3L4541210/1 Available to backorder	Flywheel To 31-8-2005	£52.51 £43.76
4	MO3151010 Available to backorder	Flywheel Key	£1.33 £1.11
5	MO3121071 Available to backorder	Seal Ring 5a	£4.78 £3.98
7	MO3112030 Available to backorder	Ball Bearing	£14.93 £12.44
9	MO383020003/0 Available to backorder	Crankshaft	£78.85 £65.71
12	MO383590005/0 Available to backorder	Piston Assy Ø 39	£25.04 £20.87
13	MO3158260 Available to backorder	Piston Pin	£6.64 £5.53
14	MO3356050 Available to backorder	Circlip Ring	£1.39 £1.16
15	MO123204003/0 Available to backorder	Piston Ring Ø 39	£4.64 £3.87
16	MO383070005/0 Available to backorder	Cylinder - Piston Ass'Y	£161.89 £134.91
17	MO3721560 Available to backorder	Cylinder Gasket	£2.18 £1.82
19	MO2330020 Available to backorder	Washer	£1.39 £1.16
20	9494 In stock	Spark Plug	£3.60 £3.00
21	MO3748880 Available to backorder	Spark Plug Cap	£2.03 £1.69
22	MO3657050 Available to backorder	Spark Plug Spring	£3.92 £3.27
26	MO3654480 Available to backorder	Spring	£1.33 £1.11
28	MO118800202/0 Available to backorder	Stop Switch	£1.84 £1.53
31	MO2135040 Available to backorder	Screw	£1.38 £1.15
32	MO183740004/0 Available to backorder	Muffler Assy	£50.96 £42.47
34	MO1L3724300/1 Available to backorder	Intake Manifold Gasket	£14.38 £11.98
36	MO1L3724160/1 Available to backorder	Carburettor Gasket	£2.34 £1.95
37	MO123054003/2 Available to backorder	Carburetor	£146.56 £122.13
38	MO8744781 Available to backorder	Intake Manifold Assy	£36.59 £30.49
51	MO112000955/0 Available to backorder	Circlip Ø8	£1.33 £1.11
53	MO4122070 Available to backorder	Clutch Drum	£18.88 £15.73
54	MO3114190 Available to backorder	Needle Bearing	£7.66 £6.38
58	MO2312150 Available to backorder	Washer	£1.33 £1.11
59	MO2123060 Available to backorder	Screw	£1.33 £1.11
61	MO4252310 Available to backorder	Chain Brake Lever	£16.69 £13.91
62	MO3614490 Available to backorder	Brake Plate	£2.34 £1.95
301	MO1111-9231-01 Available to backorder	2 Stroke Synthetic 0.1 Lt	£3.01 £2.51
