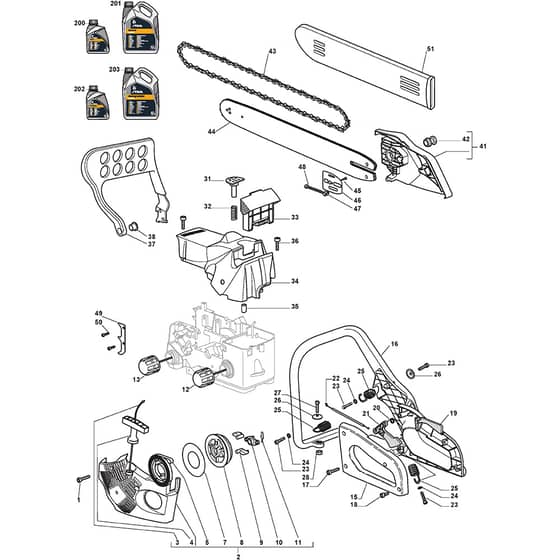

XC 38 P - 2010-2011 - 223516503/10 - Castel Garden Chainsaw Housing Diagram

Name: XC 38 P - 2010-2011 - 223516503/10 - Castel Garden Chainsaw Housing Diagram
SKU: xc_38_p_223516503_10_housing-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XC 38 P - 2010-2011 - 223516503/10 - Castel Garden Chainsaw Housing Diagram

Description

Castel Garden XC 38 P Parts Diagram

Product Name - XC 38 P

Model Year - 2010-2011

Model Type - P 382 S

Art.N - 223516503/10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
3	MO3784030 Available to backorder	Starter Cord	£2.12 £1.77
5	MO4611480 Available to backorder	Starter Spring	£8.15 £6.79
7	MO3723640 Available to backorder	Disc For Starter Spring	£4.08 £3.40
8	MO3750130 Available to backorder	Starter Pulley	£4.37 £3.64
10	MO3750140 Available to backorder	Starter Hook Guide	£3.38 £2.82
13	MO4252630 Available to backorder	Oil Cap Assy	£12.19 £10.16
19	MO3743597 Available to backorder	Safety Lever	£1.69 £1.41
20	MO1L3654440/1 Available to backorder	Molla Leva Accel. E Sicurezza 360-41	£2.81 £2.34
21	MO3743587 Available to backorder	Throttle Lever For Cable	£3.52 £2.93
22	MO4252480 Available to backorder	Throttle Cable With Sheath	£6.24 £5.20
24	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
25	MO3654400 Available to backorder	Spring	£6.67 £5.56
27	MO2135040 Available to backorder	Screw	£1.38 £1.15
28	MO2432040 Available to backorder	Nut	£1.33 £1.11
31	MO3750440 Available to backorder	Air Purge Button	£3.49 £2.91
32	MO3654430 Available to backorder	Spring	£1.42 £1.18
33	MO383220002/0 Available to backorder	Air Filter	£7.92 £6.60
35	MO3750450 Available to backorder	Air Purge Cap Button	£2.48 £2.07
36	MO2123030 Available to backorder	Screw	£1.33 £1.11
37	MO4563770 Available to backorder	Hand Guard	£26.88 £22.40
41	MO383059017/0 Available to backorder	Clutch Housing Assy Red	£19.61 £16.34
42	MO2670270 Available to backorder	Nut	£2.81 £2.34
43	5050 In stock	Chain 16Inch	£10.69 £8.91
44	MO323900107/0 Available to backorder	Bar 16Inch	£41.80 £34.83
45	MO2123060 Available to backorder	Screw	£1.33 £1.11
46	MO323311002/0 Available to backorder	Bar Plate	£5.64 £4.70
47	MO3641970 Available to backorder	Chain Tightener Block	£4.08 £3.40
49	MO323026000/0 Available to backorder	Spike	£7.10 £5.92
50	MO2123100 Available to backorder	Screw	£1.28 £1.07
51	MO4181307 Available to backorder	Chain Cover 16Inch	£6.05 £5.04
200	MO1111-9228-01 Available to backorder	Chain Oil Mineral 1Lt	£9.30 £7.75
201	MO1111-9229-01 Available to backorder	Chain Oil Mineral 5Lt	£42.41 £35.34
202	MO1111-9276-01 Available to backorder	Chain Oil Biodegradable 1Lt	£10.99 £9.16
203	MO1111-9247-01 Available to backorder	Chain Oil Biodegradable 5Lt	£50.98 £42.48
