XC 35 P - 2005 - 222812003/04 - Castel Garden Chainsaw Engine Diagram

Name: XC 35 P - 2005 - 222812003/04 - Castel Garden Chainsaw Engine Diagram
SKU: xc_35_p_222812003_04_engine-group
Price: 1.11 GBP
Availability: InStock

Part No. xc_35_p_222812003_04_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XC 35 P - 2005 - 222812003/04 - Castel Garden Chainsaw Engine Diagram

Description

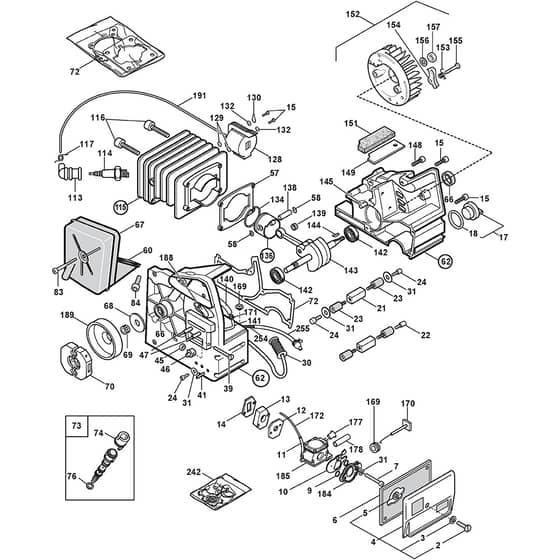

Castel Garden XC 35 P Parts Diagram

Product Name - XC35P

Model Year - 2005

Model Type - PR 350

Art.N - 222812003/04

Engine Model -

	Part No.	Details
3	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
14	MO3723950 Available to backorder	Support Gasket	£4.78 £3.98
15	MO2132510 Available to backorder	Screw	£1.38 £1.15
24	MO2135020 Available to backorder	Screw	£1.39 £1.16
30	MO4251550 Available to backorder	Intake Assy	£11.34 £9.45
45	MO2432040 Available to backorder	Nut	£1.33 £1.11
46	MO3641970 Available to backorder	Chain Tightener Block	£4.08 £3.40
57	MO3723970 Available to backorder	Cylinder Gasket	£7.97 £6.64
58	MO3356020 Available to backorder	Circlip	£6.91 £5.76
60	MO3723940 Available to backorder	Muffler Gasket	£11.70 £9.75
69	MO3114140 Available to backorder	Needle Bearing	£21.62 £18.02
76	MO3721320 Available to backorder	Gasket	£4.93 £4.11
83	MO2135120 Available to backorder	Screw	£1.39 £1.16
84	MO2135180 Available to backorder	Screw	£1.40 £1.17
113	MO3748880 Available to backorder	Spark Plug Cap	£2.03 £1.69
114	9494 In stock	Spark Plug	£3.60 £3.00
115	MO8540600 Available to backorder	Cylinder - Piston Ass'Y	£232.27 £193.56
117	MO3657050 Available to backorder	Spark Plug Spring	£3.92 £3.27
128	MO3210620 Available to backorder	Electronic Coil	£67.36 £56.13
132	MO2321050 Available to backorder	Washer	£1.39 £1.16
134	MO3123150 Available to backorder	Piston Ring	£6.32 £5.27
136	MO8540590 Available to backorder	Piston Assy	£73.52 £61.27
139	MO3116020 Available to backorder	Needle Bearing	£13.94 £11.62
142	MO3112030 Available to backorder	Ball Bearing	£14.93 £12.44
144	MO3151010 Available to backorder	Flywheel Key	£1.33 £1.11
153	MO3653030 Available to backorder	Spring	£4.93 £4.11
170	MO4251110 Available to backorder	Throttle Lever	£14.22 £11.85
171	MO3320170 Available to backorder	Hose Clamp	£1.33 £1.11
172	MO3782610 Available to backorder	Tube	£5.06 £4.22
189	MO4121208 Available to backorder	Clutch Drum	£17.17 £14.31
242	MO8724090 Available to backorder	Diaphragm Gasket Set	£18.88 £15.73
