XC 27 PC - 2010-2012 - 223010103/06 - Castel Garden Chainsaw Engine Diagram

Description

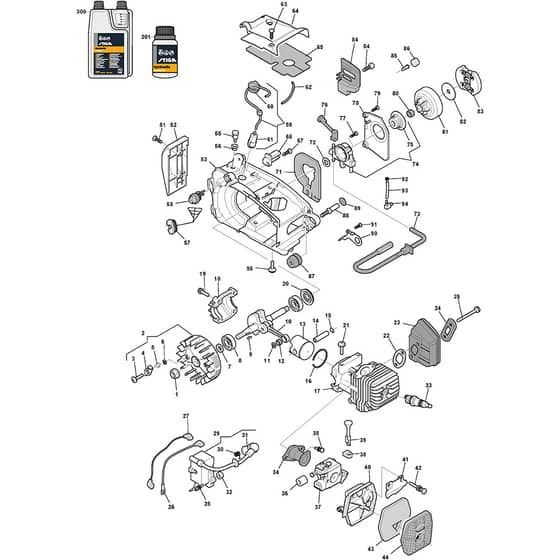

Castel Garden XC 27 PC Parts Diagram

Product Name - XC 27 PC

Model Year - 2010-2012

Model Type - P 270

Art.N - 223010103/06

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
5	MO6995250 Available to backorder	Spring	£1.55 £1.29
7	MO6995247 Available to backorder	Seal Ring	£6.36 £5.30
9	MO6995018 Available to backorder	Flywheel Key	£1.33 £1.11
11	MO6995169 Available to backorder	Washer	£1.82 £1.52
13	MO6995200 Available to backorder	Piston	£52.91 £44.09
14	MO6995172 Available to backorder	Piston Pin	£3.79 £3.16
16	MO6995201 Available to backorder	Piston Ring	£12.17 £10.14
17	MO6995245 Available to backorder	Cylinder Assy	£227.72 £189.77
18	MO6995186 Available to backorder	Stabilizer	£47.10 £39.25
20	MO6995248 Available to backorder	Seal Ring	£7.76 £6.47
22	MO6995185 Available to backorder	Muffler Gasket	£1.55 £1.29
23	MO6995246 Available to backorder	Muffler	£19.01 £15.84
24	MO6995251 Available to backorder	Plate	£1.33 £1.11
25	MO6995182 Available to backorder	Screw	£1.33 £1.11
26	MO6995210 Available to backorder	Earth Cable	£6.90 £5.75
27	MO6995227 Available to backorder	Stop Wire	£7.19 £5.99
28	MO6995234 Available to backorder	Screw	£1.40 £1.17
29	MO6995209 Available to backorder	Electronic Coil	£184.60 £153.83
30	MO6995022 Available to backorder	Spark Plug Spring	£1.40 £1.17
31	MO6995066 Available to backorder	Spark Plug Cover	£4.72 £3.93
32	MO6995238 Available to backorder	Spacer	£3.38 £2.82
33	9494 In stock	Spark Plug	£3.72 £3.10
34	MO6995183 Available to backorder	Intake Manifold Assy	£61.01 £50.84
36	MO118801153/0 Available to backorder	Gasket	£1.33 £1.11
37	MO6995244 Available to backorder	Carburetor	£109.49 £91.24
38	MO6995214 Available to backorder	Grommet Air-Lever	£2.80 £2.33
39	MO6995213 Available to backorder	Choke Lever Rod	£2.81 £2.34
40	MO6995243 Available to backorder	Air Filter Base	£6.76 £5.63
41	MO6995211 Available to backorder	Plate	£4.66 £3.88
43	MO6995217 Available to backorder	Air Filter	£3.06 £2.55
44	MO6995216 Available to backorder	Air Cleaner Cover	£13.75 £11.46
53	MO6995239 Available to backorder	Crankcase Ass.Y	£96.48 £80.40
54	MO6995187 Available to backorder	Screw	£1.33 £1.11
55	MO183875001/0 Available to backorder	Breather Valve Assy	£30.97 £25.81
56	MO6995232 Available to backorder	Grommet	£1.33 £1.11
57	MO6995193 Available to backorder	Cap	£8.00 £6.67
58	MO6995228 Available to backorder	Air Purge	£37.80 £31.50
59	MO6995188 Available to backorder	Fuel Hose. Intake Assy	£23.15 £19.29
60	MO6995189 Available to backorder	Grommet	£6.62 £5.52
61	MO6995174 Available to backorder	Fuel Pickup Assy	£7.61 £6.34
62	MO6995190 Available to backorder	Fuel Hose	£2.26 £1.88
64	MO6995249 Available to backorder	Upper Cover	£3.70 £3.08
67	MO6995179 Available to backorder	Screw	£1.40 £1.17
71	MO6995204 Available to backorder	Gasket	£1.36 £1.13
73	MO6995191 Available to backorder	Filter Intank Assy With Pipe	£25.21 £21.01
74	MO383594507/0 Available to backorder	Oil Pump Ass.Y-Screw	£96.35 £80.29
75	MO323878075/0 Available to backorder	Screw	£23.42 £19.52
76	MO6995205 Available to backorder	Tube	£3.67 £3.06
77	MO6995008 Available to backorder	Screw	£1.33 £1.11
79	MO123878008/0 Available to backorder	Screw	£1.40 £1.17
80	MO6995230 Available to backorder	Needle Bearing	£8.17 £6.81
81	MO6995178 Available to backorder	Clutch Drum Assy	£61.93 £51.61
82	MO6995203 Available to backorder	Sprocket Washer	£3.24 £2.70
83	MO6995177 Available to backorder	Clutch Ass.Y	£40.82 £34.02
85	MO6995220 Available to backorder	Valve	£2.30 £1.92
86	MO6995192 Available to backorder	Gasket	£5.44 £4.53
87	MO323275005/0 Available to backorder	Shock Absorber	£11.48 £9.57
89	MO323790006/0 Available to backorder	Cap	£1.40 £1.17
90	MO6995219 Available to backorder	Clamp	£3.24 £2.70
91	MO123878009/0 Available to backorder	Screw	£1.37 £1.14
301	MO1111-9231-01 Available to backorder	2 Stroke Synthetic 0.1 Lt	£3.00 £2.50
