XBP 75 - 2019-2021 - 255175103/C19 - Castel Garden Blower Carburettor Diagram

Name: XBP 75 - 2019-2021 - 255175103/C19 - Castel Garden Blower Carburettor Diagram
SKU: xbp_75_255175103_c19_carburettor-group
Price: 0.99 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XBP 75 - 2019-2021 - 255175103/C19 - Castel Garden Blower Carburettor Diagram

Description

Castel Garden XBP 75 Parts Diagram

Product Name - XBP 75

Model Year - 2019-2021

Model Type - BP 375

Art.N - 255175103/C19

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO2132180 Available to backorder	Screw	£1.33 £1.11
4	MO118804426/0 Available to backorder	Muffler Gasket	£1.82 £1.52
5	8210 In stock	Spark Plug	Was £2.36 £1.97 Special Price £1.19 £0.99
6	MO2653090 Available to backorder	Screw	£1.40 £1.17
7	MO118804423/0 Available to backorder	Plate	£5.48 £4.57
8	MO2132550 Available to backorder	Screw	£1.40 £1.17

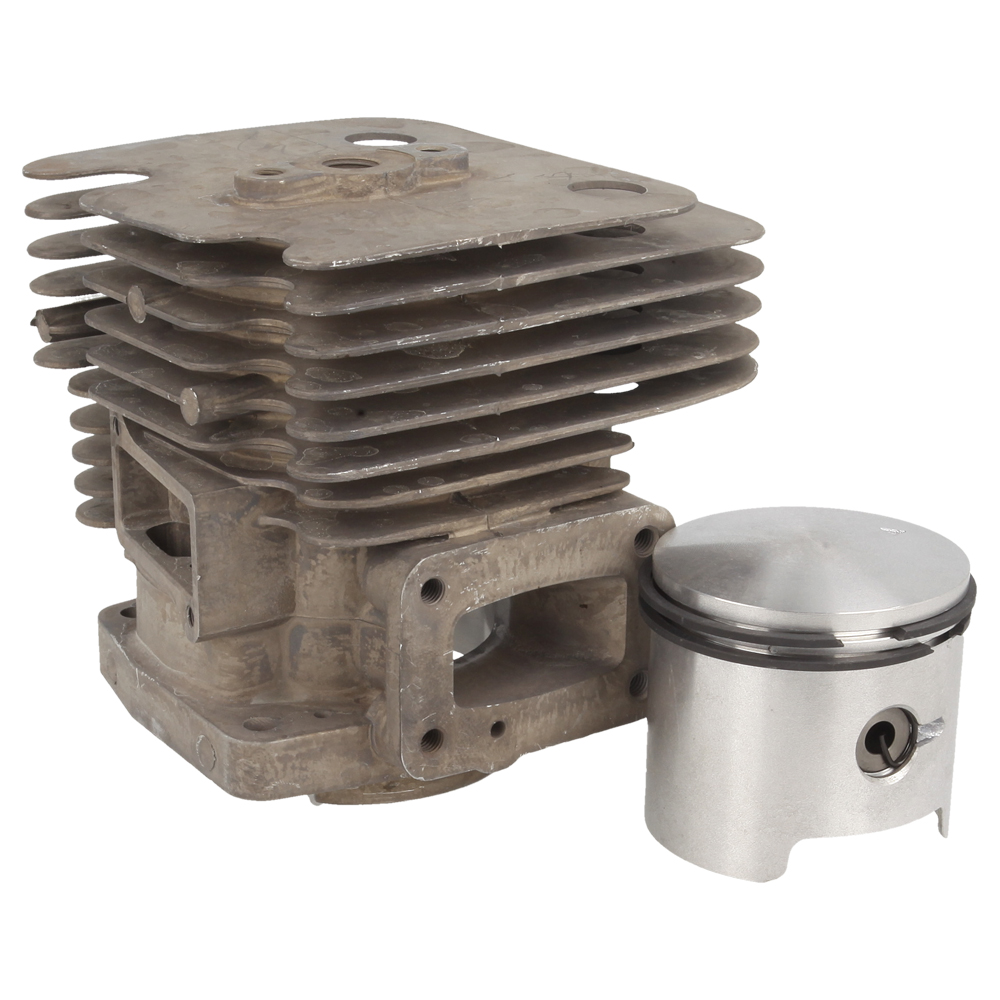

9	MO118804507/1 Available to backorder	Cylinder - Piston Ass'Y From S.N 19DC1BLO100685	£130.91 £109.09

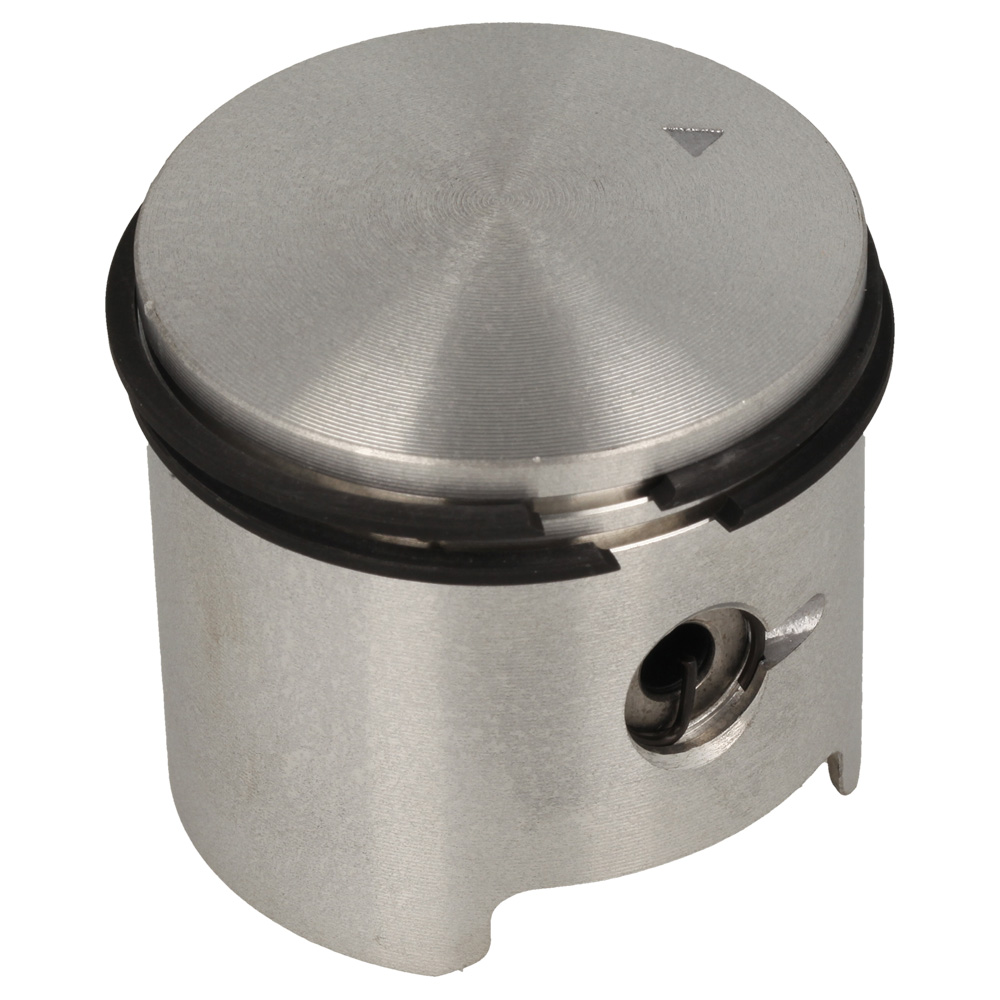

10	MO118804506/0 Available to backorder	Piston Assy	£27.59 £22.99
11	MO118806462/0 Available to backorder	Piston Ring thick 1.5mm From S.N 20KC1BL0001309	£4.92 £4.10
12	MO118804439/0 Available to backorder	Washer-Piston	£1.26 £1.05
13	MO118804437/0 Available to backorder	Piston Pin	£1.55 £1.29
14	MO118804440/0 Available to backorder	Needle Bearing	£27.59 £22.99

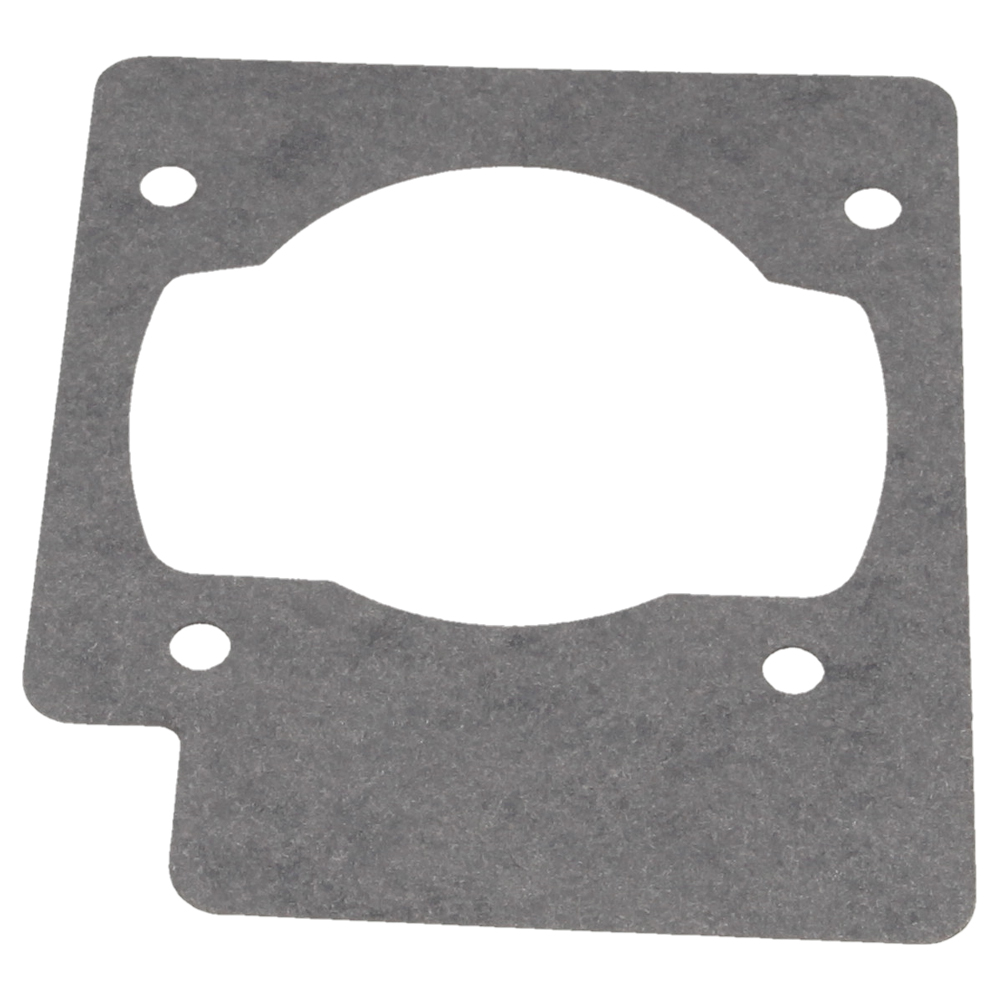

16	MO118804422/0 Available to backorder	Cylinder Gasket	£1.82 £1.52
18	MO118804435/0 Available to backorder	Crankcase Gasket	£1.82 £1.52
19	MO118804441/0 Available to backorder	Crankshaft	£74.62 £62.18
20	MO3151050 Available to backorder	Flywheel Key	£6.76 £5.63
21	MO118800368/0 Available to backorder	Bearing	£18.94 £15.78
22	MO118801158/0 Available to backorder	Pin	£1.33 £1.11
23	MO2135130 Available to backorder	Screw	£1.40 £1.17

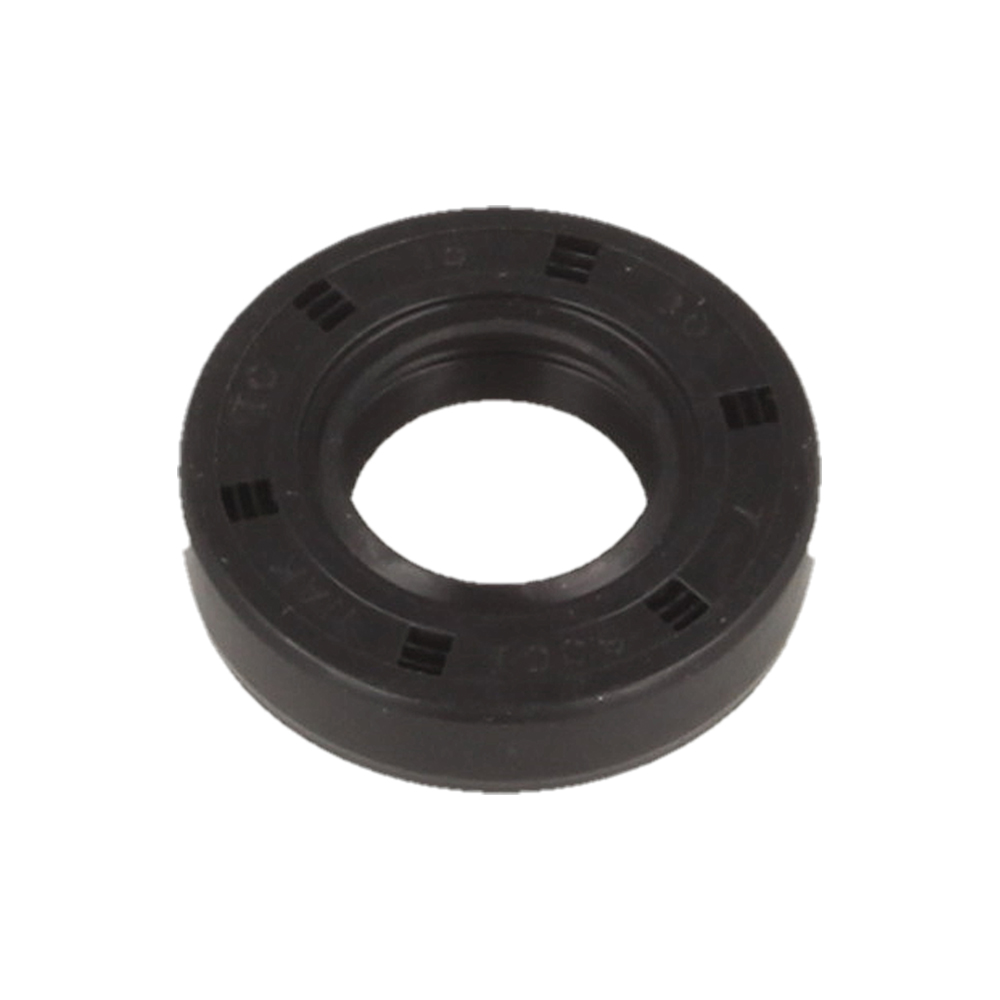

24	MO118804418/0 Available to backorder	Seal Ring	£4.66 £3.88
25	MO9739-1031-22 In stock	Nut	£1.97 £1.64
26	MO118804427/0 Available to backorder	Coupling	£9.22 £7.68

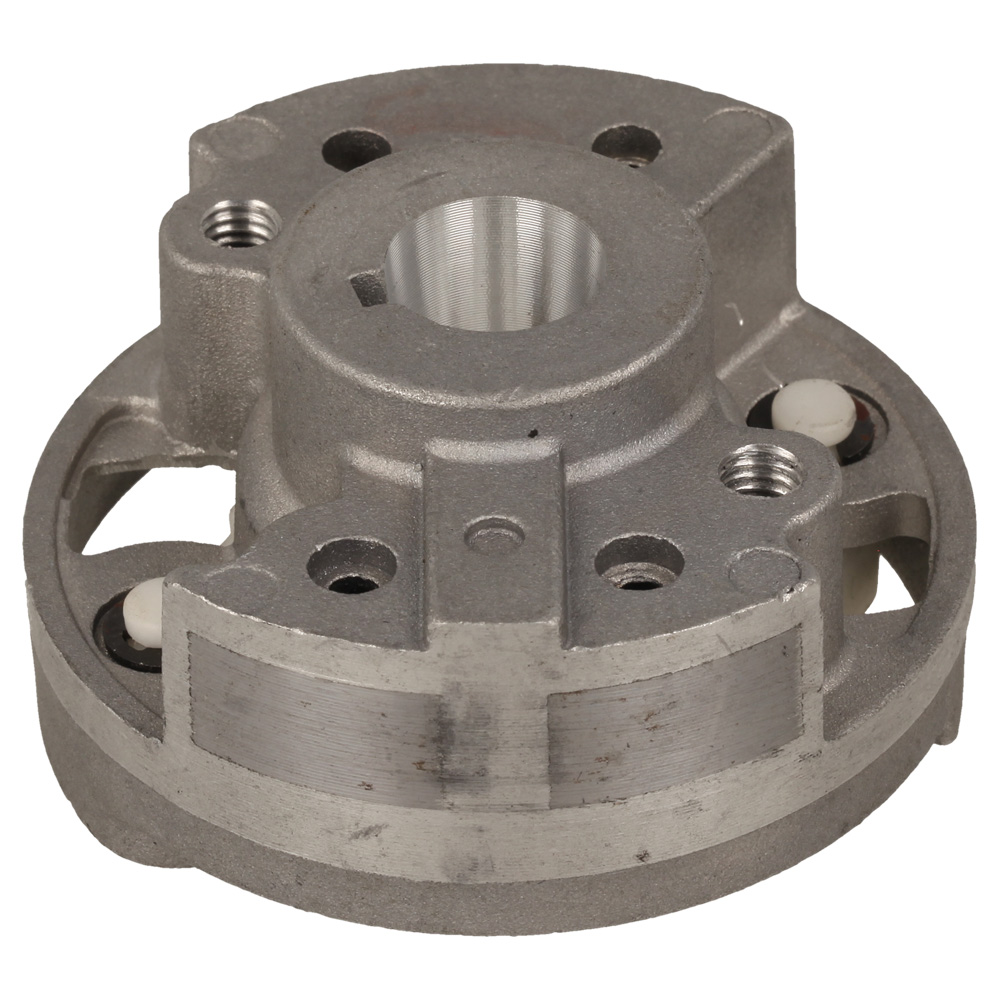

27	MO118804458/0 Available to backorder	Flywheel	£24.36 £20.30
32	MO118804431/0 Available to backorder	Cover	£5.35 £4.46
33	MO118804456/0 Available to backorder	Grommet	£1.33 £1.11
34	MO118804457/0 Available to backorder	Coil Cable	£5.64 £4.70

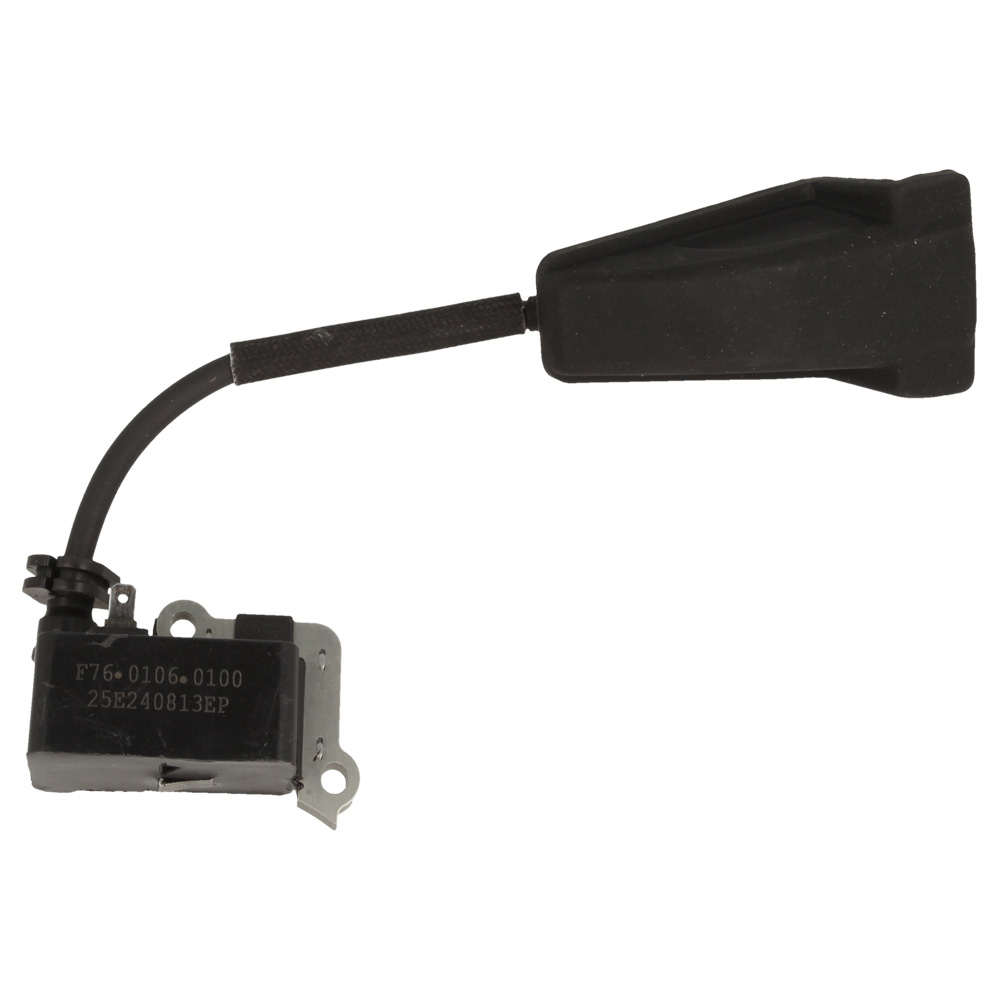

36	MO118804455/0 Available to backorder	Electronic Coil	£36.36 £30.30

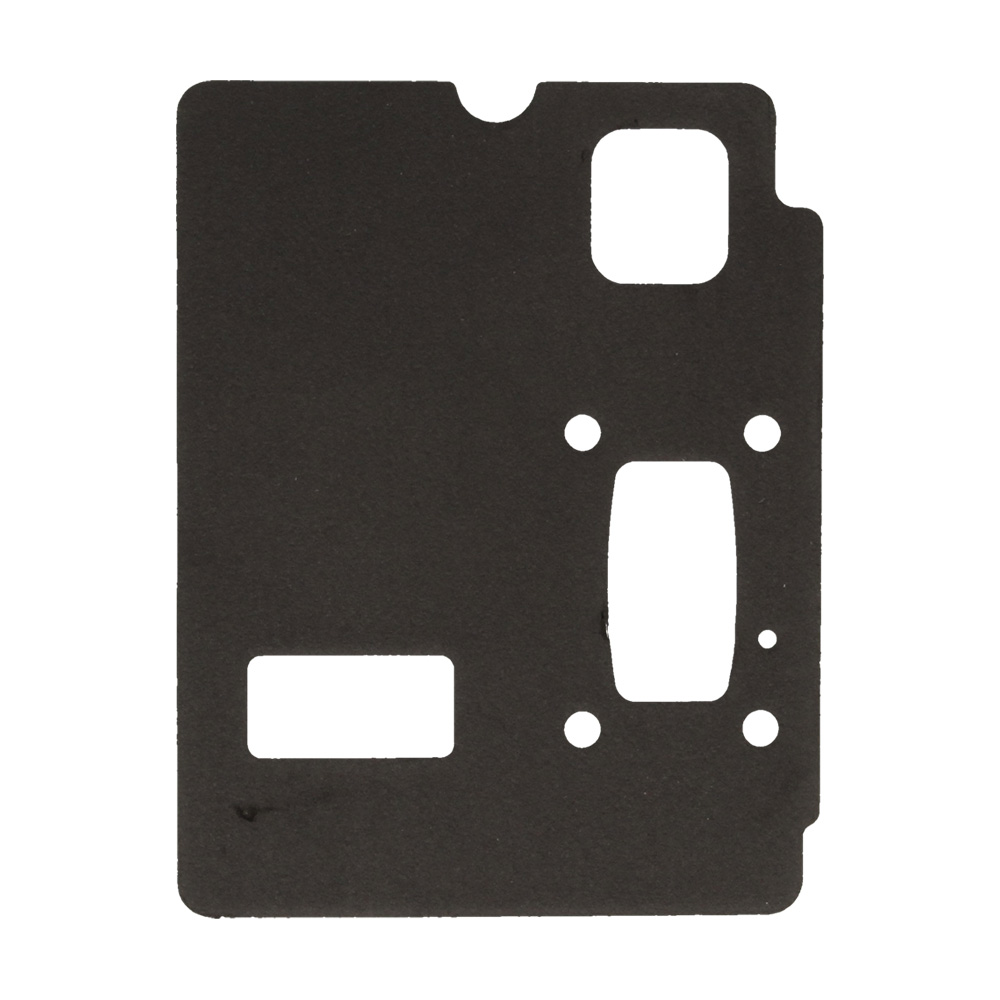

41	MO118804424/0 Available to backorder	Intake Manifold Gasket	£3.38 £2.82
42	MO118804433/0 Available to backorder	Intake Manifold	£17.45 £14.54
43	MO2135050 Available to backorder	Screw	£1.33 £1.11

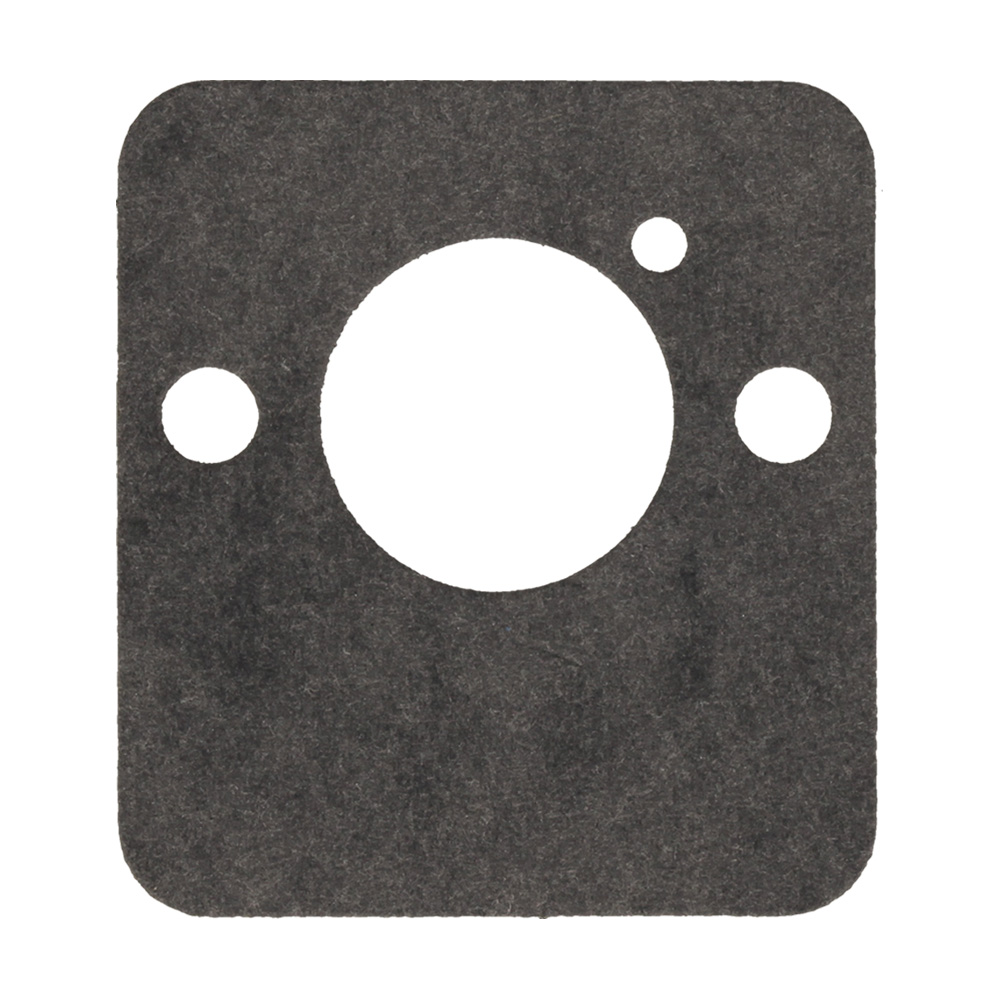

44	MO118804425/0 Available to backorder	Carburetor Gasket	£1.33 £1.11

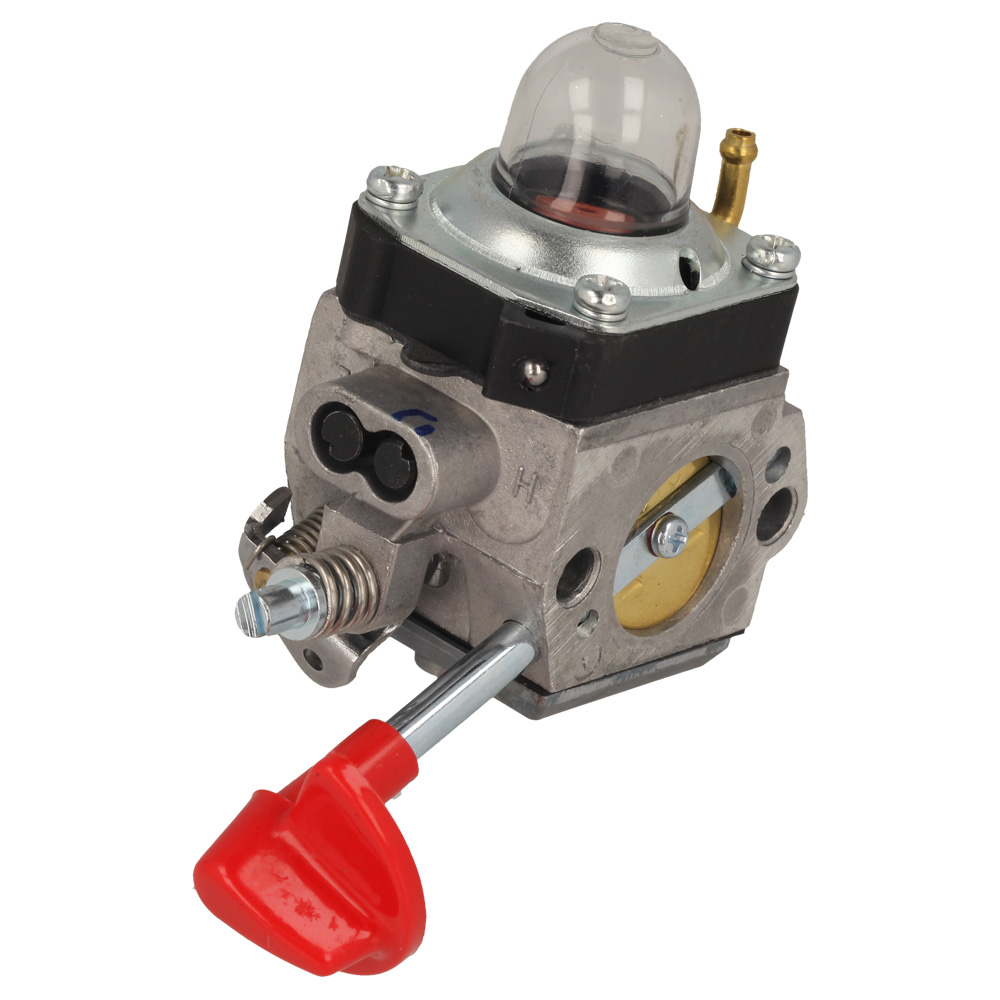

45	MO118804434/0 Available to backorder	Carburettor	£64.75 £53.96
51	MO123878021/0 Available to backorder	Screw	£1.33 £1.11
52	MO118805161/0 Available to backorder	Cylinder Rear Plug From S.N 19DC1BLO100685	£4.66 £3.88
53	MO118805162/0 Available to backorder	Gasket From S.N 19DC1BLO100685	£1.33 £1.11
54	MO118805160/0 Available to backorder	Cylinder Front Plug From S.N 19DC1BLO100685	£4.66 £3.88
55	MO118804974/0 Available to backorder	Muffler Assy	£72.37 £60.31
56	MO118804976/0 Available to backorder	Engine Short Block	£142.21 £118.51
