XBL 260 H - 2010-2012 - 255026003/10 - Castel Garden Blower Engine Diagram

Name: XBL 260 H - 2010-2012 - 255026003/10 - Castel Garden Blower Engine Diagram
SKU: xbl_260_h_255026003_10_engine-group
Price: 1.05 GBP
Availability: InStock

Part No. xbl_260_h_255026003_10_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XBL 260 H - 2010-2012 - 255026003/10 - Castel Garden Blower Engine Diagram

Description

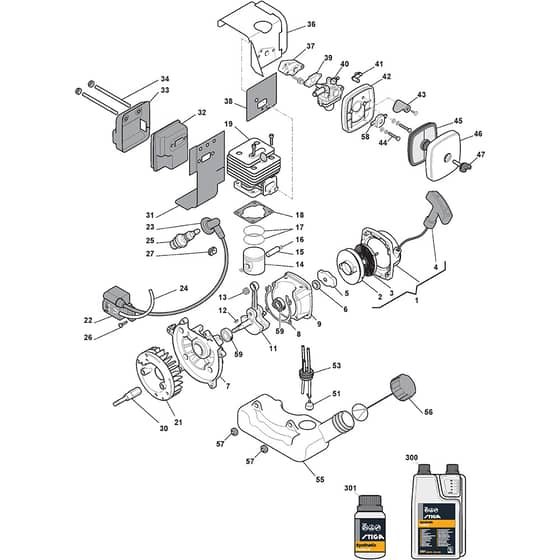

Castel Garden XBL 260 H Parts Diagram

Product Name - XBL 260 H

Model Year - 2010-2012

Model Type - BL 260H

Art.N - 255026003/10

Engine Model -

	Part No.	Details
1	MO183058031/0 Available to backorder	Starter Assy	£19.57 £16.31
2	MO123604006/0 Available to backorder	Starter Pulley	£2.69 £2.24
3	MO123430584/0 Available to backorder	Spring	£6.06 £5.05
5	MO183082002/1 In stock	Starter Cup Ass.Y	£4.37 £3.64
6	MO119035159/0 Available to backorder	Seal Ring	£1.33 £1.11
7	MO123685025/0 Available to backorder	Crank Case	£16.48 £13.73
8	MO123280046/0 Available to backorder	Crankcase Gasket	£1.39 £1.16
9	MO123685024/0 Available to backorder	Crank Case	£17.04 £14.20
11	MO123020024/0 Available to backorder	Crankshaft	£56.32 £46.93
13	MO123235006/0 Available to backorder	Needle Bearing	£2.82 £2.35
14	MO123590007/0 Available to backorder	Piston	£8.66 £7.22
15	MO123760005/0 Available to backorder	Piston Pin	£1.70 £1.42
16	MO123202005/0 Available to backorder	Washer. Piston Pin	£1.33 £1.11
17	MO123204009/0 Available to backorder	Piston Ring	£1.70 £1.42
18	MO123280044/0 Available to backorder	Cylinder Base Gasket	£1.46 £1.22
19	MO123071021/0 Available to backorder	Cylinder	£54.90 £45.75
21	MO123880010/0 Available to backorder	Flywheel Ass.Y	£28.27 £23.56
22	MO118801574/0 Available to backorder	Electronic Coil	£26.27 £21.89
23	MO123053004/0 Available to backorder	Spark Plug Cover	£1.26 £1.05
24	MO123065040/0 Available to backorder	Earth Cable	£1.33 £1.11
25	9494 In stock	Spark Plug	£3.60 £3.00
27	MO123275023/0 Available to backorder	Grommet	£1.39 £1.16
31	MO123280057/0 Available to backorder	Muffler Gasket	£23.23 £19.36
32	MO183740016/0 Available to backorder	Muffler	£88.69 £73.91
34	MO123878071/0 Available to backorder	Screw	£1.70 £1.42
37	MO123073508/0 Available to backorder	Intake Manifold	£3.52 £2.93
38	MO123280058/0 Available to backorder	Intake Manifold Gasket	£1.60 £1.33
39	MO123280059/0 Available to backorder	Intake Carburator Gasket	£1.33 £1.11
40	MO123054033/0 Available to backorder	Carburetor	£50.69 £42.24
41	MO123315090/0 Available to backorder	Choke Lever	£1.55 £1.29
42	MO123040003/0 Available to backorder	Air Filter Holder	£9.07 £7.56
43	MO123190001/0 Available to backorder	Starter Valve	£1.26 £1.05
45	MO123220012/0 Available to backorder	Air Filter	£5.92 £4.93
46	MO123090031/0 Available to backorder	Filter Cover	£1.70 £1.42
47	MO123878073/0 Available to backorder	Screw	£1.39 £1.16
51	MO183520006/0 Available to backorder	Intake Filter Assy	£2.40 £2.00
53	MO123275021/0 Available to backorder	Grommet	£1.33 £1.11
55	MO123733004/0 Available to backorder	Fuel Tank	£9.28 £7.73
56	MO183790009/0 In stock	Cap Ass'Y. Fuel Tank	£2.82 £2.35
57	MO123280060/0 Available to backorder	Rubber Gasket	£1.39 £1.16
59	MO3112240 Available to backorder	Needle Bearing	£10.14 £8.45
300	MO1111-9230-01 Available to backorder	2 Stroke Synthetic Oil 1L Dozer	£14.48 £12.07
301	MO1111-9231-01 Available to backorder	2 Stroke Synthetic 0.1 Lt	£3.01 £2.51
