XBL 250 H - 2011 - 255025003/06 - Castel Garden Blower Engine Diagram

Name: XBL 250 H - 2011 - 255025003/06 - Castel Garden Blower Engine Diagram
SKU: xbl_250_h_255025003_06_engine-group
Price: 1.11 GBP
Availability: InStock

Part No. xbl_250_h_255025003_06_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XBL 250 H - 2011 - 255025003/06 - Castel Garden Blower Engine Diagram

Description

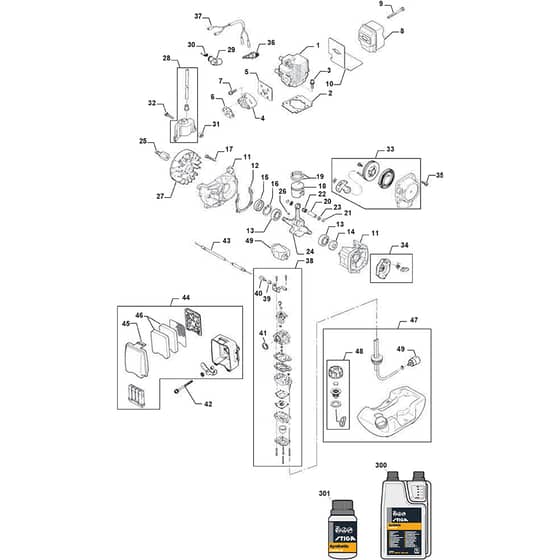

Castel Garden XBL 250 H Parts Diagram

Product Name - XBL 250 H

Model Year - 2011

Model Type - BL 250 H

Art.N - 255025003/06

Engine Model -

	Part No.	Details
1	MO123071007/0 Available to backorder	Cylinder Assy	£140.08 £116.73
2	MO123280021/0 Available to backorder	Cilynder Gasket	£2.40 £2.00
4	MO123073507/0 Available to backorder	Intake Manifold	£9.52 £7.93
5	MO123280017/0 Available to backorder	Intake Manifold Gasket	£4.08 £3.40
18	MO123590002/0 Available to backorder	Piston	£39.42 £32.85
19	MO123204002/0 Available to backorder	Piston Ring	£7.02 £5.85
20	MO123760000/0 Available to backorder	Piston Pin	£4.78 £3.98
23	MO6995169 Available to backorder	Washer	£1.84 £1.53
26	MO6995018 Available to backorder	Flywheel Key	£1.33 £1.11
34	MO183082001/0 Available to backorder	Starter Cup Ass.Y	£12.40 £10.33
36	9494 In stock	Spark Plug	£3.60 £3.00
300	MO1111-9230-01 Available to backorder	2 Stroke Synthetic Oil 1L Dozer	£14.48 £12.07
301	MO1111-9231-01 Available to backorder	2 Stroke Synthetic 0.1 Lt	£3.01 £2.51
