XB45 - 2005 - 284520003/04 - Castel Garden Brushcutter Engine 02 Diagram

Name: XB45 - 2005 - 284520003/04 - Castel Garden Brushcutter Engine 02 Diagram
SKU: xb45_284520003_04_engine_02-group
Price: 1.11 GBP
Availability: InStock

Part No. xb45_284520003_04_engine_02-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XB45 - 2005 - 284520003/04 - Castel Garden Brushcutter Engine 02 Diagram

Description

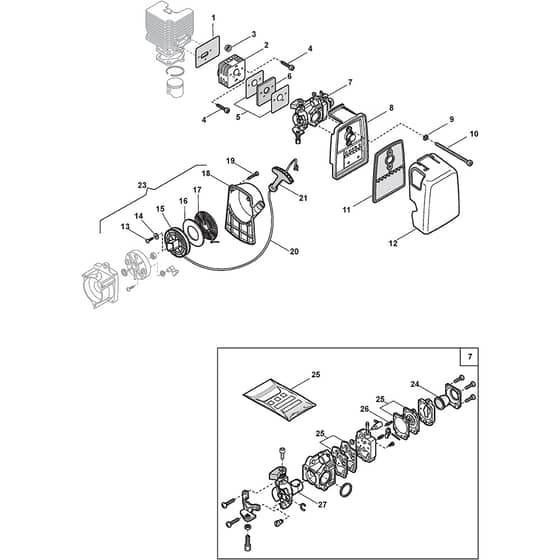

Castel Garden XB45 Parts Diagram

Product Name - XB45

Model Year - 2005

Model Type - STAR 55 D

Art.N - 284520003/04

Engine Model -

	Part No.	Details
2	MO3750500 Available to backorder	Intake Manifold	£27.95 £23.29
4	MO2135130 Available to backorder	Screw	£1.39 £1.16
5	MO3724400 Available to backorder	Intake Carburator Gasket	£3.52 £2.93
7	MO4353290 Available to backorder	Carburetor	£174.67 £145.56
9	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
11	MO3781640 In stock	Air Filter	£7.46 £6.22
12	MO4563903 Available to backorder	Red Filter Cover	£18.88 £15.73
14	MO3613420 Available to backorder	Washer	£1.33 £1.11
15	MO4562440 Available to backorder	Starter Pulley	£15.34 £12.78
19	MO2135040 Available to backorder	Screw	£1.38 £1.15
21	MO3750067 Available to backorder	Starter Handle	£2.12 £1.77
24	MO3744870 Available to backorder	Primer Carburettor	£13.38 £11.15
25	MO4353150 In stock	Diaphragm Gasket Set	£11.42 £9.52
