XB38H - 2007 - 283440003/04 - Castel Garden Brushcutter Handle Transmission Diagram

Name: XB38H - 2007 - 283440003/04 - Castel Garden Brushcutter Handle Transmission Diagram
SKU: xb38h_283440003_04_handle_transmission-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XB38H - 2007 - 283440003/04 - Castel Garden Brushcutter Handle Transmission Diagram

Description

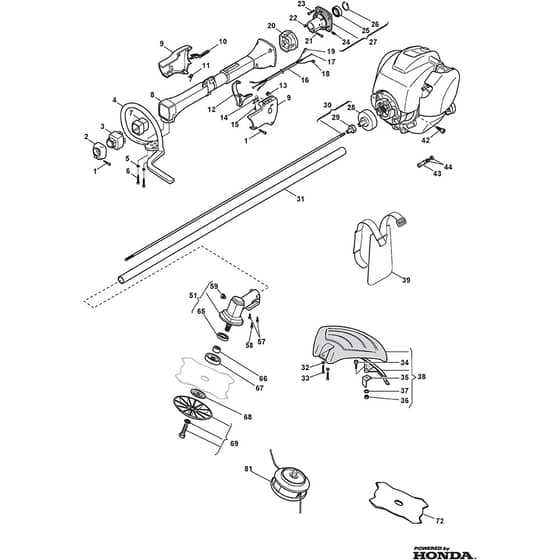

Castel Garden XB38H Parts Diagram

Product Name - XB38H

Model Year - 2007

Model Type - STAR 38 H

Art.N - 283440003/04

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO2123030 Available to backorder	Screw	£1.33 £1.11
4	MO4563560 Available to backorder	Front Handle	£10.19 £8.49
8	MO4563531 Available to backorder	Transmission Housing	£13.44 £11.20
11	MO3654490 Available to backorder	Spring	£1.40 £1.17
13	MO3749270 Available to backorder	Knob	£1.33 £1.11
15	MO2123070 Available to backorder	Screw	£1.33 £1.11
16	MO3L3786200/1 Available to backorder	Wire Sheath	£15.07 £12.56
21	MO2135150 Available to backorder	Screw	£1.40 £1.17
22	MO2432030 Available to backorder	Nut	£1.33 £1.11
23	MO2135160 Available to backorder	Screw	£1.40 £1.17
25	MO119216038/0 Available to backorder	Ball Bearing	£5.92 £4.93
26	MO3353080 Available to backorder	Seeger Ring	£1.40 £1.17
28	MO3L4121861/1 Available to backorder	Clutch Drum Assy	£20.32 £16.93
29	MO3642191 Available to backorder	Bearing Hub	£3.64 £3.03
31	MO4251204 Available to backorder	Transmission Pipe Assy Ø26	£68.99 £57.49
34	MO2135030 Available to backorder	Screw	£1.40 £1.17
35	MO3615000 Available to backorder	Line Cutter Blade	£8.84 £7.37
36	MO2432040 Available to backorder	Nut	£1.33 £1.11
37	MO2312150 Available to backorder	Washer	£1.33 £1.11
38	MO3L8563570/1 Available to backorder	Safety Cover Ass.Y	£26.32 £21.93
39	MO1911-9259-01 Available to backorder	Harness	£58.54 £48.78
42	MO2135020 Available to backorder	Screw	£1.40 £1.17
43	MO1L3630600/1 Available to backorder	Throttle Cable Adjuster	£5.76 £4.80
44	MO2412090 Available to backorder	Nut	£1.40 £1.17
57	MO2135050 Available to backorder	Screw	£1.33 £1.11
58	MO2653090 Available to backorder	Screw	£1.40 £1.17
65	MO3121170 Available to backorder	Oil Seal	£13.85 £11.54
66	MO1L3641700/1 Available to backorder	Use 3641700.1	£8.87 £7.39
67	MO3641640 Available to backorder	Upper Ring Nut	£10.07 £8.39
68	MO3612640 Available to backorder	Lower Ring Nut	£9.44 £7.87
72	MO4611880 In stock	4 Teeth Disck	£11.90 £9.92
81	MO1911-9228-01 Available to backorder	Profi Tap & Go Brushcutter Ggp03	£21.08 £17.57
