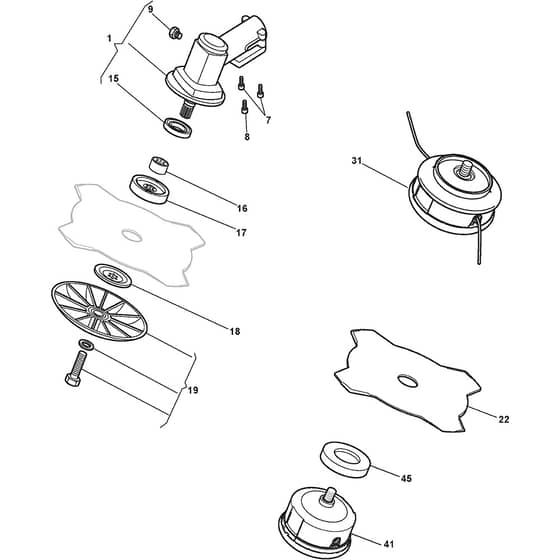

XB 55 FP - 2009-2012 - 285622003/05 - Castel Garden Brushcutter Gear Case Diagram

Name: XB 55 FP - 2009-2012 - 285622003/05 - Castel Garden Brushcutter Gear Case Diagram
SKU: xb_55_fp_285622003_05_gear_case-group
Price: 1.11 GBP
Availability: InStock

Part No. xb_55_fp_285622003_05_gear_case-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XB 55 FP - 2009-2012 - 285622003/05 - Castel Garden Brushcutter Gear Case Diagram

Description

Castel Garden XB 55 FP Parts Diagram

Product Name - XB 55 FP

Model Year - 2009-2012

Model Type - STAR 55 F

Art.N - 285622003/05

Engine Model -

	Part No.	Details
7	MO2135050 Available to backorder	Screw	£1.33 £1.11
8	MO2653090 Available to backorder	Screw	£1.39 £1.16
15	MO3121170 Available to backorder	Oil Seal	£13.86 £11.55
16	MO1L3641700/1 Available to backorder	Use 3641700.1	£8.86 £7.38
17	MO3641640 Available to backorder	Upper Ring Nut	£10.06 £8.38
18	MO3612640 Available to backorder	Lower Ring Nut	£9.44 £7.87
22	MO4611880 In stock	4 Teeth Disck	£11.90 £9.92
41	MO1911-9228-01 In stock	2 Hedges Nylon Head	£24.77 £20.64
45	MO3614950 Available to backorder	Cup	£1.36 £1.13
