XB 55 F - 2005 - 285522003/04 - Castel Garden Brushcutter Engine 02 Diagram

Description

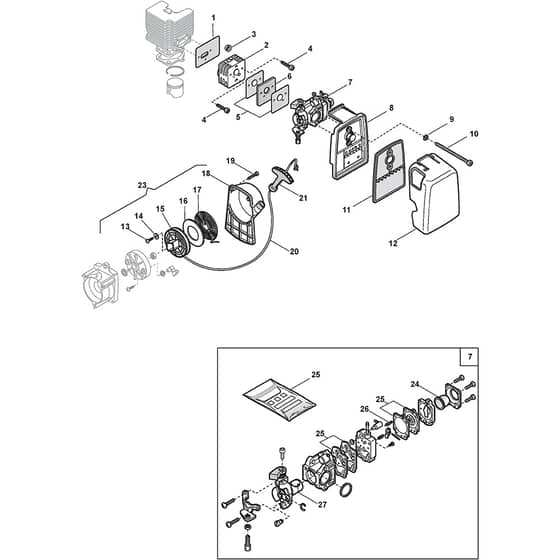

Castel Garden XB 55 F Parts Diagram

Product Name - XB55F

Model Year - 2005

Model Type - STAR 55 F

Art.N - 285522003/04

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO3750500 Available to backorder	Intake Manifold	£27.95 £23.29
4	MO2135130 Available to backorder	Screw	£1.40 £1.17
5	MO3724400 Available to backorder	Intake Carburator Gasket	£3.52 £2.93
6	MO3785070 Available to backorder	Heat Block	£7.28 £6.07
7	MO4353290 Available to backorder	Carburetor	£174.68 £145.57
9	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
11	MO3781640 Available to backorder	Air Filter	£7.46 £6.22
12	MO4563903 Available to backorder	Red Filter Cover	£18.86 £15.72
13	MO2123100 Available to backorder	Screw	£1.28 £1.07
14	MO3613420 Available to backorder	Washer	£1.33 £1.11
15	MO4562440 Available to backorder	Starter Pulley	£15.34 £12.78
17	MO4611480 Available to backorder	Starter Spring	£8.15 £6.79
19	MO2135040 Available to backorder	Screw	£1.38 £1.15
21	MO3750067 Available to backorder	Starter Handle	£2.12 £1.77
24	MO3744870 Available to backorder	Primer Carburettor	£13.37 £11.14
25	MO4353150 In stock	Diaphragm Gasket Set	£10.66 £8.88
