XB 55 - 2005 - 285520003/04 - Castel Garden Brushcutter Gear Case Diagram

Description

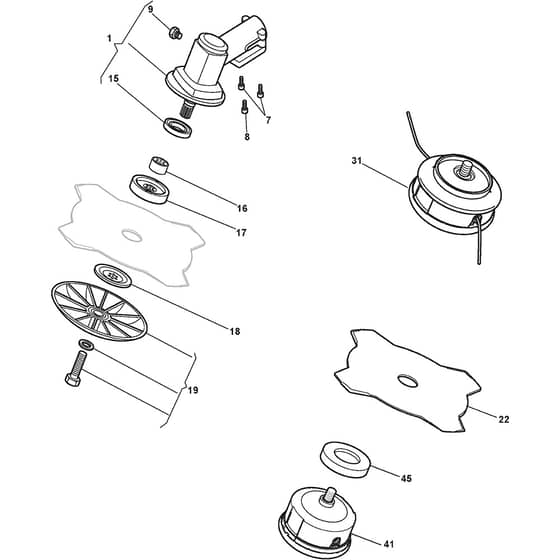

Castel Garden XB 55 Parts Diagram

Product Name - XB55

Model Year - 2005

Model Type - STAR 55 D

Art.N - 285520003/04

Engine Model -

	Part No.	Details
7	MO2135050 Available to backorder	Screw	£1.33 £1.11
8	MO2653090 Available to backorder	Screw	£1.39 £1.16
15	MO3121170 Available to backorder	Oil Seal	£13.86 £11.55
16	MO1L3641700/1 Available to backorder	Use 3641700.1	£8.86 £7.38
17	MO3641640 Available to backorder	Upper Ring Nut	£10.06 £8.38
18	MO3612640 Available to backorder	Lower Ring Nut	£9.44 £7.87
22	MO4611880 In stock	4 Teeth Disck	£11.90 £9.92
31	MO3L4353240/1 In stock	2 Hedges Nylon Head	£29.46 £24.55
41	MO1911-9228-01 In stock	2 Hedges Nylon Head	£24.77 £20.64
45	MO3614950 Available to backorder	Cup	£1.36 £1.13
