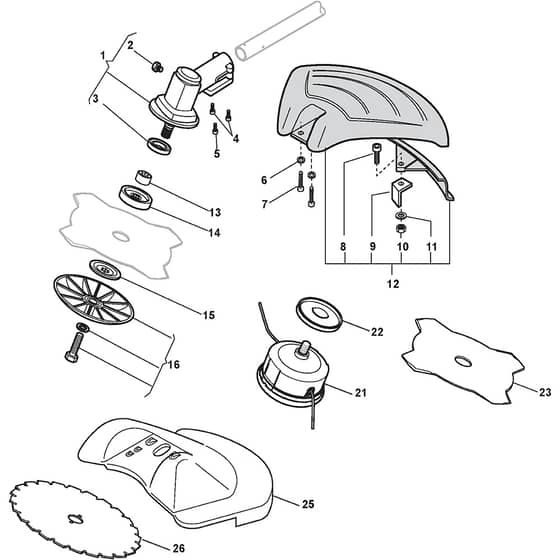

XB 51 DS - 2010-2012 - 281721003/09 - Castel Garden Brushcutter Gear Case Diagram

Name: XB 51 DS - 2010-2012 - 281721003/09 - Castel Garden Brushcutter Gear Case Diagram
SKU: xb_51_ds_281721003_09_gear_case-group
Price: 1.11 GBP
Availability: InStock

Part No. xb_51_ds_281721003_09_gear_case-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XB 51 DS - 2010-2012 - 281721003/09 - Castel Garden Brushcutter Gear Case Diagram

Description

Castel Garden XB 51 DS Parts Diagram

Product Name - XB 51 DS

Model Year - 2010-2012

Model Type - BC 50 DS

Art.N - 281721003/09

Engine Model -

	Part No.	Details
3	MO3121170 Available to backorder	Oil Seal	£13.86 £11.55
4	MO2135050 Available to backorder	Screw	£1.33 £1.11
5	MO2653090 Available to backorder	Screw	£1.39 £1.16
8	MO2135030 Available to backorder	Screw	£1.40 £1.17
9	MO3615000 Available to backorder	Line Cutter Blade	£8.83 £7.36
10	MO112154330/0 In stock	Nut	£1.55 £1.29
11	MO2312150 Available to backorder	Washer	£1.33 £1.11
12	MO3L8563570/1 Available to backorder	Safety Cover Assy	£26.32 £21.93
13	MO1L3641700/1 Available to backorder	Use 3641700.1	£8.86 £7.38
14	MO3641640 Available to backorder	Upper Ring Nut	£10.06 £8.38
15	MO3612640 Available to backorder	Lower Ring Nut	£9.44 £7.87
21	MO1911-9228-01 In stock	2 Hedges Nylon Head	£24.77 £20.64
22	MO3614950 Available to backorder	Plate	£1.36 £1.13
23	MO4611880 In stock	4 Teeth Disck	£11.90 £9.92
25	MO4562847 Available to backorder	Guard For Disk	£12.32 £10.27
26	MO6031185 Available to backorder	Profi 24 Theet 225 mm	£23.23 £19.36
