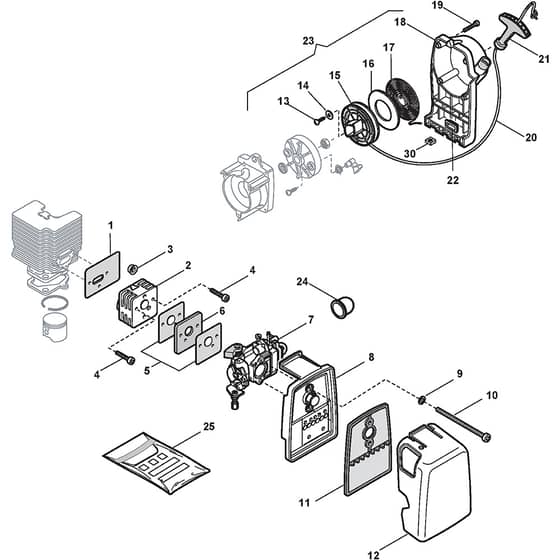

Castel Garden XB 36D Parts Diagram

Product Name - XB 36D

Model Year - 2007

Model Type - STAR 41 D

Art.N - 283621003/04

Engine Model -

	Part No.	Details
1	MO3724360 Available to backorder	Intake Manifold Gasket	£2.53 £2.11
4	MO2135050 Available to backorder	Screw	£1.33 £1.11
5	MO3724400 Available to backorder	Intake Carburator Gasket	£3.52 £2.93
7	MO1L4353270/1 Available to backorder	Carburetor	£190.03 £158.36
9	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
11	MO3781600 Available to backorder	Air Filter	£7.86 £6.55
12	MO4563673 Available to backorder	Filter Cover Red	£9.18 £7.65
14	MO3613420 Available to backorder	Washer	£1.33 £1.11
15	MO4562220 Available to backorder	Starter Pulley	£7.28 £6.07
16	MO3723640 Available to backorder	Disc For Starter Spring	£4.08 £3.40
19	MO2135040 Available to backorder	Screw	£1.38 £1.15
20	MO3784030 Available to backorder	Starter Cord	£2.11 £1.76
21	MO3750067 Available to backorder	Starter Handle	£2.12 £1.77
22	MO3745530 Available to backorder	Grommet	£3.52 £2.93
24	MO3744870 Available to backorder	Primer Carburettor	£13.38 £11.15
25	MO4353150 In stock	Diaphragm Gasket Set	£11.42 £9.52
30	MO2461030 Available to backorder	Square Nut M5 X 10 X 6	£1.33 £1.11
