XB 31 D - 2007 - 283121003/04 - Castel Garden Brushcutter Handle Transmission Diagram

Name: XB 31 D - 2007 - 283121003/04 - Castel Garden Brushcutter Handle Transmission Diagram
SKU: xb_31_d_283121003_04_handle_transmission-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XB 31 D - 2007 - 283121003/04 - Castel Garden Brushcutter Handle Transmission Diagram

Description

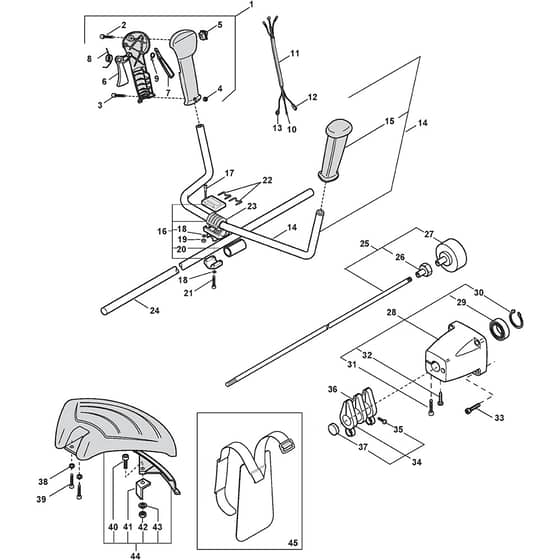

Castel Garden XB 31 D Parts Diagram

Product Name - XB31D

Model Year - 2007

Model Type - STAR 31 D

Art.N - 283121003/04

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO8563830 Available to backorder	Handle Assy	£24.19 £20.16
2	MO2123030 Available to backorder	Screw	£1.33 £1.11
3	MO2135050 Available to backorder	Screw	£1.33 £1.11
5	MO118800202/0 Available to backorder	Stop Switch	£1.82 £1.52
6	MO3L3743431/1 Available to backorder	Spring	£1.33 £1.11
7	MO3743441 Available to backorder	Safety Lever	£1.40 £1.17
8	MO1L3654270/1 Available to backorder	Spring	£1.40 £1.17
9	MO1L3654280/1 Available to backorder	Spring	£10.08 £8.40
10	MO4252720 Available to backorder	Throttle Cable	£7.51 £6.26
15	MO3L3744860/1 Available to backorder	Knob	£6.47 £5.39
17	MO2135120 Available to backorder	Screw	£1.40 £1.17
18	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
19	MO112154330/0 In stock	Nut	£1.55 £1.29
20	MO3721410 Available to backorder	Reduction	£1.38 £1.15
21	MO2123110 Available to backorder	Screw	£1.33 £1.11
22	MO3657470 Available to backorder	Handle Lock Duplex	£1.40 £1.17
24	MO8251211 Available to backorder	Transmission Pipe Assy	£112.14 £93.45
25	MO4251410 Available to backorder	Transmission Shaft Assy	£43.28 £36.07
27	MO3L4121881/1 Available to backorder	Clutch Drum Assy	£19.73 £16.44
28	MO8561600 Available to backorder	Support Transmission Assy	£31.82 £26.52
29	MO119216038/0 Available to backorder	Ball Bearing	£5.92 £4.93
30	MO3353080 Available to backorder	Seeger Ring	£1.40 £1.17
32	MO112728450/0 In stock	Screw	£1.55 £1.29
33	MO2135160 Available to backorder	Screw	£1.40 £1.17
40	MO2135030 Available to backorder	Screw	£1.40 £1.17
41	MO3615000 Available to backorder	Line Cutter Blade	£8.84 £7.37
42	MO2432040 Available to backorder	Nut	£1.33 £1.11
43	MO2312150 Available to backorder	Washer	£1.33 £1.11
44	MO3L8563570/1 Available to backorder	Safety Cover Assy	£26.32 £21.93
45	MO1911-9259-01 Available to backorder	Single Harness	£58.54 £48.78
