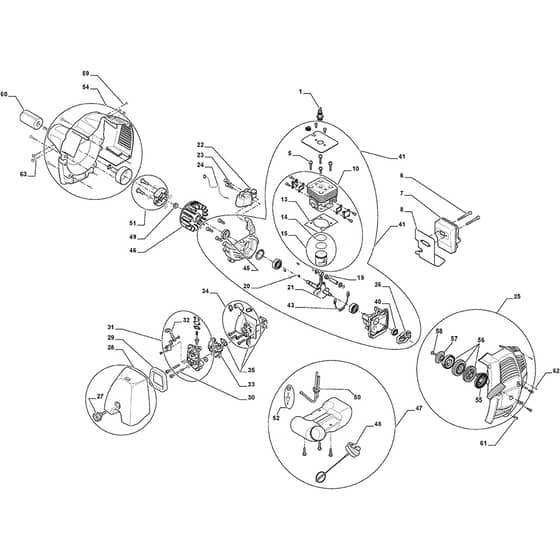

XB 27 J - 2008 - 281020103/MO8 - Castel Garden Brushcutter Engine Diagram

Name: XB 27 J - 2008 - 281020103/MO8 - Castel Garden Brushcutter Engine Diagram
SKU: xb_27_j_281020103_mo8_engine-group
Price: 0.99 GBP
Availability: InStock

Part No. xb_27_j_281020103_mo8_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XB 27 J - 2008 - 281020103/MO8 - Castel Garden Brushcutter Engine Diagram

Description

Castel Garden XB 27 J Parts Diagram

Product Name - XB 27 J

Model Year - 2008

Model Type - TB 27 J

Art.N - 281020103/MO8

Engine Model -

	Part No.	Details
1	8210 In stock	Spark Plug	Was £2.36 £1.97 Special Price £1.19 £0.99
14	MO123204004/0 Available to backorder	Piston Ring	£5.09 £4.24
15	MO183590003/0 Available to backorder	Piston Assy	£29.44 £24.53
19	MO123072001/0 Available to backorder	Needle Bearing	£3.52 £2.93
26	MO123082001/0 Available to backorder	Starter Cup	£8.45 £7.04
31	MO383781001/0 Available to backorder	Air Filter Holder	£18.88 £15.73
33	MO123054021/0 Available to backorder	Carburetor	£76.02 £63.35
40	MO119035154/0 Available to backorder	Seal Ring	£2.11 £1.76
45	MO112020001/0 Available to backorder	Seal Ring	£2.40 £2.00
46	MO183880004/0 Available to backorder	Flywheel Ass.Y	£28.27 £23.56
49	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
52	MO183520001/0 Available to backorder	Intake Filter Assy	£5.23 £4.36
54	MO383785001/0 Available to backorder	Support Trasm.Assy. Red	£46.48 £38.73
55	MO183037001/1 Available to backorder	Spring	£46.46 £38.72
56	MO183604001/0 Available to backorder	Starter Pulley	£43.64 £36.37
57	MO123445266/0 Available to backorder	Toothed Hub	£5.06 £4.22
61	MO2135010 Available to backorder	Screw	£1.33 £1.11
