XB 26 - 2004 - 282620003/04 - Castel Garden Brushcutter Carburetor Diagram

Name: XB 26 - 2004 - 282620003/04 - Castel Garden Brushcutter Carburetor Diagram
SKU: xb_26_282620003_04_carburetor-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

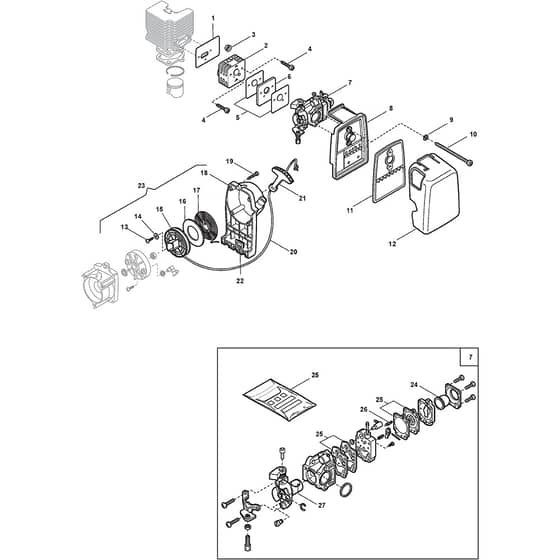

XB 26 - 2004 - 282620003/04 - Castel Garden Brushcutter Carburetor Diagram

Description

Castel Garden XB 26 Parts Diagram

Product Name - XB 26

Model Year - 2004

Model Type - STAR 26

Art.N - 282620003/04

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO3724360 Available to backorder	Intake Manifold Gasket	£2.53 £2.11
4	MO2135050 Available to backorder	Screw	£1.33 £1.11
5	MO3724400 Available to backorder	Intake Carburator Gasket	£3.52 £2.93
6	MO3785070 Available to backorder	Heat Block	£7.28 £6.07
7	MO4353100 Available to backorder	Carburetor	£168.92 £140.77
9	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11

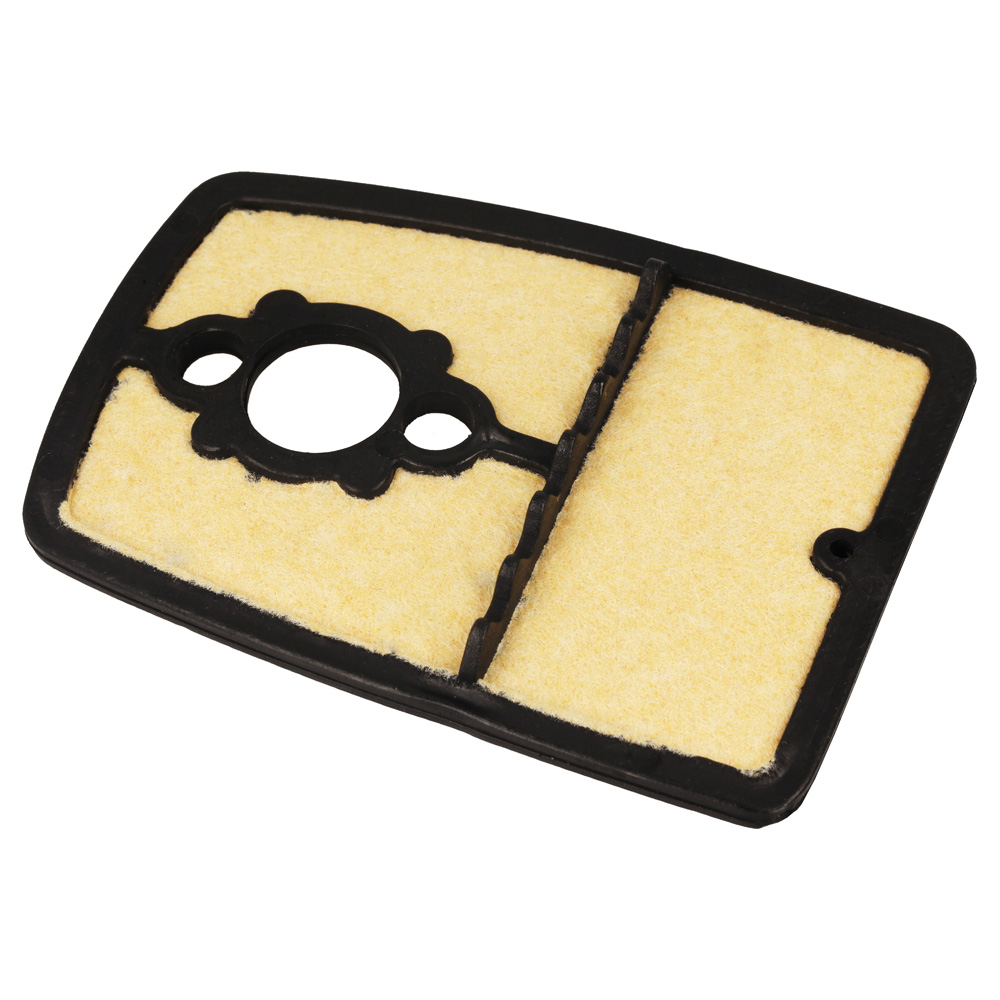

11	MO3781630 Available to backorder	Air Filter	£7.70 £6.42
13	MO2123100 Available to backorder	Screw	£1.28 £1.07
14	MO3613420 Available to backorder	Washer	£1.33 £1.11
15	MO4562220 Available to backorder	Starter Pulley	£7.28 £6.07
16	MO3723640 Available to backorder	Disc For Starter Spring	£4.08 £3.40
17	MO4611480 Available to backorder	Starter Spring	£8.15 £6.79
19	MO2135040 Available to backorder	Screw	£1.38 £1.15
20	MO3784030 Available to backorder	Starter Cord	£2.12 £1.77
21	MO3750067 Available to backorder	Starter Handle	£2.12 £1.77
22	MO3745530 Available to backorder	Grommet	£3.52 £2.93
24	MO3744870 Available to backorder	Primer Carburettor	£13.37 £11.14
25	MO4353150 In stock	Diaphragm Gasket Set	£10.66 £8.88
