XA 53 HV - 2020 - 292158838/C20 - Castel Garden Rotary Mower Piston/Connecting Rod Diagram

Name: XA 53 HV - 2020 - 292158838/C20 - Castel Garden Rotary Mower Piston/Connecting Rod Diagram
SKU: xa_53_hv_292158838_c20_piston_connecting_rod-group
Price: 1.56 GBP
Availability: InStock

Part No. xa_53_hv_292158838_c20_piston_connecting_rod-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

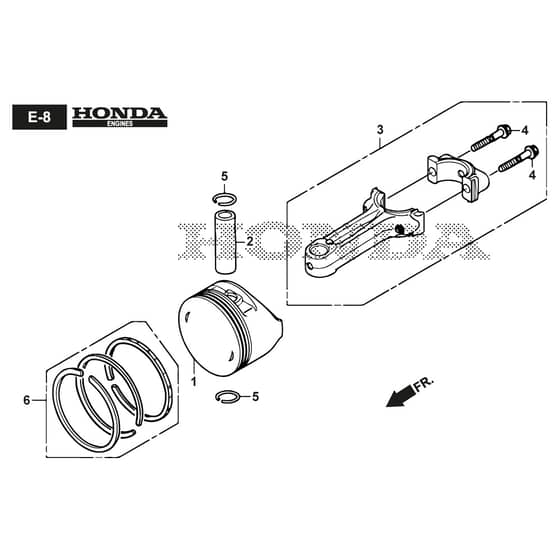

XA 53 HV - 2020 - 292158838/C20 - Castel Garden Rotary Mower Piston/Connecting Rod Diagram

Description

Castel Garden XA 53 HV Parts Diagram

Product Name - XA 53 HV

Model Year - 2020

Model Type - NP 534 TR 3S

Art.N - 292158838/C20

Engine Model -

	Part No.	Details
1	HP13101-Z9L-000 Available to backorder	Piston	£38.34 £31.95
2	HP13111-ZE0-000 Available to backorder	Pin. Piston	£10.57 £8.81
3	HP13200-Z9L-000 Available to backorder	Rod Assy. Connecting	£51.80 £43.17
4	HP90001-Z1L-000 Available to backorder	Bolt. Connecting Rod	£3.89 £3.24
5	HP90551-ZE0-000 Available to backorder	Clip. Piston Pin. 13mm	£1.87 £1.56
6	HP13010-Z9L-003 Available to backorder	Ring Set. Piston	£32.17 £26.81
