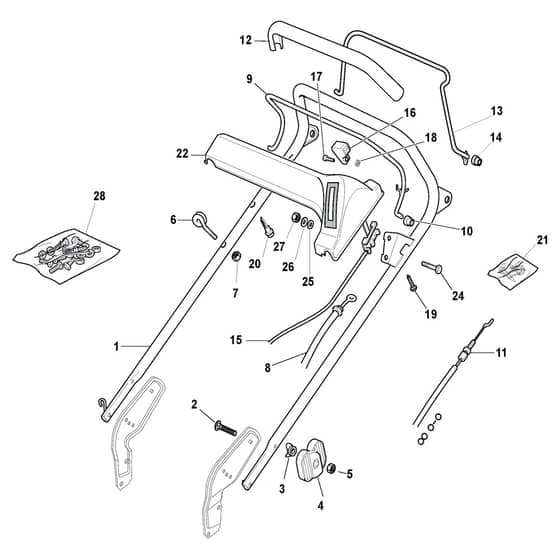

XA 53 HV - 2016 - 292148838/C16 - Castel Garden Rotary Mower Handle Upper Part Diagram

Name: XA 53 HV - 2016 - 292148838/C16 - Castel Garden Rotary Mower Handle Upper Part Diagram
SKU: xa_53_hv_292148838_c16_handle_upper_part-group
Price: 1.26 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XA 53 HV - 2016 - 292148838/C16 - Castel Garden Rotary Mower Handle Upper Part Diagram

Description

Castel Garden XA 53 HV Parts Diagram

Product Name - XA 53 HV

Model Year - 2016

Model Type - NP 534 TR 3S

Art.N - 292148838/C16

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381007028/1 Available to backorder	Handle. Upper Part Black	£61.80 £51.50
2	MO112819121/0 Available to backorder	Screw From 01-9-2017	£1.97 £1.64
3	MO122671651/0 Available to backorder	Washer	£1.97 £1.64
4	MO122399900/0 In stock	Black Knob	£1.55 £1.29
5	MO112293200/0 In stock	Nut	£1.55 £1.29
6	MO122430309/0 Available to backorder	Spring	£3.10 £2.58
7	MO112154330/0 In stock	Nut	£1.55 £1.29
8	MO181000616/1 Available to backorder	Cable. Thread Engine Brake HON . GGP Engine From 01-9-2006	£13.66 £11.38
8	MO181000628/0 Available to backorder	Cable. Thread Engine Brake HON Engine To 31-8-2002	£19.78 £16.48
8	MO181000641/0 Available to backorder	Cable. Thread Engine Brake HON Engine From 01-9-2003 To 31-8-2006	£14.80 £12.33
9	MO181003291/3 Available to backorder	Lever. Engine Brake From 01-9-2006	£14.92 £12.43
10	MO122041966/0 Available to backorder	Bushing	£1.55 £1.29
11	MO381000673/0 Available to backorder	Cable Rear Drive (Bi. Ci. Di.)	£19.63 £16.36
11	MO381000669/0 Available to backorder	Cable Rear Drive (General Transmission)	£19.08 £15.90
12	MO122291050/0 Available to backorder	Handgrip Black	£14.22 £11.85
13	MO181003288/1 Available to backorder	Driving Lever	£11.62 £9.68
14	MO322041965/1 Available to backorder	Bushing From 01-9-2004	£1.55 £1.29
15	MO181007092/0 Available to backorder	Throttle Cable ST.HON.Tecumseh Engine	£26.75 £22.29
16	MO122399801/0 Available to backorder	Black Knob	£1.52 £1.27
17	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
18	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
19	MO112728460/0 Available to backorder	Screw	£1.55 £1.29
20	MO122943006/0 Available to backorder	Screw	£1.82 £1.52
22	MO422120150/0 Available to backorder	Red Dashboard	£15.23 £12.69
23	MO114356692/0 Available to backorder	Throttle Label HON Engine	£1.51 £1.26
24	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
25	MO112523020/0 In stock	Washer	£1.55 £1.29
26	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
28	MO381008610/1 Available to backorder	Outfit. Screws From 01-9-2010	£11.62 £9.68
