XA 53 BSV - 2012-2013 - 292148823/C12 - Castel Garden Rotary Mower Handle Upper Part Diagram

Name: XA 53 BSV - 2012-2013 - 292148823/C12 - Castel Garden Rotary Mower Handle Upper Part Diagram
SKU: xa_53_bsv_292148823_c12_handle_upper_part-group
Price: 1.26 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

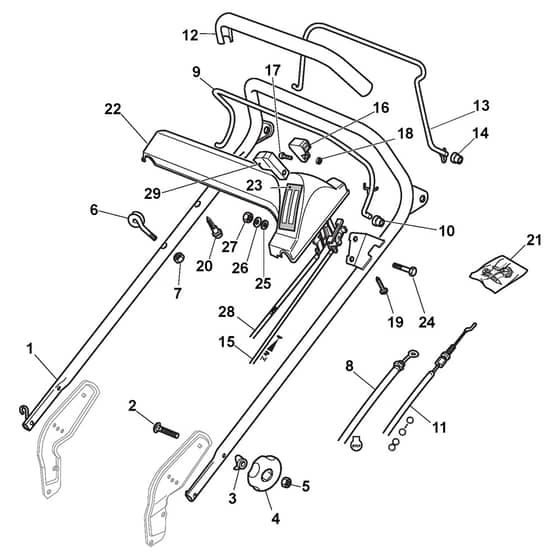

XA 53 BSV - 2012-2013 - 292148823/C12 - Castel Garden Rotary Mower Handle Upper Part Diagram

Description

Castel Garden XA 53 BSV Parts Diagram

Product Name - XA 53 BSV

Model Year - 2012-2013

Model Type - NP 534 TR 3S

Art.N - 292148823/C12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381007028/1 Available to backorder	Handle. Upper Part Black	£61.80 £51.50
2	MO112819105/0 Available to backorder	Screw	£1.97 £1.64
3	MO122671651/0 Available to backorder	Washer	£1.97 £1.64
4	MO122399900/0 In stock	Black Knob	£1.55 £1.29
5	MO112293200/0 In stock	Nut	£1.55 £1.29
6	MO122430309/0 Available to backorder	Spring	£3.10 £2.58
7	MO112154330/0 In stock	Nut	£1.55 £1.29
8	MO181000757/0 Available to backorder	Cable. Thread Engine Brake B&S Engine	£13.37 £11.14
9	MO181003291/3 Available to backorder	Lever. Engine Brake From 01-9-2006	£14.92 £12.43
10	MO122041966/0 Available to backorder	Bushing	£1.55 £1.29
11	MO381000670/0 Available to backorder	Dirve Cable F.R. Pan-Np 3Speed From 01-9-2004	£18.86 £15.72
11	MO381001145/0 In stock	Cable Rear Drive To 31-8-2003	£30.97 £25.81
11	MO381001139/0 Available to backorder	Cable Rear Drive From 01-9-2003 To 31-8-2004	£30.97 £25.81
12	MO122291050/0 Available to backorder	Handgrip Black	£14.22 £11.85
13	MO181003288/1 Available to backorder	Driving Lever	£11.62 £9.68
14	MO322041965/1 Available to backorder	Bushing From 01-9-2004	£1.55 £1.29
15	MO181007091/0 Available to backorder	Throttle Cable B&S Engine . Tecumseh Engine	£23.09 £19.24
16	MO122399801/0 Available to backorder	Black Knob	£1.52 £1.27
17	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
18	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
19	MO112728460/0 Available to backorder	Screw	£1.55 £1.29
20	MO122943006/0 Available to backorder	Screw	£1.82 £1.52
22	MO422120150/0 Available to backorder	Red Dashboard	£15.23 £12.69
23	MO114356795/1 Available to backorder	Throttle Label	£1.51 £1.26
24	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
25	MO112523020/0 In stock	Washer	£1.55 £1.29
26	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
28	MO181007099/0 Available to backorder	Cable. Speed Drive Control	£23.65 £19.71
29	MO122399802/0 Available to backorder	Yellow Knob	£1.55 £1.29
