XA 50 GS - 2017-2019 - 295508043/C17 - Castel Garden Rotary Mower Handle Upper Part Diagram

Name: XA 50 GS - 2017-2019 - 295508043/C17 - Castel Garden Rotary Mower Handle Upper Part Diagram
SKU: xa_50_gs_295508043_c17_handle_upper_part-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

XA 50 GS - 2017-2019 - 295508043/C17 - Castel Garden Rotary Mower Handle Upper Part Diagram

Description

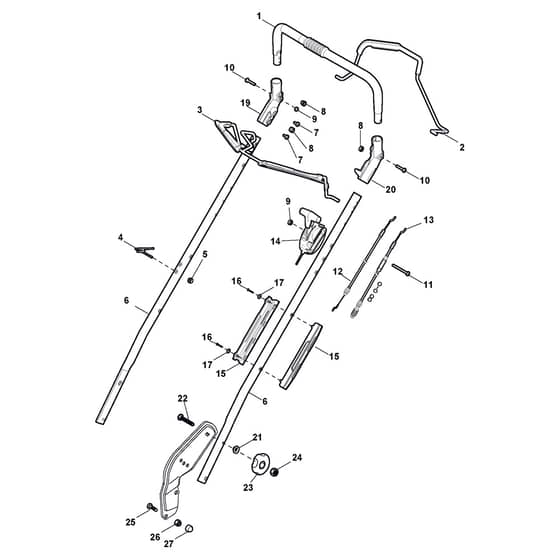

Castel Garden XA 50 GS Parts Diagram

Product Name - XA 50 GS

Model Year - 2017-2019

Model Type - PAN 504 TR

Art.N - 295508043/C17

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006670/2 Available to backorder	Handle Tube	£27.88 £23.23
2	MO381003349/0 Available to backorder	Lever. Driving	£47.87 £39.89
3	MO381003472/1 Available to backorder	Lever. Engine Brake Black From 01-9-2016	£49.26 £41.05
4	MO122430309/0 Available to backorder	Spring	£3.10 £2.58
5	MO112154330/0 In stock	Nut	£1.55 £1.29
6	MO381007047/0 Available to backorder	Handle. Upper Part Grey	£66.16 £55.13
7	MO112735662/1 In stock	Screw	£2.40 £2.00
8	MO322041967/1 Available to backorder	Bushing From 01-9-2013	£1.55 £1.29
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO112728721/0 Available to backorder	Screw	£1.82 £1.52
11	MO112727786/0 Available to backorder	Screw	£1.97 £1.64
12	MO181030077/0 Available to backorder	Cable. Thread Engine Brake	£17.20 £14.33

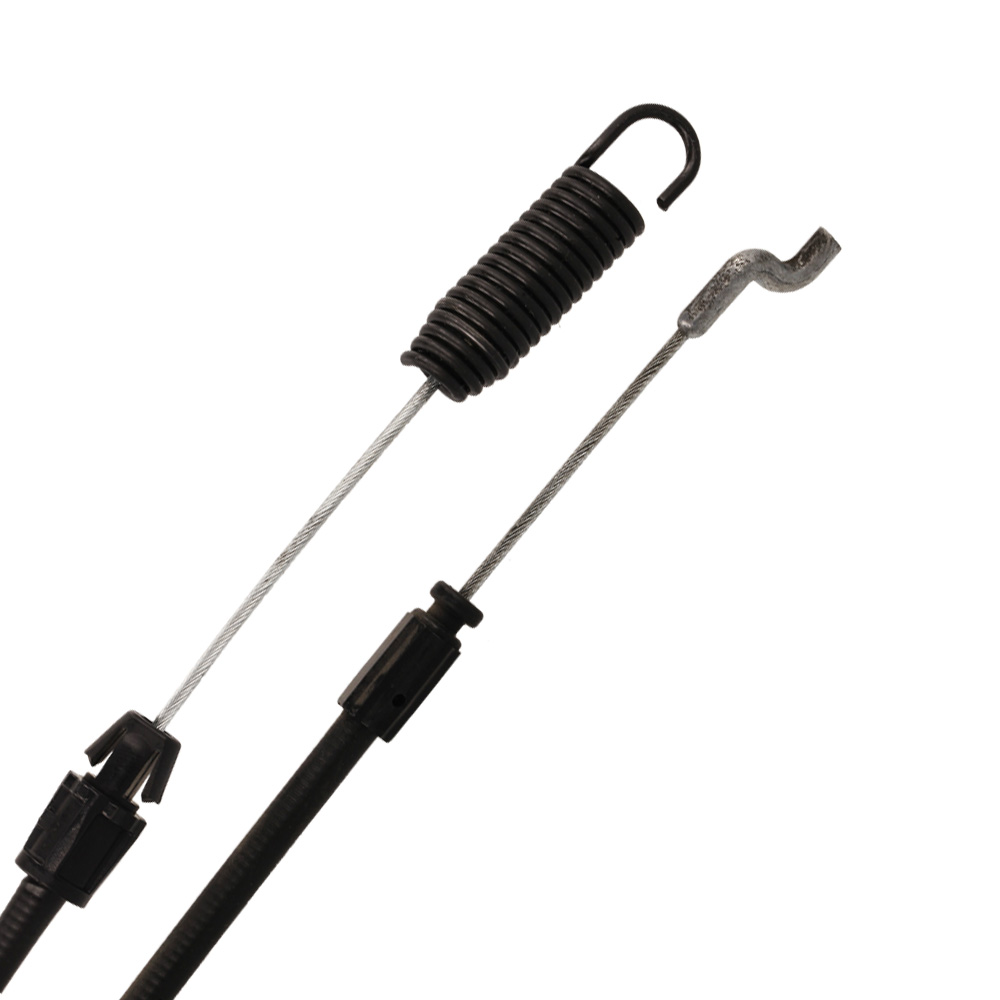

13	MO381030078/1 Available to backorder	Cable Rear Drive From 01-9-2015	£21.95 £18.29
14	MO181007199/0 Available to backorder	Throttle Cable HON . GGP Engine	£54.07 £45.06
15	MO322806644/0 Available to backorder	Protection	£2.40 £2.00
16	MO112727812/0 Available to backorder	Screw	£1.55 £1.29
17	MO112523000/1 Available to backorder	Washer	£1.55 £1.29
19	MO322488301/0 Available to backorder	Joint Sleeve Grey Right	£24.22 £20.18
20	MO322488303/0 Available to backorder	Joining Sleeve Grey Left	£24.22 £20.18
21	MO122671651/0 Available to backorder	Washer	£1.97 £1.64
22	MO112819105/0 Available to backorder	Screw	£1.97 £1.64
23	MO122399900/0 In stock	Black Knob	£1.55 £1.29
24	MO112293200/0 In stock	Nut	£1.55 £1.29
25	MO112793301/0 In stock	Screw	£1.55 £1.29
26	MO112155000/0 In stock	Nut	£1.55 £1.29
27	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
