Billy Goat VQ802SPH - VQ Quiet Vacuum Main Diagram

Name: Billy Goat VQ802SPH - VQ Quiet Vacuum Main Diagram
SKU: vq802sph_vq_quiet_vacuum_main-group
Price: 0.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat VQ802SPH - VQ Quiet Vacuum Main Diagram

Description

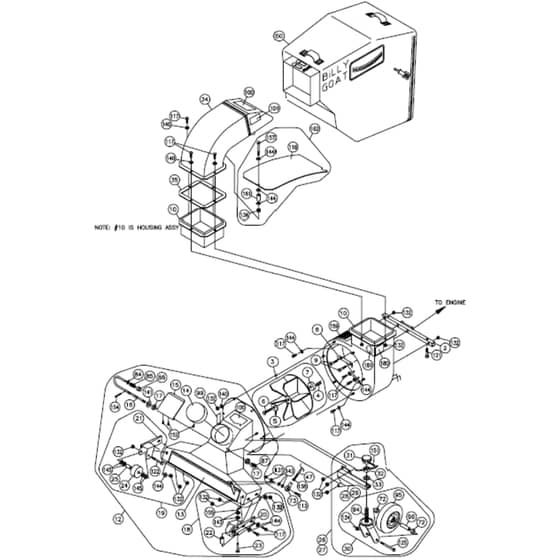

VQ802SPH Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	BG830244 Available to backorder	Impeller Assy Vq	£381.26 £317.72
4	BG9201125 Available to backorder	Key 025 Sq X 275"	£2.18 £1.82
5	BG8177013 Available to backorder	Washer Lock 7/16 Twisted Tooth	£0.78 £0.65
16	BG830194 Available to backorder	Rod Diverter Vq	£24.12 £20.10
17	BG830176 Available to backorder	Grommet Flg 1/2 Molded	£1.61 £1.34
18	BG830197-S Available to backorder	Brkt Bogie Assy Lh	£89.02 £74.18
19	BG830198-S Available to backorder	Brkt Bogie Assy Rh	£75.08 £62.57
20	BG830199 Available to backorder	Brkt Bogie Wa Lh	£56.96 £47.47
21	BG830200 Available to backorder	Brkt Bogie Wa Rh	£53.60 £44.67
22	BG850204 Available to backorder	Roller Guide	£15.12 £12.60
23	BG850205 Available to backorder	Pin Roller	£3.12 £2.60
24	BG800149 Available to backorder	Wheel Bogie 3"	£21.89 £18.24
25	BG850150-03 Available to backorder	Spacer 5/16 X 1 5/8	£6.44 £5.37
26	BG830540 Available to backorder	Caster & Brkt Lh Assy Semi-Pneu Vq	£298.80 £249.00
27	BG830541-S Available to backorder	Caster & Brkt Rh Assy Semi-Pneuvq	£298.80 £249.00
28	BG830147 Available to backorder	Brkt Lh Wa 8" Caster	£93.36 £77.80
29	BG830148 Available to backorder	Brkt Rh Wa 8" Caster	£89.32 £74.43
30	BG830539-S Available to backorder	Caster Assy 8" Semi-Pneu 3/4 Nc	£206.66 £172.22
31	BG850154 Available to backorder	Knob Hand	£9.80 £8.17
32	BG800227 Available to backorder	Nut Wing Wa	£23.82 £19.85
33	BG800109 Available to backorder	Washer 3/4 Nylon	£1.08 £0.90
35	BG830160 Available to backorder	Gasket Flange Transition Vq	£8.24 £6.87
37	BG830161 Available to backorder	Handle Lower Vq	£58.82 £49.02
39	BG800178 Available to backorder	Rod Bag Loop	£2.89 £2.41
41	BG890295 Available to backorder	Handle Assy Upper W /Grip	£265.44 £221.20
43	BG830132 Available to backorder	Control Throttle Assy Vq Service	£53.92 £44.93
50	BG830320 Available to backorder	Bag Assy Vq / Turf Bag 830282	£350.68 £292.23
54	BG830177 Available to backorder	Wheel 13" X 6 5" Pneu Sp	£175.52 £146.27
55	BG850232 Available to backorder	Brg Assy Vqsp	£44.42 £37.02
57	BG830179 Available to backorder	Transmission 5 Speed 1 Rev W /Brake (Tecumseh)	£838.46 £698.72
58	BG830020 Available to backorder	Chain #41 X 68P Vqsp	£57.95 £48.29
59	BG830223 Available to backorder	Belt “V ” 4L X 34" Outside Lg	£44.60 £37.17
60	BG830180-S Available to backorder	Pulley 50 Dia A Sec 0 625 Id	£77.50 £64.58
62	BG5108777 Available to backorder	Pulley Idler	£16.82 £14.02
63	BG800888 Available to backorder	Bolt Idler	£9.02 £7.52
64	BG830527 Available to backorder	Arm Idler Wa Vq	£65.04 £54.20
65	BG400217 Available to backorder	Spring	£12.54 £10.45
70	BG830254 Available to backorder	Guard Chain Vq Weld	£49.22 £41.02
72	BG800421 Available to backorder	Spacer 3/4" X 0421"	£1.28 £1.07
74	BG830210 Available to backorder	Cable Clutch Assy	£34.92 £29.10
75	BG830504-S Available to backorder	Control Shift	£327.60 £273.00
77	BG830519-S Available to backorder	Control Assy Vqsp	£341.04 £284.20
80	BG830235 Available to backorder	Rod Bail Clutch	£104.26 £86.88
83	BG830133 Available to backorder	Wire Belt Guide Vq	£21.12 £17.60
85	BG400332 Available to backorder	Spring Compression	£2.54 £2.12
86	BG400330 Available to backorder	Spacer	£17.28 £14.40
87	BG890142 Available to backorder	Spring Door	£3.71 £3.09
89	BG900327 Available to backorder	Label Danger Guards	£3.71 £3.09
90	BG830507 Available to backorder	Wire Stop Gear Selector	£11.89 £9.91
91	BG9201084 Available to backorder	Key Sq 3/16 X 1 3/4	£2.40 £2.00
92	BG800177 Available to backorder	Washer 5/16 Twisted Tooth	£3.74 £3.12
95	BG830538 Available to backorder	Wheel & Tire Assy 8" 3/4" Brg (Semi- Pneu)	£73.62 £61.35
96	BG830144 Available to backorder	Spacer Spanner	£3.12 £2.60
100	BG400424 Available to backorder	Label Danger	£3.71 £3.09
101	BG810736 Available to backorder	Label Danger Flying Material	£3.71 £3.09
104	BG900471 Available to backorder	Pin Hair	£1.28 £1.07
107	BG500281 Available to backorder	Switch Rocker	£12.92 £10.77
117	BG8041026 Available to backorder	Screw Cap 5/16-18 X 3/4"	£0.97 £0.81
119	BG8041029 Available to backorder	Screw Cap 5/16-18 X 1 1/4"	£0.97 £0.81
121	BG8041031 Available to backorder	Screw Cap 5/16-18 X 1 3/4"	£0.97 £0.81
122	BG8041034 Available to backorder	Screw Cap 5/16-18 X 2 1/2"	£0.97 £0.81
123	BG8024039 Available to backorder	Bolt Carriage 5/16-18 X 3/4	£0.97 £0.81
124	BG8059135 Available to backorder	Screw #10-24Nc X 5/8 Hex	£0.97 £0.81
125	BG8041107 Available to backorder	Screw Cap 1/2-10 X 4 1/2"	£3.26 £2.72
131	BG8160001 Available to backorder	Nut Lock 1/4 Nc	£0.97 £0.81
132	BG8160002 Available to backorder	Nut Lock 5/16 Nc	£0.97 £0.81
133	BG8160003 Available to backorder	Nut Lock 3/8 Nc	£1.20 £1.00
134	BG8160005 Available to backorder	Nut Lock 1/2 Nc	£0.97 £0.81
135	BG8161042 Available to backorder	Nut Lock 3/8 Nc Thin Ht	£1.20 £1.00
139	BG8172007 Available to backorder	Washer Sae 1/4	£0.78 £0.65
140	BG8172008 Available to backorder	Washer Sae 5/16	£0.78 £0.65
141	BG8172009 Available to backorder	Washer Sae 3/8	£1.28 £1.07
142	BG8172015 Available to backorder	Washer Sae 3/4	£0.78 £0.65
143	BG8171002 Available to backorder	Washer Flat Cut 1/4	£0.78 £0.65
144	BG8171003 Available to backorder	Washer Flat Cut 5/16	£0.78 £0.65
145	BG8171004 Available to backorder	Washer Flat Cut 3/8	£1.20 £1.00
146	BG850238 Available to backorder	Washer 3/4 (0765 X 125 X 006)	£1.08 £0.90
149	BG8177011 Available to backorder	Washer Lock 5/16	£0.78 £0.65
151	BG8059143 Available to backorder	Screw Mach #10-24 X 2"	£0.97 £0.81
152	BG8122082 Available to backorder	Screw Sht Mtl 1/4 Ab X 3/4	£1.61 £1.34
156	BG8197031 Available to backorder	Pin Cotter 1/8 X 1"	£0.78 £0.65
157	BG8041035 Available to backorder	Screw Cap 5/16-18 X 2 3/4	£0.97 £0.81
168	BG900455 Available to backorder	Nut 1/4-20 Washer Face	£1.08 £0.90
169	BG8164005 Available to backorder	Nut Lock #10-24 Nc Lt	£0.97 £0.81
171	BG8172005 Available to backorder	Washer #10 Flat Sae	£0.78 £0.65
175	BG8181007 Available to backorder	Washer Lock - Ext 1/4	£0.78 £0.65
180	BG100346 Available to backorder	Label Ear Eye Breathing	£3.71 £3.09
