VILLY 1600i - 2014 - 295440665/AGK - Castel Garden Rotary Mower Electric Motor and Blade Diagram

Name: VILLY 1600i - 2014 - 295440665/AGK - Castel Garden Rotary Mower Electric Motor and Blade Diagram
SKU: villy_1600i_295440665_agk_electric_motor_and_blade-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

VILLY 1600i - 2014 - 295440665/AGK - Castel Garden Rotary Mower Electric Motor and Blade Diagram

Description

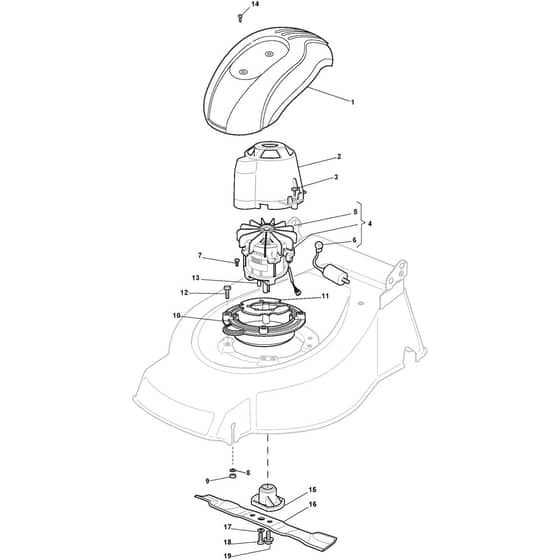

Castel Garden VILLY 1600i Parts Diagram

Product Name - VILLY 1600i

Model Year - 2014

Model Type - CS 430

Art.N - 295440665/AGK

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122055065/0 Available to backorder	Ciao Cover Black	£11.94 £9.95
2	MO322785061/1 Available to backorder	Support. Cover	£5.92 £4.93
3	MO112728710/0 Available to backorder	Screw	£1.33 £1.11
5	MO118740051/0 Available to backorder	Fan RST	£4.97 £4.14
5	MO118740054/0 Available to backorder	Fan Motor Atb ATB	£9.14 £7.62
6	MO118222038/0 Available to backorder	Condenser (RST - HLT 1600W)	£30.97 £25.81
6	MO118222045/0 Available to backorder	Condenser 16 Μf (Atb - 1600W)	£19.30 £16.08
7	MO112735410/0 Available to backorder	Screw	£1.55 £1.29
9	MO112293200/0 In stock	Nut	£1.55 £1.29
10	MO322207211/4 Available to backorder	Electrical Motor Flange	£6.60 £5.50
11	MO322720360/2 Available to backorder	Ventilation Screen	£3.24 £2.70
12	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
13	MO112139440/0 Available to backorder	Key	£1.97 £1.64
14	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
15	MO322463186/3 Available to backorder	Blade Hub	£8.08 £6.73
16	MO181004396/0 Available to backorder	Blade Winged	£20.03 £16.69
16	MO181004341/3 In stock	Mulching Blade	£12.79 £10.66
17	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
18	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
19	MO381004352/1 In stock	Screw	£4.08 £3.40
