VILLA SPRING - 2021 - 2F2720421/S16 - Stiga Front Mower PTO Diagram

Description

Stiga VILLA SPRING Parts Diagram

Product Name - VILLA SPRING

Model Year - 2021

Model Type - V 301

Art.N - 2F2720421/S16

Engine Model - PowerBuilt 3130 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-2551-01 Available to backorder	Knob	£11.18 £9.32
2	MO1134-5276-01 Available to backorder	Control Lever	£42.23 £35.19
3	MO112692080/0 Available to backorder	Screw	£1.55 £1.29
4	MO112155000/0 In stock	Nut	£1.55 £1.29
5	MO9840-7716-16 Available to backorder	Screw	£1.97 £1.64
7	MO1134-5356-01 Available to backorder	Strut	£19.99 £16.66
8	MO1134-3047-01 Available to backorder	Spacer	£7.74 £6.45
9	MO1134-5271-01 Available to backorder	Control Bracket	£35.18 £29.32
10	MO1134-5274-02 Available to backorder	Spacer	£9.37 £7.81
11	MO9997-0812-02 Available to backorder	Screw	£1.69 £1.41
12	MO1134-3573-06 Available to backorder	Pto Cable	£32.38 £26.98
14	MO1134-1242-02 Available to backorder	Spring	£10.20 £8.50
19	MO9600-0251-01 Available to backorder	Key	£6.47 £5.39

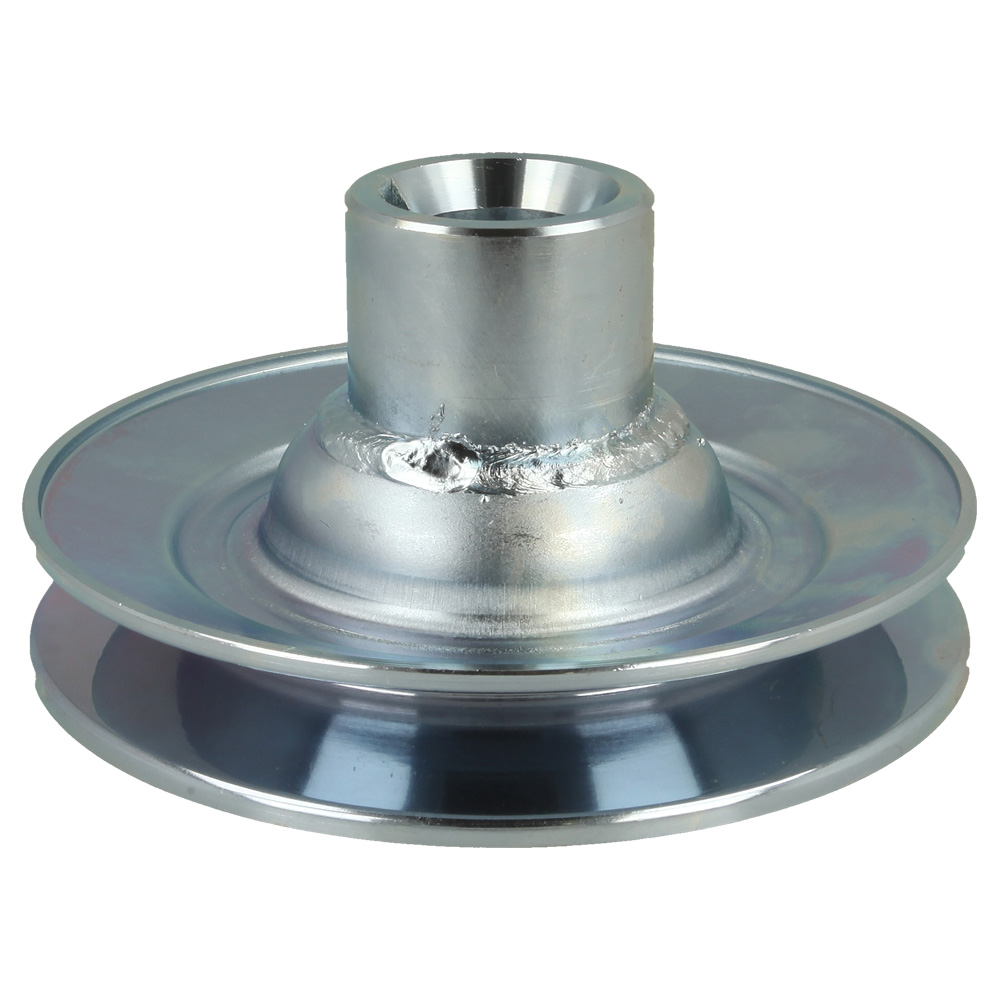

20	MO1137-0081-01 Available to backorder	Engine Pulley	£30.97 £25.81
21	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
22	MO1134-5058-01 Available to backorder	Belt Guide	£19.01 £15.84
23	MO1134-5017-02 Available to backorder	Washer	£2.81 £2.34
24	MO9987-5332-16 Available to backorder	Screw	£2.12 £1.77
26	MO1134-5057-01 Available to backorder	Belt Guide	£18.43 £15.36
27	MO9739-1031-22 In stock	Nut	£1.97 £1.64
29	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
30	MO1134-4164-03 Available to backorder	Brake Pad	£30.97 £25.81
31	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
32	MO9959-0820-16 In stock	Screw	£1.55 £1.29
33	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
35	MO1137-0144-01 Available to backorder	Tension Arm Assy	£40.82 £34.02
36	MO387605008/0 In stock	Tension Roller (Grey)	£35.20 £29.33
37	MO112521360/0 In stock	Washer	£1.55 £1.29
39	MO112794400/0 Available to backorder	Screw	£1.91 £1.59
42	MO1134-1565-10 Available to backorder	Spacer	£8.23 £6.86

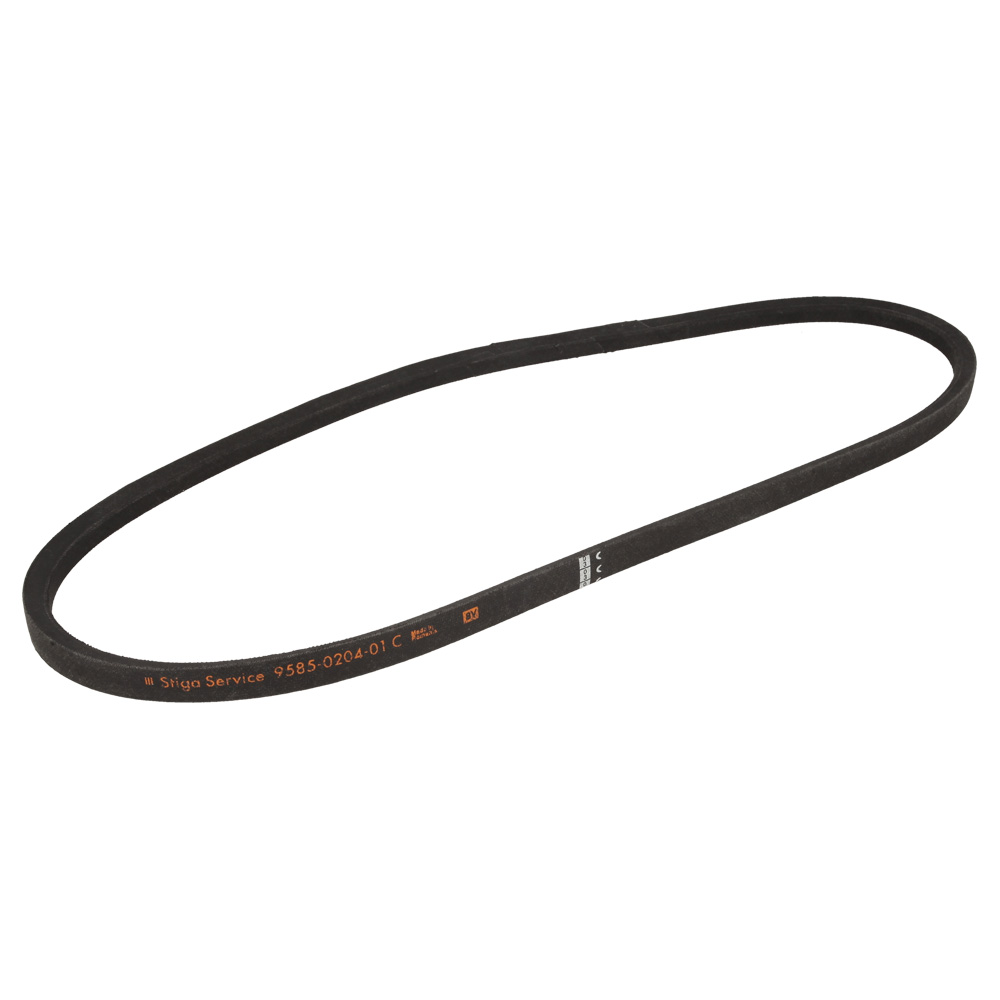

43	MO1134-9146-01 Available to backorder	V-Belt	£33.67 £28.06
44	MO9997-1070-12 In stock	Screw	£3.52 £2.93
48	MO387605002/0 Available to backorder	Double Pulley Assy	£83.06 £69.22
50	MO1134-1839-02 Available to backorder	Shaft	£18.10 £15.08
51	MO1134-3974-01 Available to backorder	Spring	£12.10 £10.08
52	MO1134-5037-01 Available to backorder	Mounting Bracket (Black)	£60.54 £50.45
58	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
59	MO1134-4650-01 Available to backorder	Pulley Bracket	£57.13 £47.61

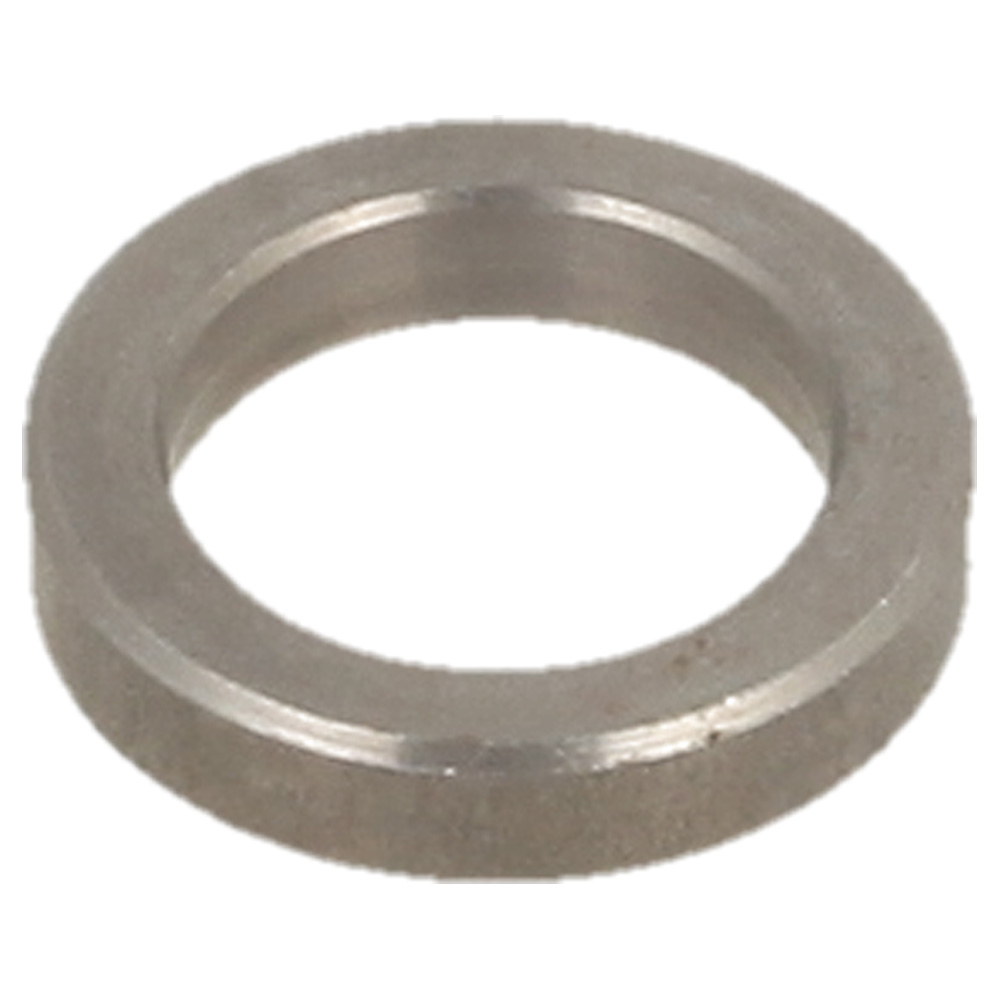

60	MO1134-0052-00 Available to backorder	Spacer	£8.52 £7.10
62	MO387605015/0 Available to backorder	Intermediate Belt Pulley	£90.10 £75.08
65	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
67	MO387773553/0 Available to backorder	Bracket	£59.12 £49.27

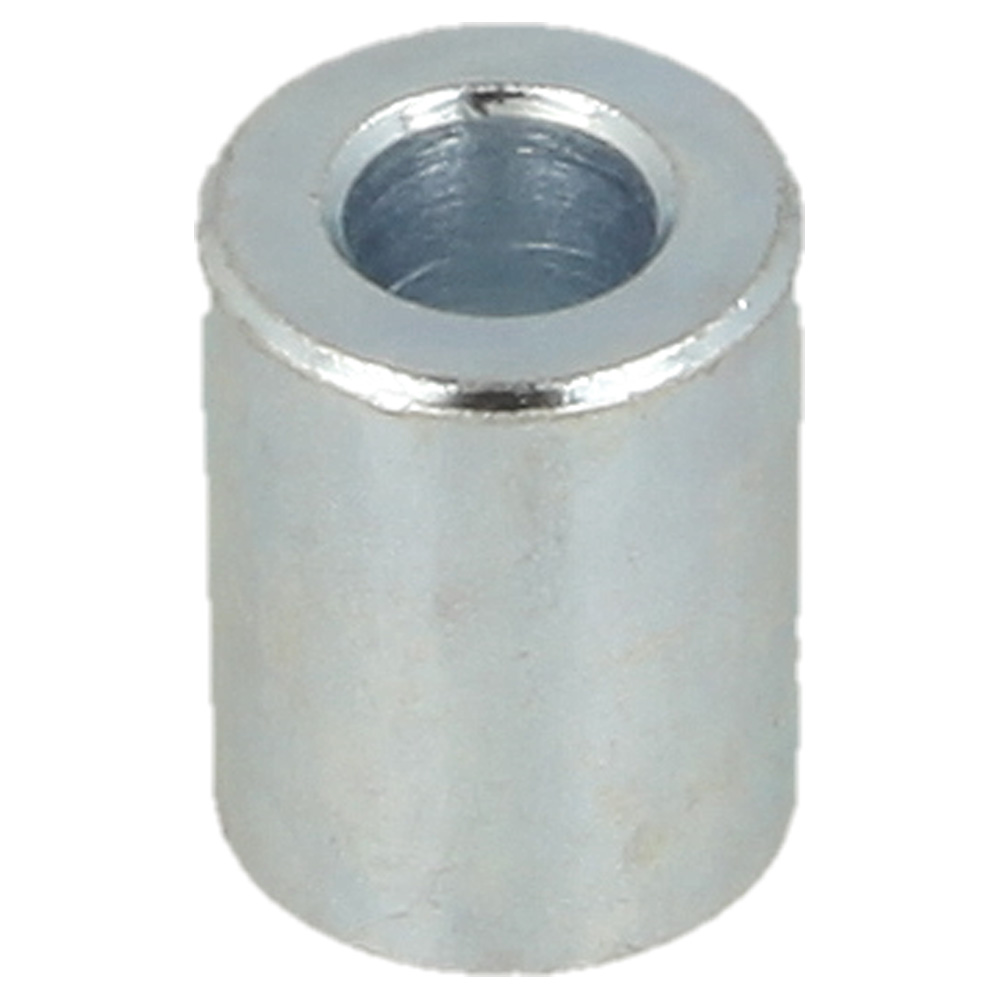

70	MO1134-4619-01 Available to backorder	Spacer	£9.16 £7.63
71	MO112156602/0 In stock	Nut	£1.40 £1.17
72	MO137038000/0 Available to backorder	Bush	£5.06 £4.22
73	MO337600007/1 Available to backorder	Belt Protection	£6.13 £5.11

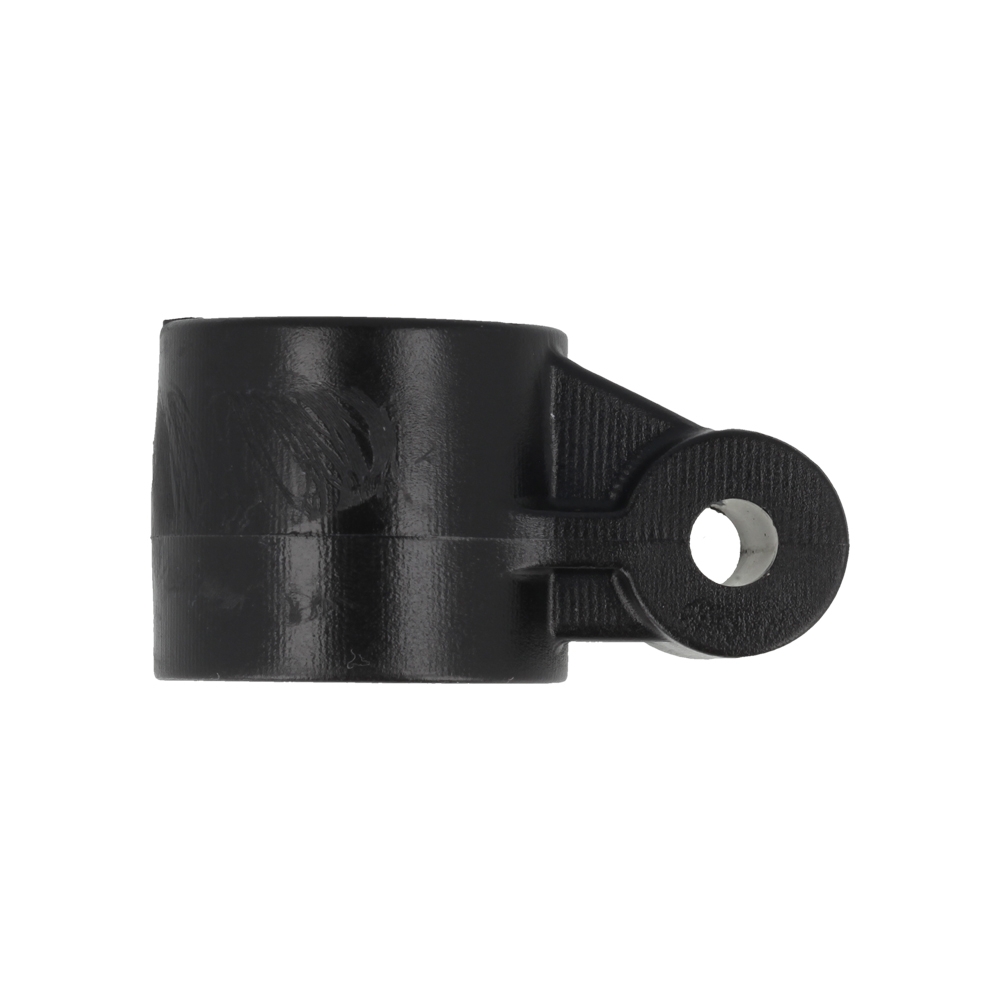

74	MO1134-6314-01 Available to backorder	Tension Arm Attachment	£8.34 £6.95
75	MO112689500/0 Available to backorder	Screw	£1.55 £1.29
76	MO112154510/0 In stock	Nut	£1.55 £1.29
78	MO112794987/0 Available to backorder	Screw	£1.97 £1.64
79	MO1134-5231-01 Available to backorder	Tension Arm	£23.36 £19.47
80	MO137160009/0 Available to backorder	Spacer	£10.84 £9.03

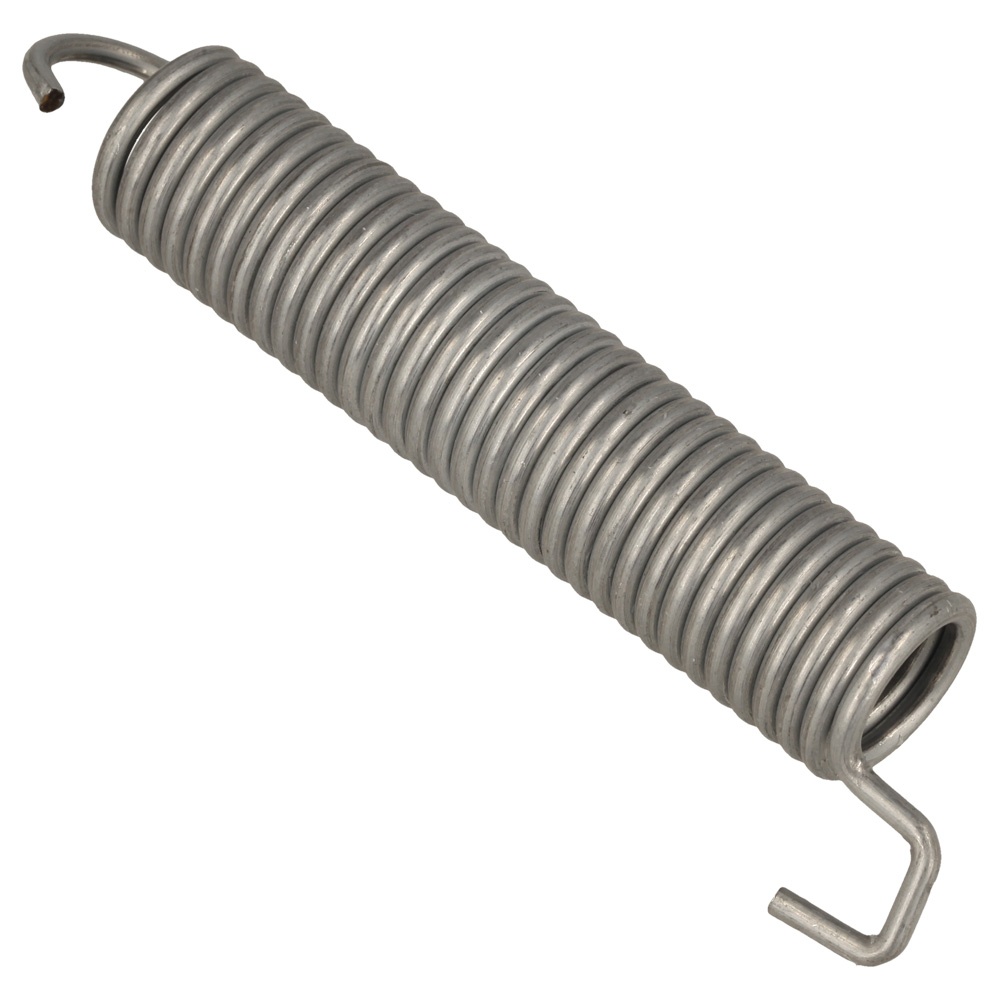

84	MO1131-1507-00 Available to backorder	Spring	£32.38 £26.98

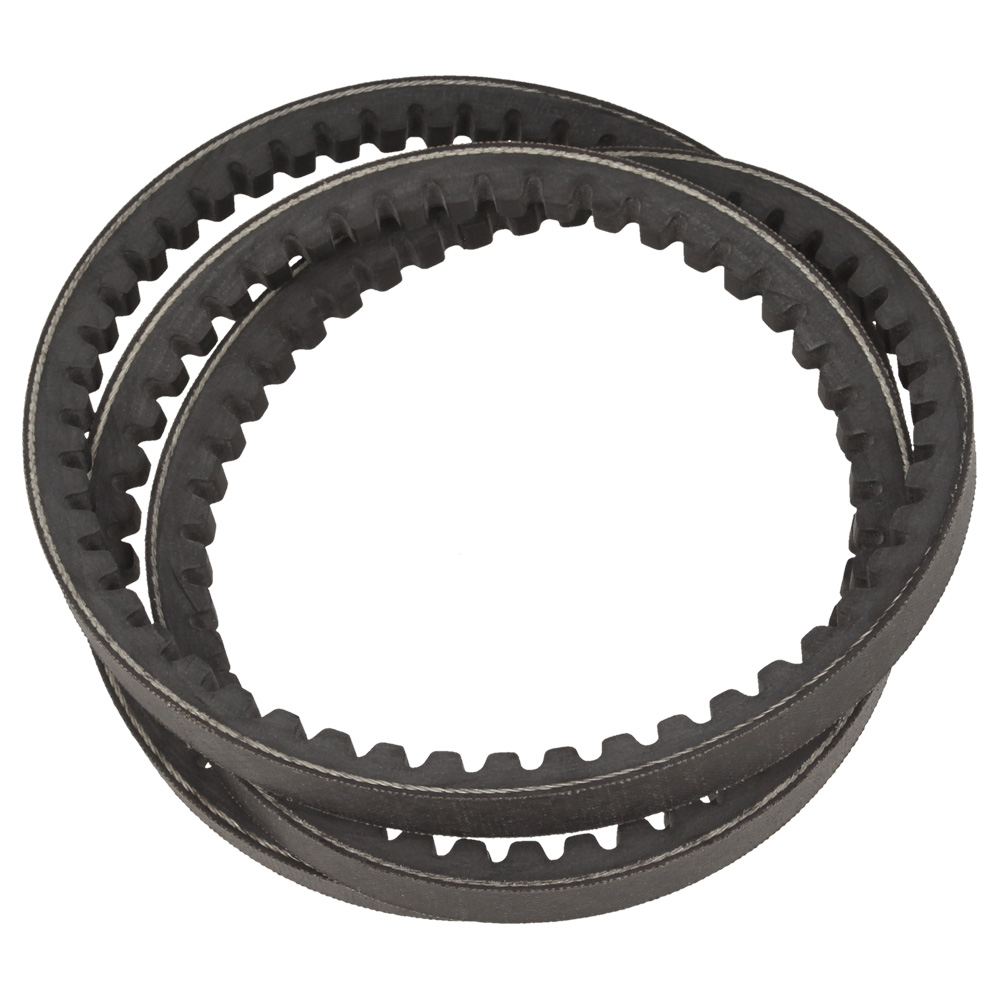

90	MO1134-9079-01 In stock	Drive Belt	£37.72 £31.43
