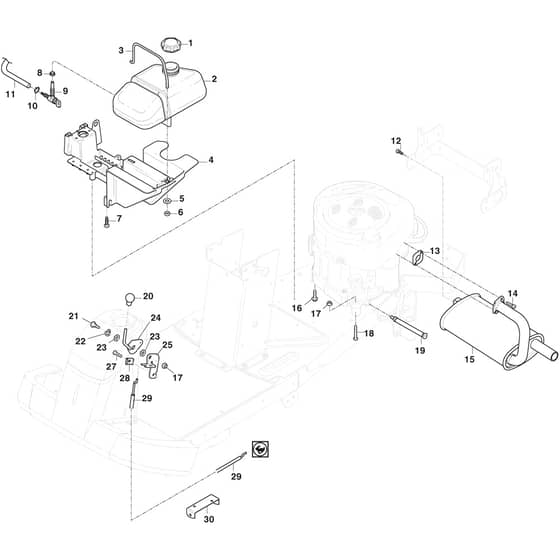

VILLA SPRING - 2021 - 2F2720421/S16 - Stiga Front Mower Engine Diagram

Description

Stiga VILLA SPRING Parts Diagram

Product Name - VILLA SPRING

Model Year - 2021

Model Type - V 301

Art.N - 2F2720421/S16

Engine Model - PowerBuilt 3130 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125795001/1 In stock	Cap	£7.96 £6.63
2	MO1134-6626-01 Available to backorder	Fuel Tank	£43.21 £36.01
3	MO1134-4808-01 Available to backorder	Tank Clamp	£13.93 £11.61
4	MO1134-4807-02 Available to backorder	Support	£90.10 £75.08
5	MO112523040/0 In stock	Washer	£1.49 £1.24
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO9838-8822-19 Available to backorder	Screw	£1.55 £1.29
8	MO337260156/0 In stock	Gasket	£8.66 £7.22
9	MO118563206/0 In stock	Fuel Shut-Off Valve	£23.65 £19.71
10	MO9578-0023-02 Available to backorder	Hose Clamp	£6.47 £5.39
11	MO1134-2975-15 Available to backorder	Fuel Tube	£16.09 £13.41
12	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
13	MO1134-0433-00 Available to backorder	Gasket	£5.48 £4.57
14	MO1134-4930-01 Available to backorder	Screw	£1.97 £1.64
15	MO387753300/0 Available to backorder	Muffler Assy	£246.35 £205.29
15	MO387753303/0 Available to backorder	Muffler	£253.40 £211.17
16	MO9955-3725-16 Available to backorder	Screw	£2.53 £2.11
17	MO112155000/0 In stock	Nut	£1.55 £1.29
18	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
19	MO1134-5827-05 Available to backorder	Oil Drain Assy	£35.05 £29.21
20	MO1134-4078-01 Available to backorder	Knob	£5.48 £4.57
21	MO1134-0240-00 In stock	Screw	£8.80 £7.33
22	MO9694-0001-00 Available to backorder	Washer	£1.55 £1.29
23	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
24	MO1134-5465-02 Available to backorder	Throttle Control Lever	£17.17 £14.31
25	MO1134-5464-01 Available to backorder	Bracket	£27.31 £22.76
27	MO9943-0516-16 In stock	Screw	£1.22 £1.02
28	MO9500-9991-00 Available to backorder	Wire Clamp	£7.03 £5.86
29	MO1134-4197-03 Available to backorder	Throttle Cable	£23.58 £19.65
30	MO1134-6370-01 Available to backorder	Wire Guide	£10.20 £8.50
