VILLA SILENT - 2016-2017 - 2F2720231/S16 - Stiga Front Mower Steering Diagram

Name: VILLA SILENT - 2016-2017 - 2F2720231/S16 - Stiga Front Mower Steering Diagram
SKU: villa_silent_2f2720231_s16_steering-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

VILLA SILENT - 2016-2017 - 2F2720231/S16 - Stiga Front Mower Steering Diagram

Description

Stiga VILLA SILENT Parts Diagram

Product Name - VILLA SILENT

Model Year - 2016-2017

Model Type - V 301

Art.N - 2F2720231/S16

Engine Model - Honda GXV390

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
4	MO9997-1040-16 Available to backorder	Screw L . 40 mm	£6.90 £5.75
5	MO9739-1031-22 In stock	Nut	£1.97 £1.64
6	MO1134-9154-01 In stock	Steering Cable	£50.68 £42.23
7	MO1134-1310-01 Available to backorder	Spring	£18.86 £15.72
8	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
9	MO112155000/0 In stock	Nut	£1.55 £1.29
12	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
13	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
15	MO387520125/0 Available to backorder	Steering Column.Lower	£38.02 £31.68
16	MO1134-1901-01 Available to backorder	Bearing	£11.96 £9.97
17	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
18	MO112523040/0 In stock	Washer	£1.49 £1.24
19	MO1134-5495-01 Available to backorder	Steering Rod	£86.57 £72.14
20	MO337601201/0 Available to backorder	Steering Pulley	£52.08 £43.40
21	MO9595-0262-00 Available to backorder	Locating Pin	£1.69 £1.41
22	MO387520115/0 Available to backorder	Steering Wheel	£35.20 £29.33
23	MO9595-0277-01 Available to backorder	Pin	£1.55 £1.29
24	MO1134-5494-01 Available to backorder	Steering Wheel	£63.35 £52.79
25	MO1134-3769-01 Available to backorder	Steering Wheel Button Kit	£43.64 £36.37
26	MO387520123/0 Available to backorder	Steering Tube-Inner Assy	£64.75 £53.96
27	MO1134-5177-01 Available to backorder	Slide	£13.16 £10.97
28	MO9710-0631-12 Available to backorder	Nut	£10.01 £8.34
29	MO337394201/0 Available to backorder	Wing Nut	£13.24 £11.03
33	MO112521390/0 Available to backorder	Washer	£1.82 £1.52
36	MO1134-3047-01 Available to backorder	Spacer	£7.74 £6.45
37	MO1134-0041-05 Available to backorder	Bushing	£11.06 £9.22
38	MO1134-0046-00 Available to backorder	Wire Clamp	£1.97 £1.64

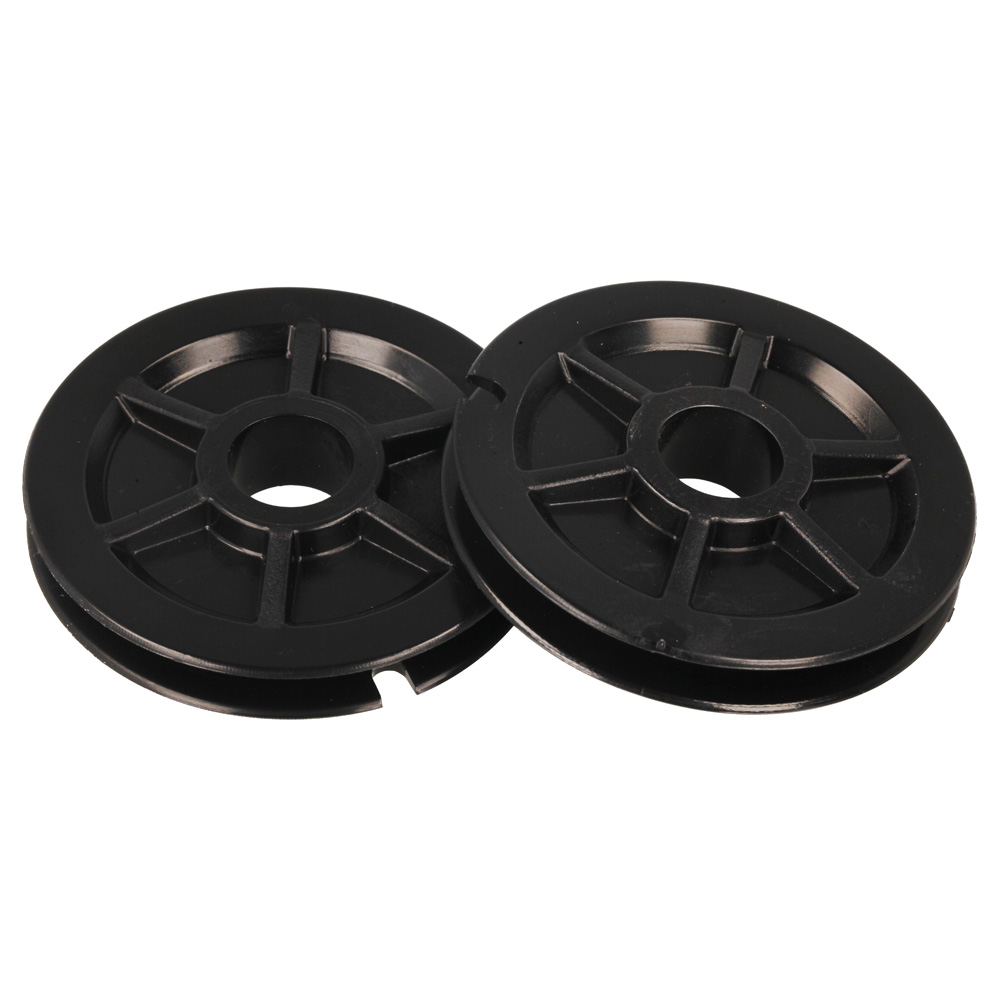

39	MO1134-9025-01 Available to backorder	Steering Pulley Sats 2 st.kit of 2	£20.69 £17.24
40	MO112692395/2 In stock	Screw M10 X 60 Use 112692395.2	£3.24 £2.70
