VILLA SILENT - 2016-2017 - 2F2720231/S16 - Stiga Front Mower Body Works 01 Diagram

Description

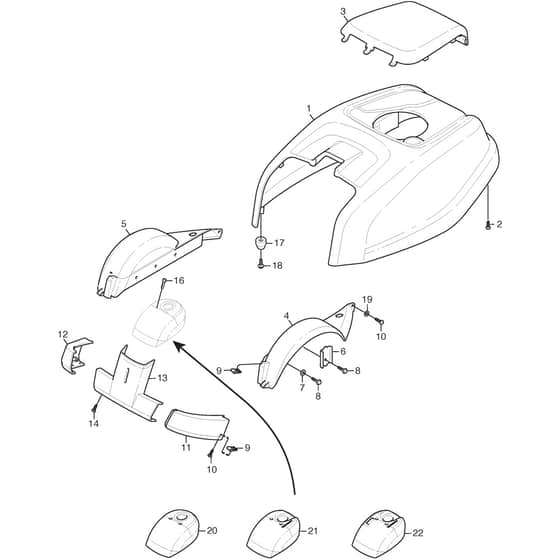

Stiga VILLA SILENT Parts Diagram

Product Name - VILLA SILENT

Model Year - 2016-2017

Model Type - V 301

Art.N - 2F2720231/S16

Engine Model - Honda GXV390

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-5283-02 Available to backorder	Engine Hood Yellow	£281.56 £234.63
3	MO337110333/0 Available to backorder	Engine Cover-Grey	£59.12 £49.27
4	MO337491253/0 Available to backorder	Mud Guard-Lh (Grey)	£108.40 £90.33
5	MO337491252/0 Available to backorder	Mud Guard-Rh (Grey)	£111.91 £93.26
6	MO1137-0088-01 Available to backorder	Support Plate	£2.26 £1.88
7	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
8	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
9	MO1134-4176-01 Available to backorder	Clips	£4.78 £3.98
11	MO337502509/0 Available to backorder	Bumper Front-Lh (Grey)	£52.08 £43.40
12	MO337502508/0 Available to backorder	Bumper Front-Rh (Grey)	£53.50 £44.58
13	MO1134-5305-01 Available to backorder	Lower Hood Yellow	£84.47 £70.39
14	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
16	MO9946-0525-16 Available to backorder	Screw	£2.12 £1.77
17	MO1134-4790-02 Available to backorder	Hood Guide (Black)	£3.08 £2.57
18	MO9838-9530-12 Available to backorder	Screw	£2.12 £1.77
19	MO112523040/0 In stock	Washer	£1.49 £1.24
22	MO337110358/0 Available to backorder	Front Upper Cover [Yellow]	£47.22 £39.35
