VILLA 95 COMBI EL - 2019-2020 - 2D2709521/S16 - Stiga Front Mower Transmission Diagram

Description

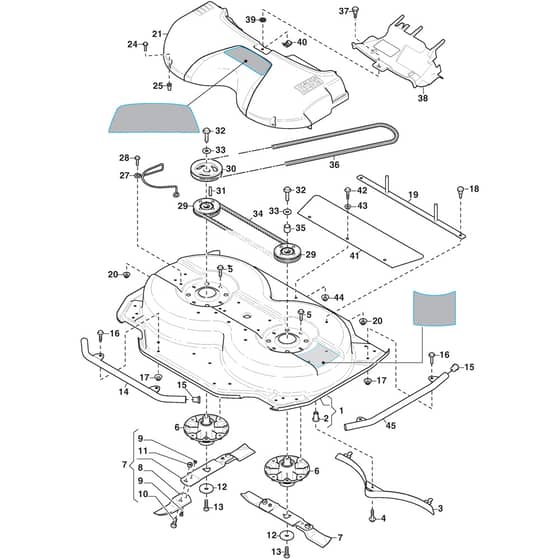

Stiga VILLA 95 COMBI EL Parts Diagram

Product Name - Cuttingdeck VILLA 95 COMBI EL

Model Year - 2019-2020

Model Type - 95CV E

Art.N - 2D2709521/S16

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387561531/1 Available to backorder	Casing-Yellow 95C	£499.58 £416.32
3	MO1134-6229-01 Available to backorder	Mulch Plug 95C	£39.42 £32.85
6	MO387203000/0 In stock	Shaft Flange Assy	£114.02 £95.02
7	MO1134-9117-01 Available to backorder	Blade Bar Assy (95C) Sats 2 st.kit of 2	£107.75 £89.79
8	MO1134-9119-01 Available to backorder	Blade Kit Assy 2 knivar.2 blade tips	£33.67 £28.06
9	MO1134-9054-01 Available to backorder	Shear Bolt Kit 6 bultar.6 bolts+nuts	£8.59 £7.16
10	MO1134-6311-01 Available to backorder	Bolt 7.16” UNF	£2.95 £2.46
11	MO1134-6312-01 Available to backorder	Nut 7.16” UNF	£2.53 £2.11
12	MO1134-6211-01 Available to backorder	Washer	£2.98 £2.48
14	MO387869259/0 Available to backorder	Front Guard Tube-Grey	£44.76 £37.30
15	MO9403-0025-80 Available to backorder	End Plug. Grey	£2.40 £2.00
18	MO1134-0240-01 Available to backorder	Shoulder Screw	£9.50 £7.92
19	MO387033103/0 Available to backorder	Bracket	£64.75 £53.96
21	MO337060031/0 Available to backorder	Belt Cover	£39.42 £32.85
24	MO9945-0825-16 In stock	Screw	£2.40 £2.00
25	MO1134-5595-01 Available to backorder	Nut	£7.96 £6.63
27	MO1134-6429-01 Available to backorder	Belt Guide	£15.20 £12.67
28	MO9959-0820-16 In stock	Screw	£1.55 £1.29
29	MO1134-9127-01 Available to backorder	Toothed Pulley Assy	£50.68 £42.23
30	MO1137-0011-01 Available to backorder	Pulley Ø . 161 mm	£41.95 £34.96
31	MO9600-0168-01 Available to backorder	Key	£4.22 £3.52
32	MO112692395/2 In stock	Screw	£3.24 £2.70
33	MO1134-5406-01 Available to backorder	Washer	£3.79 £3.16

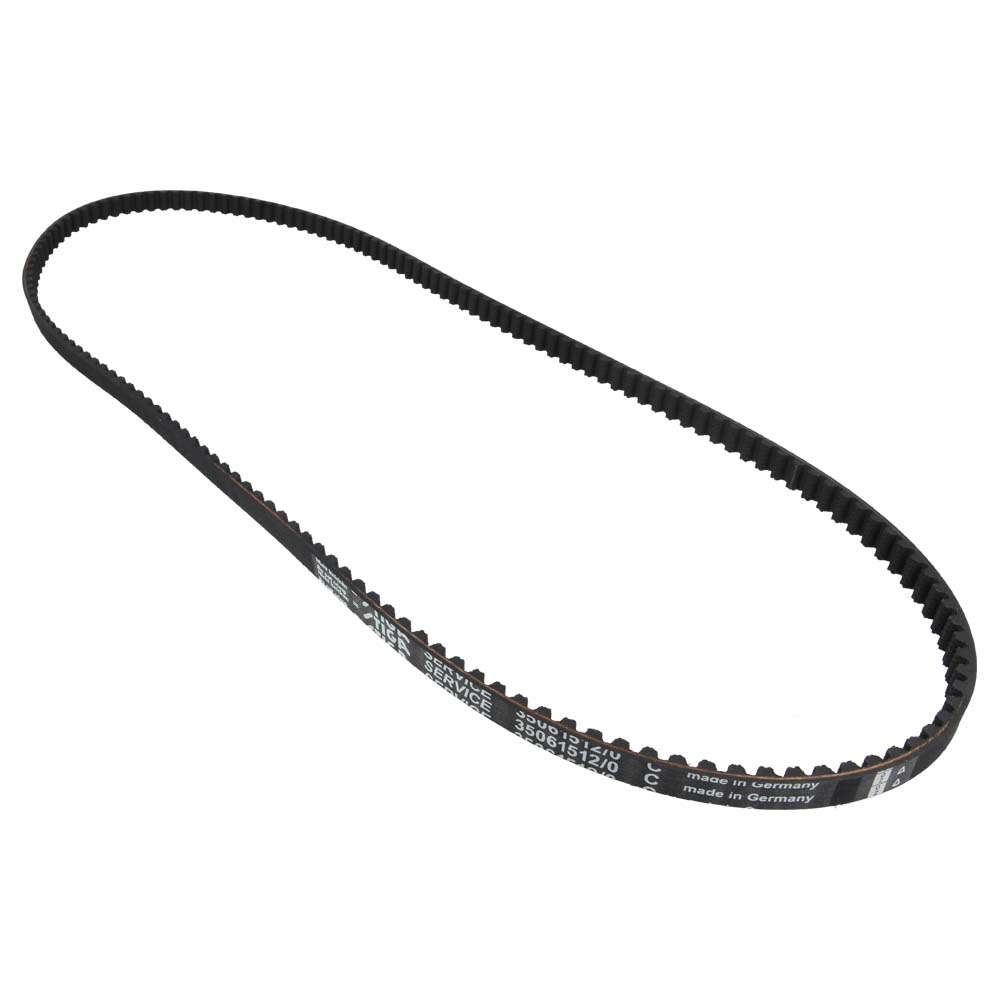

34	MO1134-9183-02 In stock	Reinforced - Toothed Belt Service code for Belt. 135061512.0	£61.96 £51.63
35	MO1134-5400-04 Available to backorder	Spacer	£4.93 £4.11
36	MO1134-9068-01 Available to backorder	Drive Belt Replaced by Service Code. 1134-9068-01	£30.97 £25.81
37	MO1134-0240-00 In stock	Screw	£8.80 £7.33
38	MO337600003/1 Available to backorder	Belt Cover	£26.33 £21.94
39	MO9675-0016-02 Available to backorder	Starlock	£1.40 £1.17
40	MO1134-4620-02 Available to backorder	Nut	£7.96 £6.63
41	MO1134-6281-02 Available to backorder	Rubber Guard	£19.14 £15.95
42	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
43	MO1134-4185-01 Available to backorder	Flange Washer	£6.47 £5.39
44	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
