VILLA 95 COMBI - 2016-2021 - 2D2709511/S16 - Stiga Front Mower Controls Diagram

Description

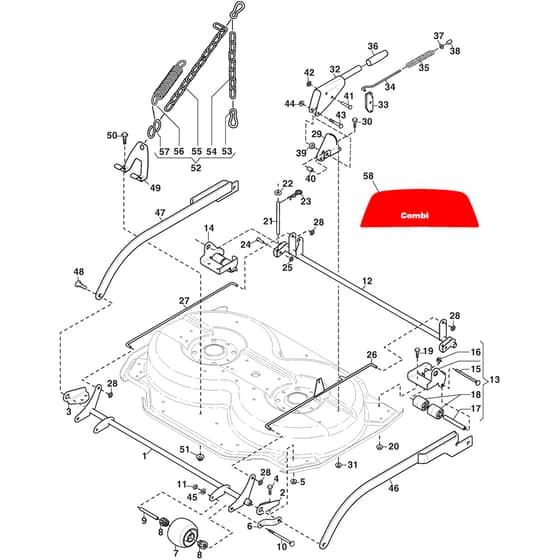

Stiga VILLA 95 COMBI Parts Diagram

Product Name - VILLA 95 COMBI

Model Year - 2016-2021

Model Type - 95CV

Art.N - 2D2709511/S16

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387000160/0 Available to backorder	Front Axle-Yellow	£98.54 £82.12
2	MO1134-6214-01 Available to backorder	Bracket Front-Lh (Yellow)	£12.95 £10.79
3	MO1134-6214-02 Available to backorder	Bracket Front-Rh (Yellow)	£12.95 £10.79
6	MO387318275/0 Available to backorder	Guide-Grey	£5.21 £4.34
7	MO1134-4284-01 In stock	Wheel	£30.77 £25.64
8	MO1134-4319-01 In stock	Bearing	£6.64 £5.53
12	MO387000161/0 Available to backorder	Rear Axle-Yellow	£82.36 £68.63
13	MO1134-6282-01 Available to backorder	Roller-Lh W.Bracket Inkl. pos 15 - 18	£56.32 £46.93
14	MO1134-6282-02 Available to backorder	Roller-Rh W.Bracket Inkl. pos 15 - 18	£56.32 £46.93
15	MO9897-0813-02 Available to backorder	Screw	£4.93 £4.11
17	MO1134-4318-01 In stock	Wheel Axle	£10.20 £8.50
18	MO1134-9126-01 Available to backorder	Support Rollers Sats 2 st.kit of 2	£52.08 £43.40
21	MO1134-6198-01 Available to backorder	Stud	£19.42 £16.18
22	MO112521390/0 Available to backorder	Washer	£1.82 £1.52
23	MO9598-2001-02 Available to backorder	Spring Pin	£4.78 £3.98
24	MO9646-0098-22 Available to backorder	Rivet	£2.40 £2.00
25	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
26	MO1134-6249-02 Available to backorder	Push Rod. Left	£42.23 £35.19
27	MO1134-6246-02 Available to backorder	Push Rod. Right	£14.89 £12.41
28	MO112604903/0 In stock	Washer	£1.55 £1.29
29	MO1137-0259-01 Available to backorder	Height Adjust Quadrant	£22.25 £18.54
32	MO387318273/0 Available to backorder	Height Adjust Lever-Grey	£47.87 £39.89
33	MO1134-6254-01 Available to backorder	Catch Assy	£10.98 £9.15
34	MO1134-5444-01 Available to backorder	Push Rod	£14.00 £11.67
35	MO1134-5445-01 Available to backorder	Spring	£16.82 £14.02
36	MO1134-5503-01 Available to backorder	Handle	£26.54 £22.12
37	MO9699-0087-02 In stock	Washer	£2.12 £1.77
38	MO1134-3051-01 Available to backorder	Locking Knob	£9.16 £7.63
39	MO1134-6286-03 Available to backorder	Spacer	£1.82 £1.52
40	MO1134-1565-16 Available to backorder	Spacer	£7.03 £5.86
41	MO9646-0105-22 Available to backorder	Rivet	£2.95 £2.46
42	MO9672-0006-02 Available to backorder	Lock Washer	£1.97 £1.64
43	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
44	MO112155000/0 In stock	Nut	£1.55 £1.29
45	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
46	MO387106273/0 Available to backorder	Cutting Deck Arm Assy Lh	£122.46 £102.05
47	MO387106271/0 Available to backorder	Cutting Deck Arm Assy Rh	£115.43 £96.19
48	MO1134-6279-01 Available to backorder	Shoulder Bolt	£2.26 £1.88
49	MO387773535/1 Available to backorder	Lift Bracket-Grey	£21.12 £17.60
50	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
51	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
52	MO1134-6363-01 Available to backorder	Lift Spring Assy Inkl. pos 31 - 35	£46.46 £38.72
53	MO1134-5528-01 Available to backorder	Snap Hook	£4.22 £3.52
54	MO1134-6368-02 Available to backorder	Chain 7 links	£22.56 £18.80
55	MO1134-6368-03 Available to backorder	Chain 12 links	£20.62 £17.18
56	MO1134-5625-01 Available to backorder	Spring	£36.59 £30.49
57	MO1134-4623-01 Available to backorder	S-Hook	£4.37 £3.64
58	MO114368549/1 Available to backorder	Label Combi 95	£11.27 £9.39
