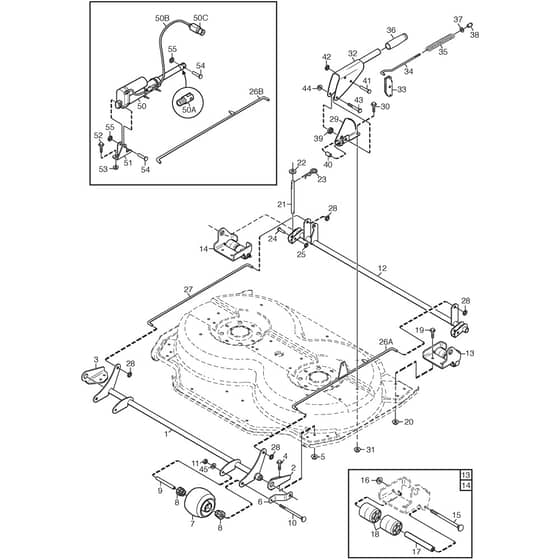

VILLA 95 COMBI - 2010-2012 - 13-2963-14 - Stiga Front Mower Controls Diagram

Name: VILLA 95 COMBI - 2010-2012 - 13-2963-14 - Stiga Front Mower Controls Diagram
SKU: villa_95_combi_13_2963_14_controls-group
Price: 0.95 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

VILLA 95 COMBI - 2010-2012 - 13-2963-14 - Stiga Front Mower Controls Diagram

Description

Stiga VILLA 95 COMBI Parts Diagram

Product Name - DECK VILLA 95 COMBI

Model Year - 2010-2012

Model Type -

Art.N - 13-2963-14

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387000160/0 Available to backorder	Front Axle-Yellow	£98.54 £82.12
2	MO1134-6214-01 Available to backorder	Bracket Front-Lh (Yellow)	£12.95 £10.79
3	MO1134-6214-02 Available to backorder	Bracket Front-Rh (Yellow)	£12.95 £10.79
6	MO387318275/0 Available to backorder	Guide-Grey	£5.21 £4.34
7	MO1134-4284-01 In stock	Wheel	£30.77 £25.64
8	MO1134-4319-01 In stock	Bearing	£6.64 £5.53
11	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
12	MO387000161/0 Available to backorder	Rear Axle-Yellow	£82.36 £68.63
13	MO1134-6282-01 Available to backorder	Roller-Lh W.Bracket Inkl. pos 15 - 18	£56.32 £46.93
14	MO1134-6282-02 Available to backorder	Roller-Rh W.Bracket Inkl. pos 15 - 18	£56.32 £46.93
15	MO9897-0813-02 Available to backorder	Screw	£4.93 £4.11
17	MO1134-4318-01 In stock	Wheel Axle	£10.20 £8.50
18	MO1134-9126-01 Available to backorder	Support Rollers Sats 2 st.kit of 2	£52.08 £43.40
21	MO1134-6198-01 Available to backorder	Stud	£19.42 £16.18
22	MO112521390/0 Available to backorder	Washer	£1.82 £1.52
23	MO9598-2001-02 Available to backorder	Spring Pin	£4.78 £3.98
25	MO112604899/0 In stock	Locking Washer	£1.55 £1.29
26	MO1134-6249-02 Available to backorder	Push Rod. Left (26A)	£42.23 £35.19
27	MO1134-6246-02 Available to backorder	Push Rod. Right	£14.89 £12.41
28	MOMX585 Available to backorder	Starlock	£1.14 £0.95
29	MO1137-0259-01 Available to backorder	Height Adjust Quadrant	£22.25 £18.54
30	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
32	MO387318273/0 Available to backorder	Height Adjust Lever-Grey	£47.87 £39.89
33	MO1134-6254-01 Available to backorder	Catch Assy	£10.98 £9.15
34	MO1134-5444-01 Available to backorder	Push Rod	£14.00 £11.67
35	MO1134-5445-01 Available to backorder	Spring	£16.82 £14.02
36	MO1134-5503-01 Available to backorder	Handle	£26.54 £22.12
37	MO9699-0087-02 In stock	Washer	£2.12 £1.77
38	MO1134-3051-01 Available to backorder	Locking Knob	£9.16 £7.63
39	MO1134-6286-03 Available to backorder	Spacer	£1.82 £1.52
40	MO1134-1565-16 Available to backorder	Spacer	£7.03 £5.86
41	MO9646-0105-22 Available to backorder	Rivet	£2.95 £2.46
42	MO9672-0006-02 Available to backorder	Lock Washer	£1.97 £1.64
43	MO9997-0850-16 Available to backorder	Screw	£4.08 £3.40
44	MO112293201/0 In stock	Nut	£1.69 £1.41
45	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
51	MO1134-6192-01 Available to backorder	Bracket	£10.63 £8.86
54	MO9646-0098-22 Available to backorder	Rivet	£2.40 £2.00
