VILLA 16 HST - 2017-2020 - 2F2720511/S17 - Stiga Front Mower Power take-off Diagram

Description

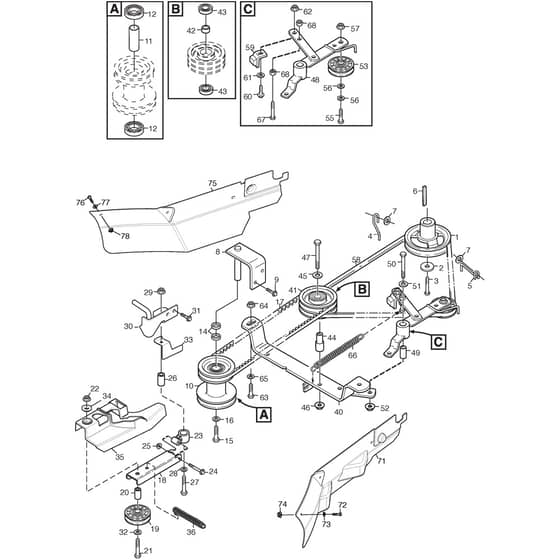

Stiga VILLA 16 HST Parts Diagram

Product Name - VILLA 16 HST

Model Year - 2017-2020

Model Type - V 301

Art.N - 2F2720511/S17

Engine Model - B&S Intek, Ser. 4155 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1137-0081-01 Available to backorder	Engine Pulley	£30.97 £25.81
2	MO1134-5017-01 Available to backorder	Washer	£3.79 £3.16
3	MO9987-5332-16 Available to backorder	Screw	£2.12 £1.77
4	MO1134-5058-01 Available to backorder	Belt Guide	£19.01 £15.84
5	MO1134-5057-01 Available to backorder	Belt Guide	£18.43 £15.36
6	MO9600-0251-01 Available to backorder	Key L . 2 1.2"	£6.47 £5.39
8	MO1134-4650-01 Available to backorder	Pulley Bracket	£57.13 £47.61
10	MO387605015/0 Available to backorder	Intermediate Belt Pulley Inkl. pos 11-12	£90.10 £75.08
11	MO1134-0051-12 Available to backorder	Spacer	£15.34 £12.78
14	MO1134-0052-00 Available to backorder	Spacer	£8.52 £7.10
15	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
17	MO1134-9079-01 In stock	Drive Belt Replaced by Service Code. 1134-9079-01	£37.72 £31.43
18	MO1134-5231-01 Available to backorder	Tension Arm	£23.36 £19.47
23	MO1134-6314-01 Available to backorder	Tension Arm Attachment	£8.34 £6.95
24	MO112689500/0 Available to backorder	Screw	£1.55 £1.29
25	MO112154510/0 In stock	Nut	£1.55 £1.29
26	MO1134-4619-01 Available to backorder	Spacer	£9.16 £7.63
27	MO9930-1050-12 Available to backorder	Screw	£2.54 £2.12
29	MO112156602/0 In stock	Lock Nut	£1.40 £1.17
30	MO387773553/0 Available to backorder	Bracket	£59.12 £49.27
31	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
34	MO137038000/0 Available to backorder	Bush	£5.06 £4.22
35	MO337600007/1 Available to backorder	Belt Protection	£6.13 £5.11
36	MO1131-1507-00 Available to backorder	Spring	£32.38 £26.98
40	MO1134-5037-01 Available to backorder	Mounting Bracket (Black)	£60.54 £50.45
41	MO387605002/0 Available to backorder	Centre Belt Pulley Inkl. pos 42-43	£83.06 £69.22
42	MO1134-0051-09 Available to backorder	Spacer	£13.66 £11.38
43	MO119216056/0 In stock	Ball Bearing	£22.25 £18.54
44	MO1134-1839-02 Available to backorder	Shaft	£18.10 £15.08
47	MO9997-1070-12 In stock	Screw	£3.52 £2.93
48	MO1137-0144-01 Available to backorder	Tension Arm Assy	£40.82 £34.02
49	MO1134-1565-10 Available to backorder	Spacer	£8.23 £6.86
53	MO387605008/0 In stock	Tension Roller (Grey) Sats 1 st.kit of 1	£35.20 £29.33
55	MO112794400/0 Available to backorder	Screw	£1.91 £1.59
56	MO112521360/0 In stock	Washer	£1.55 £1.29
57	MO9739-1031-22 In stock	Nut	£1.97 £1.64
58	MO1134-9146-01 Available to backorder	V-Belt Replaced by Service Code. 1134-9146-01	£33.67 £28.06
59	MO1134-4164-03 Available to backorder	Brake Pad	£30.97 £25.81
61	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
62	MO112155000/0 In stock	Nut	£1.55 £1.29
63	MO9959-0820-16 In stock	Screw	£1.55 £1.29
65	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
66	MO1134-3974-01 Available to backorder	Spring	£12.10 £10.08
67	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
68	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
71	MO337600009/1 Available to backorder	Side Protection - Lh	£19.42 £16.18
75	MO337600008/1 Available to backorder	Side Protection - Rh	£18.59 £15.49
76	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
77	MO112523040/0 In stock	Washer	£1.49 £1.24
78	MO112292102/0 In stock	Use 112292102.0	£1.69 £1.41
