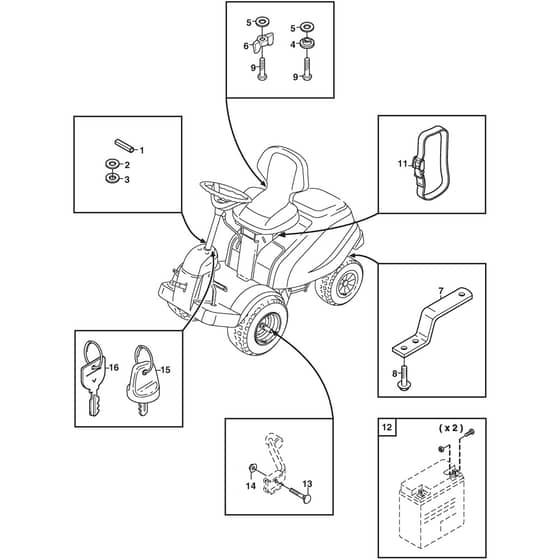

VILLA 16 HST - 2017-2020 - 2F2720511/S17 - Stiga Front Mower Assembly Parts Diagram

Name: VILLA 16 HST - 2017-2020 - 2F2720511/S17 - Stiga Front Mower Assembly Parts Diagram
SKU: villa_16_hst_2f2720511_s17_assembly_parts-group
Price: 1.29 GBP
Availability: InStock

Part No. villa_16_hst_2f2720511_s17_assembly_parts-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

VILLA 16 HST - 2017-2020 - 2F2720511/S17 - Stiga Front Mower Assembly Parts Diagram

Description

Stiga VILLA 16 HST Parts Diagram

Product Name - VILLA 16 HST

Model Year - 2017-2020

Model Type - V 301

Art.N - 2F2720511/S17

Engine Model - B&S Intek, Ser. 4155 AVS

	Part No.	Details
1	MO9595-0262-00 In stock	Locating Pin	£1.79 £1.49
2	MO9699-0103-02 Available to backorder	Washer 0.5 mm	£2.12 £1.77
3	MO9699-0114-02 Available to backorder	Washer 1.0 mm	£1.97 £1.64
4	MO1134-4185-01 Available to backorder	Flange Washer	£6.46 £5.38
5	MO112523060/0 In stock	Washer	£1.55 £1.29
6	MO1134-4481-01 Available to backorder	Wing Nut	£1.63 £1.36
7	MO1134-4627-01 Available to backorder	Tow Bar	£17.10 £14.25
8	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
9	MO112793102/0 In stock	Screw	£1.55 £1.29
11	MO1134-5245-01 Available to backorder	Battery Strap	£22.45 £18.71
12	MO1134-6113-01 Available to backorder	Screw	£12.80 £10.67
13	MO9898-1035-16 Available to backorder	Screw	£2.82 £2.35
14	MO9739-1031-22 In stock	Nut	£1.97 £1.64
16	MO1134-4734-01 In stock	Ignition Key	£17.33 £14.44
