VILLA 15 HST - 2021 - 2F2720541/ST1 - Stiga Front Mower Electric Parts Diagram

Name: VILLA 15 HST - 2021 - 2F2720541/ST1 - Stiga Front Mower Electric Parts Diagram
SKU: villa_15_hst_2f2720541_st1_electric_parts-group
Price: 1.05 GBP
Availability: InStock

Part No. villa_15_hst_2f2720541_st1_electric_parts-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

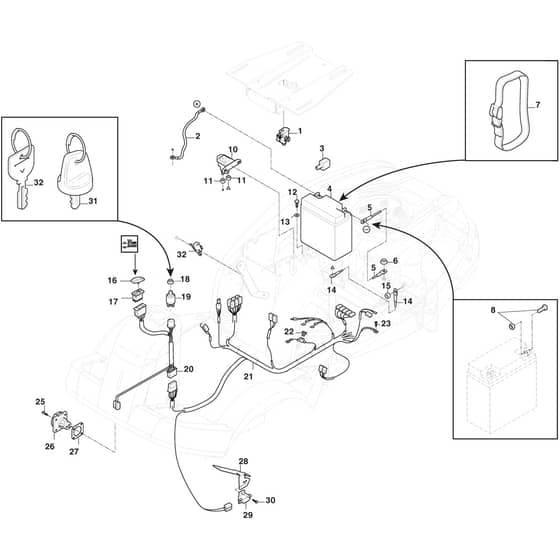

VILLA 15 HST - 2021 - 2F2720541/ST1 - Stiga Front Mower Electric Parts Diagram

Description

Stiga VILLA 15 HST Parts Diagram

Product Name - VILLA 15 HST

Model Year - 2021

Model Type - V 301

Art.N - 2F2720541/ST1

Engine Model - ST 450 Powered by STIGA

	Part No.	Details
1	MO1134-3156-02 Available to backorder	Switch	£46.48 £38.73
2	MO1134-0234-02 Available to backorder	Battery Cable (+)	£24.42 £20.35
3	MO1134-2310-01 Available to backorder	Guard Cap (+)	£8.86 £7.38
4	MO118120068/0 In stock	Battery 12V 18Ah	£113.47 £94.56
5	MO1134-2042-02 Available to backorder	Battery Cable	£25.84 £21.53
6	MO112155000/0 In stock	Nut	£1.55 £1.29
7	MO1134-5245-01 Available to backorder	Battery Strap	£22.45 £18.71
8	MO1134-6113-01 Available to backorder	Screw	£12.80 £10.67
10	MO118736112/0 In stock	Solenoid	£38.00 £31.67
11	MO9743-5121-32 Available to backorder	Nut	£1.46 £1.22
12	MO112728697/0 In stock	Screw	£1.55 £1.29
13	MO112523040/0 In stock	Washer	£1.55 £1.29
14	MO1134-4702-02 Available to backorder	Cable	£23.12 £19.27
15	MO112361005/0 Available to backorder	Nut	£4.24 £3.53
16	MO9400-0280-03 In stock	Switch Cover-Height Adjust	£17.87 £14.89
17	MO9400-0282-01 In stock	Switch	£75.31 £62.76
18	MO1134-4749-01 Available to backorder	Nut	£5.65 £4.71
19	MO1134-4093-01 In stock	Ignition Switch	£64.75 £53.96
20	MO1134-6442-01 Available to backorder	Wiring Harness	£158.90 £132.42
20	MO1134-6348-01 Available to backorder	Cable Harness	£30.53 £25.44
21	MO187040304/0 Available to backorder	Cable Harness	£133.90 £111.58
22	MO1134-3496-06 Available to backorder	Fuse (20A) Yellow	£1.39 £1.16
23	MO9943-0516-16 In stock	Screw	£1.26 £1.05
25	MO9840-7716-16 Available to backorder	Screw	£1.97 £1.64
26	MO387149302/0 In stock	Female Connector	£10.14 £8.45
27	MO1134-4052-01 Available to backorder	Washer	£8.86 £7.38
28	MO1134-4610-01 Available to backorder	Switch Bracket	£23.65 £19.71
29	MO1134-3399-02 Available to backorder	Switch	£43.63 £36.36
30	MO9852-8013-16 Available to backorder	Screw	£2.11 £1.76
32	MO1134-4734-01 In stock	Ignition Key	£17.33 £14.44
32	MO9400-0360-01 Available to backorder	Micro Switch	£8.18 £6.82
