VILLA 14 HST - 2016-2020 - 2F2720421/S16 - Stiga Front Mower Transmission Diagram

Name: VILLA 14 HST - 2016-2020 - 2F2720421/S16 - Stiga Front Mower Transmission Diagram
SKU: villa_14_hst_2f2720421_s16_transmission-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

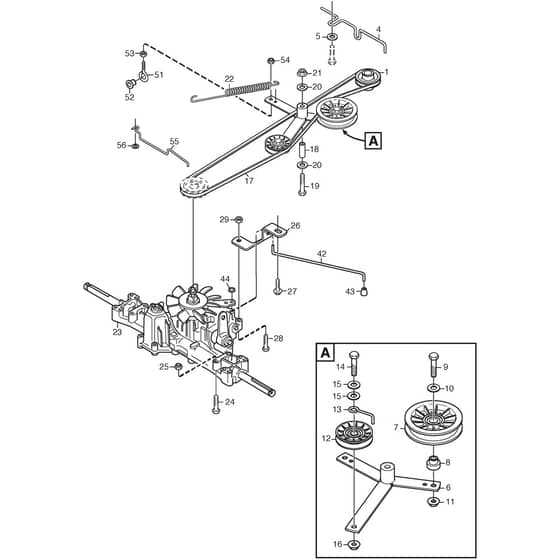

VILLA 14 HST - 2016-2020 - 2F2720421/S16 - Stiga Front Mower Transmission Diagram

Description

Stiga VILLA 14 HST Parts Diagram

Product Name - VILLA 14 HST

Model Year - 2016-2020

Model Type - V 301

Art.N - 2F2720421/S16

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1137-0205-01 Available to backorder	Engine Belt Pulley	£30.97 £25.81
4	MO1134-6637-01 Available to backorder	Belt Guide	£13.09 £10.91
6	MO1134-4519-01 Available to backorder	Tension Arm	£43.64 £36.37
7	MO387605016/0 Available to backorder	Tension Roller	£45.04 £37.53
8	MO1134-4614-01 Available to backorder	Spacer	£10.42 £8.68
12	MO387605008/0 In stock	Tension Roller (Grey) Sats 1 st.kit of 1	£35.20 £29.33
13	MO1134-1795-01 Available to backorder	Belt Stirrup	£11.47 £9.56
14	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
15	MO112521360/0 In stock	Washer	£1.55 £1.29
16	MO9739-1031-22 In stock	Nut	£1.97 £1.64
17	MO1134-9165-01 Available to backorder	V-Belt 9485	£36.36 £30.30
18	MO1134-1565-08 Available to backorder	Spacer	£8.65 £7.21
19	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
20	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
21	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
22	MO1134-5214-01 Available to backorder	Spring	£13.09 £10.91
23	MO1134-7766-01 Available to backorder	Transaxle K46Cj Kanzaki K46CJ	£1,529.28 £1,274.40
24	MO9960-0860-12 Available to backorder	Screw	£1.97 £1.64
