VILLA 14 HST - 2015 - 13-2718-35 - Stiga Front Mower Pedal Lift Diagram

Description

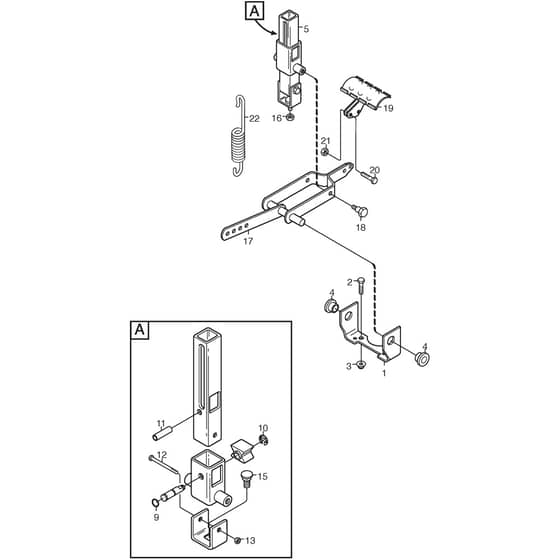

Stiga VILLA 14 HST Parts Diagram

Product Name - VILLA 14 HST

Model Year - 2015

Model Type - V 301

Art.N - 13-2718-35

Engine Model - B&S Power Built, Ser. 3130 AVS

	Part No.	Details
1	MO1134-4117-01 Available to backorder	Bracket	£30.98 £25.82
2	MO9959-1025-16 Available to backorder	Screw	£2.69 £2.24
3	MO9739-1031-22 In stock	Nut	£1.97 £1.64
4	MO1134-2684-01 Available to backorder	Bearing	£6.77 £5.64
5	MO1134-4945-01 Available to backorder	Lift Catch Assy	£118.96 £99.13
10	MO9650-0039-04 Available to backorder	Lock Ring	£2.11 £1.76
11	MO9595-0276-01 Available to backorder	Locating Pin	£3.10 £2.58
12	MO112689500/0 Available to backorder	Screw	£1.63 £1.36
13	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
16	MO112155000/0 In stock	Nut	£1.55 £1.29
18	MO1134-0240-00 In stock	Screw	£8.80 £7.33
19	MO1134-4938-01 Available to backorder	Lift Pedal	£24.02 £20.02
20	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
21	MO112292102/0 In stock	Nut	£1.70 £1.42
22	MO4231-0013-00 In stock	Spring	£8.53 £7.11
