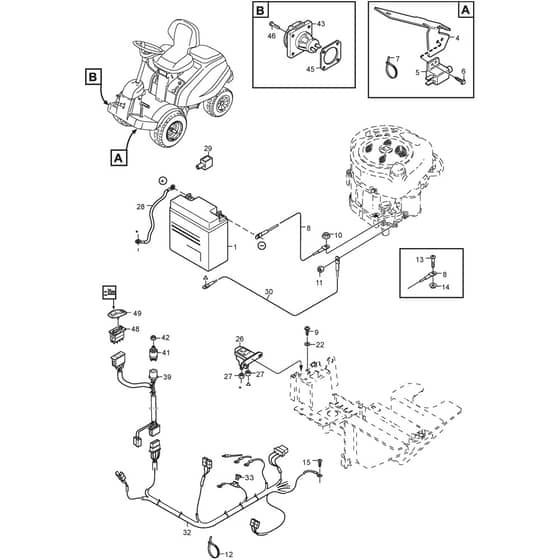

Stiga VILLA 14 HST Parts Diagram

Product Name - VILLA 14 HST

Model Year - 2015

Model Type - V 301

Art.N - 13-2718-35

Engine Model - B&S Power Built, Ser. 3130 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118120068/0 In stock	Battery	£113.48 £94.57
4	MO1134-4610-01 Available to backorder	Switch Bracket	£23.65 £19.71
5	MO1134-3399-02 Available to backorder	Switch	£43.64 £36.37
6	MO9852-8013-16 Available to backorder	Screw	£2.12 £1.77
8	MO1134-2042-02 Available to backorder	Battery Cable L . 350 mm	£25.84 £21.53
9	MO112728697/0 In stock	Screw	£1.55 £1.29
10	MO112155000/0 In stock	Nut	£1.55 £1.29
11	MO112361005/0 Available to backorder	Nut 1.4 UNC	£4.22 £3.52
12	MO133320027/0 Available to backorder	Cable	£1.55 £1.29
15	MO9943-0516-16 Available to backorder	Screw	£1.22 £1.02
22	MO112523040/0 In stock	Washer	£1.49 £1.24
26	MO118736112/0 In stock	Solenoid	£38.00 £31.67
27	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
28	MO1134-0234-02 Available to backorder	Battery Cable (+) L . 395 mm	£24.42 £20.35
29	MO1134-2310-01 Available to backorder	Guard Cap (+)	£8.87 £7.39
30	MO1134-4702-02 Available to backorder	Cable L . 480 mm	£22.69 £18.91
32	MO187040304/0 Available to backorder	Cable Harness incl. 33	£126.97 £105.81
32	MO187040315/0 Available to backorder	Cable Harness incl. 33	£144.96 £120.80
33	MO1134-3496-06 Available to backorder	Fuse (20A) Yellow 20A	£1.40 £1.17
39	MO1134-6442-01 Available to backorder	Wiring Harness	£158.90 £132.42
45	MO1134-4052-01 Available to backorder	Washer	£8.87 £7.39
46	MO9840-7716-16 Available to backorder	Screw	£1.97 £1.64
48	MO9400-0282-01 In stock	Switch C.W Diode	£75.31 £62.76
