VILLA 13 HST - 2017-2019 - 2F2720321/S17 - Stiga Front Mower Steering Diagram

Name: VILLA 13 HST - 2017-2019 - 2F2720321/S17 - Stiga Front Mower Steering Diagram
SKU: villa_13_hst_2f2720321_s17_steering-group
Price: 1.29 GBP
Availability: InStock

Part No. villa_13_hst_2f2720321_s17_steering-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

VILLA 13 HST - 2017-2019 - 2F2720321/S17 - Stiga Front Mower Steering Diagram

Description

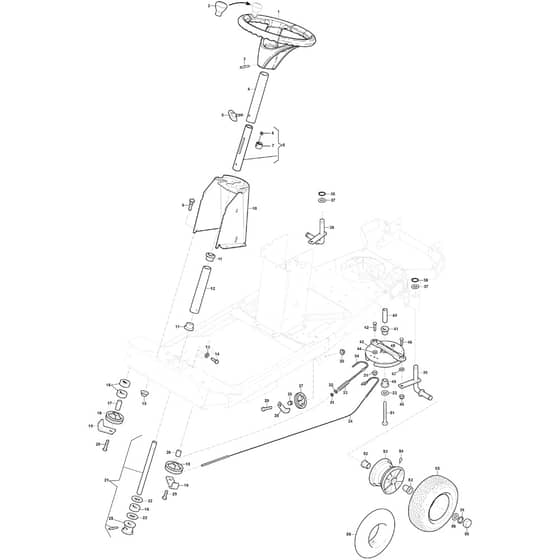

Stiga VILLA 13 HST Parts Diagram

Product Name - VILLA 13 HST

Model Year - 2017-2019

Model Type - V 301

Art.N - 2F2720321/S17

Engine Model -

	Part No.	Details
1	MO1134-5494-01 Available to backorder	Steering Wheel	£63.34 £52.78
2	MO1134-3769-01 Available to backorder	Steering Wheel Button Kit	£43.63 £36.36
3	MO9595-0277-01 Available to backorder	Pin	£1.55 £1.29
4	MO387520115/0 Available to backorder	Steering Wheel	£35.20 £29.33
5	MO337394201/0 Available to backorder	Wing Nut	£13.25 £11.04
6	MO9710-0631-12 Available to backorder	Nut	£10.02 £8.35
7	MO1134-5177-01 Available to backorder	Slide	£13.15 £10.96
8	MO387520123/0 Available to backorder	Steering Tube-Inner Assy	£64.75 £53.96
9	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
11	MO1134-1901-01 Available to backorder	Bearing	£11.95 £9.96
12	MO387520125/0 Available to backorder	Steering Column.Lower	£38.00 £31.67
13	MO112523040/0 In stock	Washer	£1.55 £1.29
14	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
15	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
16	MO1134-3047-01 Available to backorder	Spacer	£7.74 £6.45
17	MO1134-0041-05 Available to backorder	Bushing	£11.06 £9.22
18	MO1134-9025-01 Available to backorder	Steering Pulley Sats 2 st.kit of 2	£20.69 £17.24
19	MO1134-0046-00 Available to backorder	Wire Clamp	£1.97 £1.64
20	MO112692395/2 In stock	Screw L . 60 mm	£3.25 £2.71
22	MO112521390/0 Available to backorder	Washer	£1.84 £1.53
25	MO337601201/0 Available to backorder	Steering Pulley	£52.08 £43.40
26	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
29	MO9997-1040-16 Available to backorder	Screw L . 40 mm	£6.90 £5.75
30	MO9739-1031-22 In stock	Nut	£1.97 £1.64
31	MO112155000/0 In stock	Nut	£1.55 £1.29
32	MO112523060/0 In stock	Washer	£1.55 £1.29
33	MO1134-1310-01 Available to backorder	Spring	£18.88 £15.73
34	MO187000209/0 Available to backorder	Steering Cable	£46.48 £38.73
36	MO112609260/0 In stock	Seeger	£1.84 £1.53
37	MO9699-0088-02 Available to backorder	Washer	£2.22 £1.85
38	MO1134-5009-01 Available to backorder	Right Stub Axle	£61.94 £51.62
39	MO1134-5009-02 Available to backorder	Stub Axle	£61.94 £51.62
40	MO1134-5575-01 Available to backorder	Spacer	£7.62 £6.35
41	MO1134-9024-01 Available to backorder	Bearing Sats 4 st.kit of 4	£19.86 £16.55
42	MO112691100/0 Available to backorder	Screw L . 35 mm	£1.63 £1.36
43	MO387605001/0 Available to backorder	Steering Pulley	£77.44 £64.53
46	MO112793301/0 Available to backorder	Screw L . 25 mm	£1.55 £1.29
47	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
48	MO1134-3247-05 Available to backorder	Tie Rod	£29.57 £24.64
51	MO112694100/0 Available to backorder	Screw	£4.08 £3.40
52	MO137038009/0 In stock	Bushing	£5.76 £4.80
53	MO387680305/0 Available to backorder	Rim	£111.20 £92.67
54	MO9545-0500-00 Available to backorder	Valve Assy.	£5.34 £4.45
55	MO9545-0117-00 Available to backorder	Tyre 13x5.00-6	£53.50 £44.58
56	MO1134-0341-01 Available to backorder	Washer	£6.64 £5.53
58	MO1134-4344-01 Available to backorder	Hub Cap Black	£9.52 £7.93
59	MO9545-0204-00 Available to backorder	Inner Tube 13 X 5.00-6.2	£16.48 £13.73
