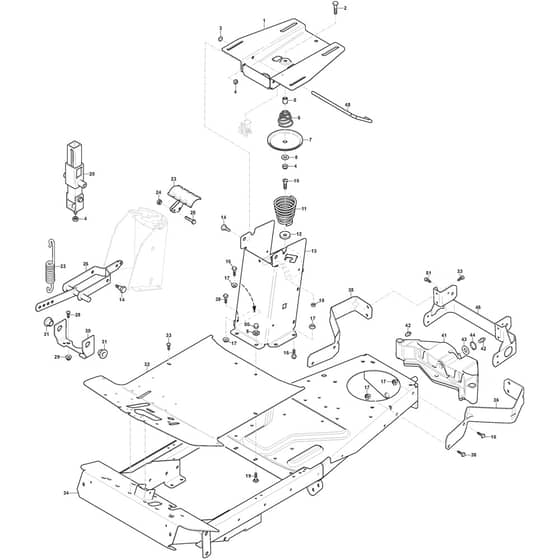

Stiga VILLA 13 HST Parts Diagram

Product Name - VILLA 13 HST

Model Year - 2017-2019

Model Type - V 301

Art.N - 2F2720321/S17

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-5301-01 Available to backorder	Upper Seat Bracket	£109.09 £90.91
2	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
3	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
4	MO112155000/0 In stock	Nut	£1.55 £1.29
5	MO1134-1565-06 Available to backorder	Spacer	£10.98 £9.15
6	MO1134-5302-01 Available to backorder	Spring	£8.52 £7.10
7	MO1134-5299-01 Available to backorder	Push Plate	£17.60 £14.67
8	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
10	MO9924-1235-19 Available to backorder	Screw	£3.79 £3.16
11	MO137430116/0 Available to backorder	Spring	£25.34 £21.12
12	MO137160001/0 Available to backorder	Spacer	£12.38 £10.32
13	MO1134-5296-04 Available to backorder	Seat Bracket (Yellow)	£154.85 £129.04
14	MO1134-0240-00 In stock	Screw	£8.80 £7.33
15	MO112156603/0 Available to backorder	Nut	£1.55 £1.29
16	MO9959-0820-16 In stock	Screw L . 20 mm	£1.55 £1.29
17	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
19	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
20	MO1134-4945-01 Available to backorder	Lift Catch Assy	£118.94 £99.12
22	MO4231-0013-00 In stock	Spring	£8.52 £7.10
23	MO1134-4938-01 Available to backorder	Lift Pedal	£24.01 £20.01
24	MO112292102/0 In stock	Nut	£1.69 £1.41
25	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
26	MO387256053/0 Available to backorder	Lift Fork	£75.31 £62.76
28	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
29	MO9739-1031-22 In stock	Nut	£1.97 £1.64
30	MO1134-4117-01 Available to backorder	Bracket	£30.97 £25.81
31	MO1134-2684-01 Available to backorder	Bearing	£6.76 £5.63
32	MO1134-5293-02 Available to backorder	Floor Plate	£154.86 £129.05
33	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
34	MO387800059/0 Available to backorder	Frame	£773.56 £644.63
35	MO387785215/0 Available to backorder	Attachment-Rh	£40.68 £33.90
36	MO1134-6630-01 Available to backorder	Attachment-Lh	£40.75 £33.96
38	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
41	MO1134-6703-01 Available to backorder	Rear Axle	£429.35 £357.79
42	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
43	MO9699-0088-02 Available to backorder	Washer	£2.12 £1.77
44	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
46	MO387593601/0 Available to backorder	Heat Guard	£96.42 £80.35
48	MO1134-5454-01 Available to backorder	Catch	£10.84 £9.03
50	MO9757-0821-02 Available to backorder	Nut	£2.40 £2.00
51	MO9943-0516-16 In stock	Torx Thread Forming Screw M5X16 4.8 Wz	£1.22 £1.02
