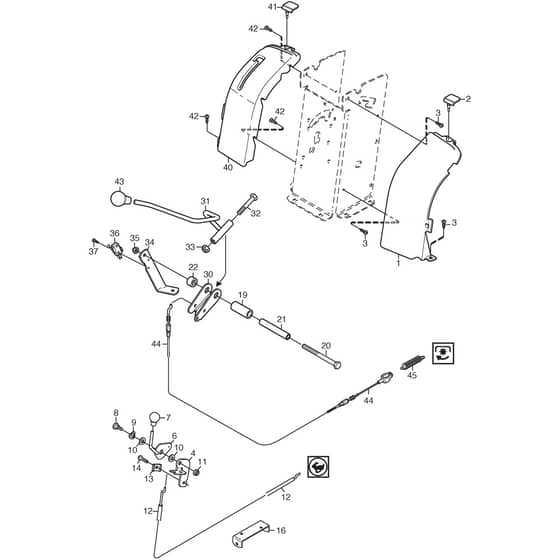

VILLA 13 HST - 2015 - 13-2729-75 - Stiga Front Mower Hand Controls Diagram

Description

Stiga VILLA 13 HST Parts Diagram

Product Name - VILLA 13 HST

Model Year - 2015

Model Type - V 301

Art.N - 13-2729-75

Engine Model - B&S Power Built, Series 3115

Be the first to review this product

0 product questions

	Part No.	Details
1	MO337120152/0 Available to backorder	Dashboard-Lh (Grey)	£66.16 £55.13
2	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
3	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
4	MO1134-5464-01 Available to backorder	Bracket	£27.31 £22.76
6	MO1134-5465-02 Available to backorder	Throttle Control Lever	£17.17 £14.31
7	MO1134-4078-01 Available to backorder	Knob	£5.48 £4.57
8	MO1134-0240-00 In stock	Screw	£8.80 £7.33
9	MO9694-0001-00 Available to backorder	Washer	£1.55 £1.29
10	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
12	MO1134-4197-03 Available to backorder	Throttle Cable	£23.58 £19.65
13	MO9500-9991-00 Available to backorder	Wire Clamp	£7.03 £5.86
14	MO9943-0516-16 In stock	Screw	£1.22 £1.02
16	MO1134-6370-01 Available to backorder	Wire Guide	£10.20 £8.50
19	MO1134-5508-01 Available to backorder	Control Sleeve	£17.39 £14.49
20	MO9997-0812-02 Available to backorder	Screw	£1.69 £1.41
21	MO1134-5274-02 Available to backorder	Spacer	£9.37 £7.81
22	MO1134-3047-01 Available to backorder	Spacer	£7.74 £6.45
30	MO1134-5271-01 Available to backorder	Control Bracket	£35.18 £29.32
31	MO1134-5276-01 Available to backorder	Control Lever	£42.23 £35.19
32	MO112692080/0 Available to backorder	Screw	£1.55 £1.29
33	MO112155000/0 In stock	Nut	£1.55 £1.29
34	MO1134-5356-01 Available to backorder	Strut	£19.99 £16.66
36	MO9400-0360-01 Available to backorder	Microswitch	£8.17 £6.81
37	MO9840-7716-16 Available to backorder	Screw	£1.97 £1.64
40	MO337120153/0 Available to backorder	Dashboard Hst-Rh (Grey)	£65.51 £54.59
43	MO1134-2551-01 Available to backorder	Knob	£11.18 £9.32
44	MO1134-3573-06 Available to backorder	Pto Cable	£32.38 £26.98
45	MO1134-1242-02 Available to backorder	Spring	£10.20 £8.50
