Stiga VILLA 13 HST Parts Diagram

Product Name - VILLA 13 HST

Model Year - 2015

Model Type - V 301

Art.N - 13-2729-75

Engine Model - B&S Power Built, Series 3115

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118120068/0 In stock	Battery	£113.48 £94.57
4	MO1134-4610-01 Available to backorder	Switch Bracket	£23.65 £19.71
5	MO1134-3399-02 Available to backorder	Switch	£43.64 £36.37
6	MO9852-8013-16 Available to backorder	Screw	£2.12 £1.77
8	MO1134-2042-02 Available to backorder	Battery Cable L . 350 mm	£25.84 £21.53
9	MO112728697/0 In stock	Screw	£1.55 £1.29
10	MO112155000/0 In stock	Nut	£1.55 £1.29
11	MO112361005/0 Available to backorder	Nut 1.4 UNC	£4.22 £3.52
12	MO133320027/0 Available to backorder	Cable	£1.55 £1.29
15	MO9943-0516-16 In stock	Screw	£1.22 £1.02
22	MO112523040/0 In stock	Washer	£1.49 £1.24
26	MO118736112/0 In stock	Solenoid incl. 27	£38.00 £31.67
27	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
28	MO1134-0234-02 Available to backorder	Battery Cable (+) L . 395 mm	£24.42 £20.35
29	MO1134-2310-01 Available to backorder	Guard Cap (+)	£8.87 £7.39
30	MO1134-4702-02 Available to backorder	Cable L . 480 mm	£22.69 £18.91
32	MO187040304/0 Available to backorder	Cable Harness incl. 33	£126.97 £105.81
32	MO187040315/0 Available to backorder	Cable Harness incl. 33	£144.96 £120.80
33	MO1134-3496-06 Available to backorder	Fuse (20A) Yellow 20A	£1.40 £1.17
39	MO1134-6348-01 Available to backorder	Cable Harness Optional. not present for all machine	£30.52 £25.43
41	MO1134-4093-01 Available to backorder	Ignition Switch Optional. not present for all machine	£64.75 £53.96
42	MO1134-4749-01 Available to backorder	Nut Optional. not present for all machine	£5.42 £4.52

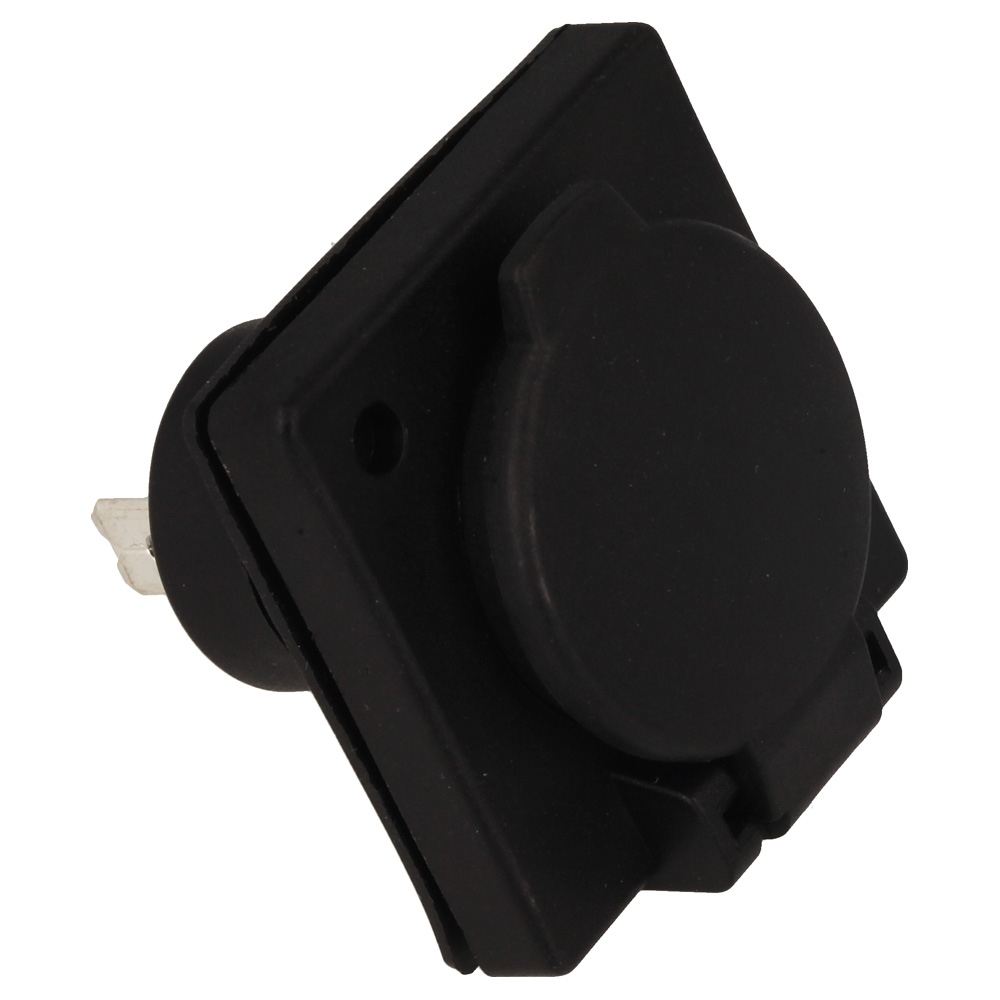

43	MO387149302/0 In stock	Female Connector Optional. not present for all machine	£9.76 £8.13
45	MO1134-4052-01 Available to backorder	Washer Optional. not present for all machine	£8.87 £7.39
46	MO9840-7716-16 Available to backorder	Screw Optional. not present for all machine	£1.97 £1.64
48	MO9400-0282-01 In stock	Switch Optional. not present for all machine	£75.31 £62.76

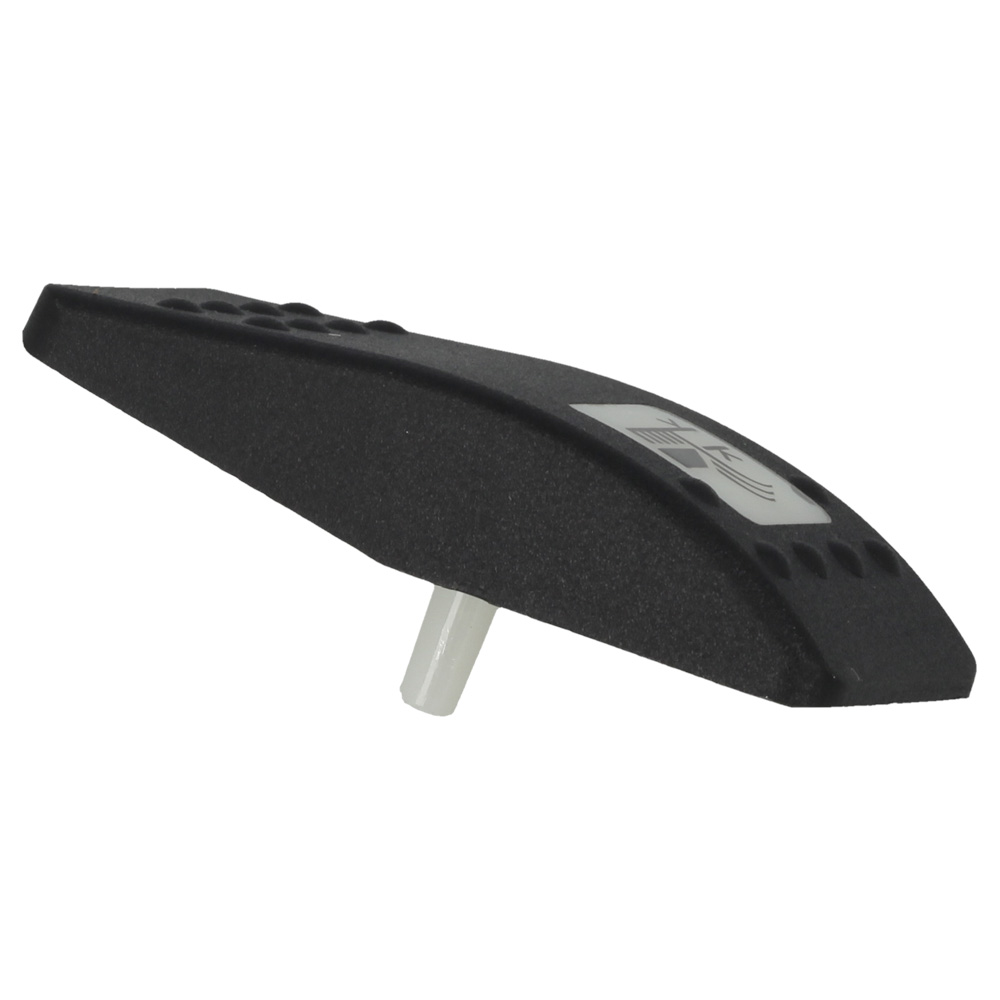

49	MO9400-0280-03 Available to backorder	Switch Cover [Height Adjust]	£17.87 £14.89
