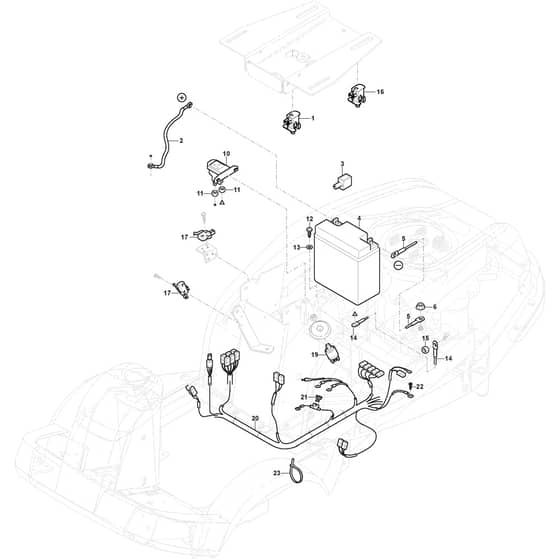

VILLA 13 - 2018-2021 - 2F2700321/S17 - Stiga Front Mower Electric Parts Diagram

Description

Stiga VILLA 13 Parts Diagram

Product Name - VILLA 13

Model Year - 2018-2021

Model Type - V 301

Art.N - 2F2700321/S17

Engine Model - PowerBuilt 3130 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-3156-02 Available to backorder	Switch	£46.46 £38.72
2	MO1134-0234-02 Available to backorder	Battery Cable (+) L . 395 mm	£24.42 £20.35
3	MO1134-2310-01 Available to backorder	Guard Cap (+)	£8.87 £7.39
4	MO118120068/0 In stock	Battery 12V 18Ah	£113.48 £94.57
5	MO1134-2042-02 Available to backorder	Battery Cable L . 350 mm	£25.84 £21.53
6	MO112155000/0 In stock	Nut	£1.55 £1.29
10	MO118736112/0 In stock	Solenoid incl. 11	£38.00 £31.67
11	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
12	MO112728697/0 In stock	Screw	£1.55 £1.29
13	MO112523040/0 In stock	Washer	£1.49 £1.24
14	MO1134-4702-02 Available to backorder	Cable L . 480 mm	£22.69 £18.91
15	MO112361005/0 Available to backorder	Nut 1.4 UNC	£4.22 £3.52
16	MO1134-3156-01 Available to backorder	Switch Microswitch N.O.	£43.64 £36.37
17	MO9400-0360-01 Available to backorder	Microswitch	£8.17 £6.81
19	MO1134-4093-01 Available to backorder	Ignition Switch	£64.75 £53.96
21	MO1134-3496-06 Available to backorder	Fuse (20A) Yellow 20A	£1.40 £1.17
22	MO9943-0516-16 In stock	Screw	£1.22 £1.02
23	MO133320027/0 Available to backorder	Fastpoint Band Art. 0387.Aa01 L.290	£1.55 £1.29
